RADIATOR
ER500C1 ER5 2001 CANADA

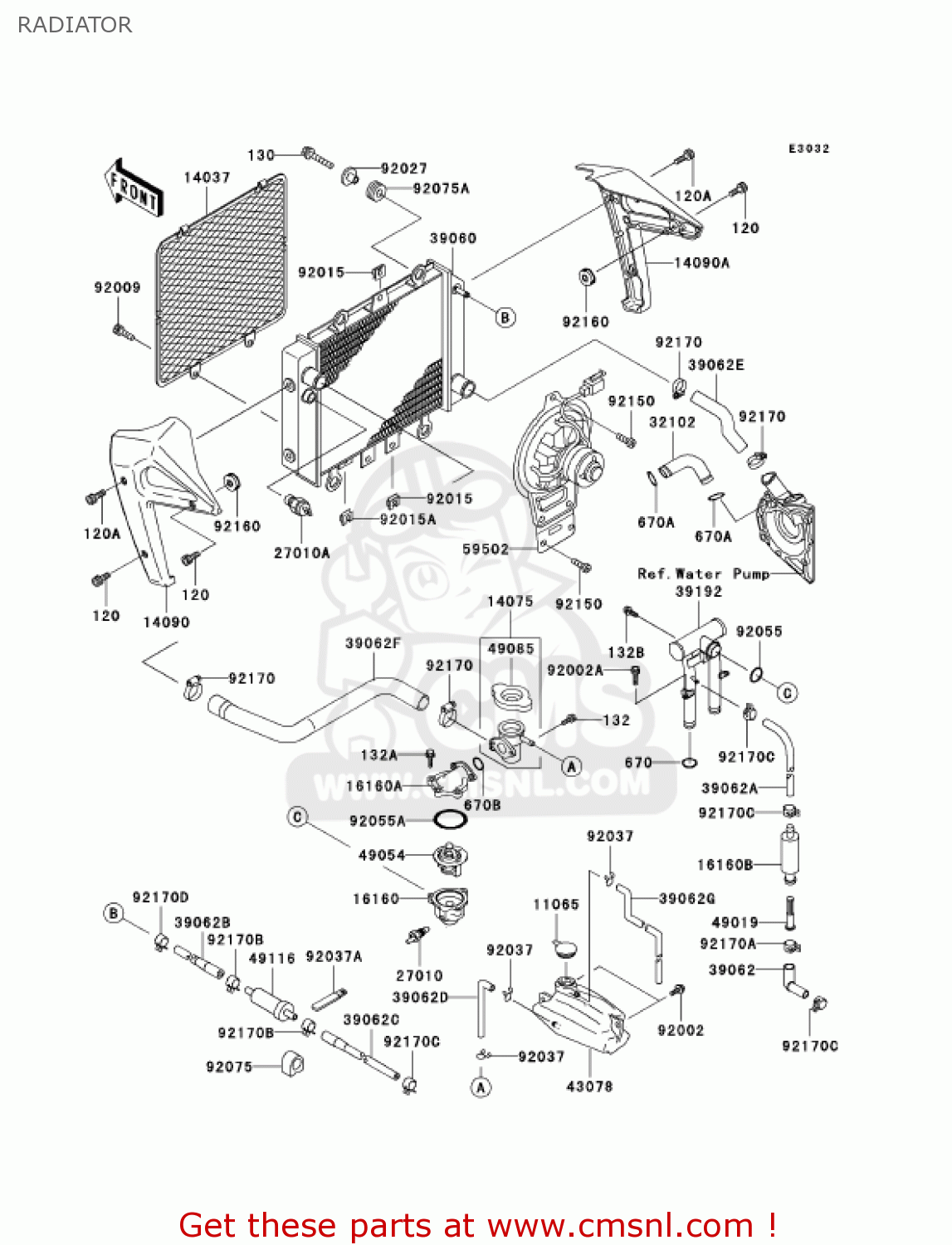

Radiator diagram ER500C1 ER5 2001 CANADA
RADIATOR ER500C1 ER5 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
11065
110651093
ref: 11065
CAP,COOLANT
€ 2.50
14037
140371232
ref: 14037
SCREEN,RADIATOR
€ 66.50
14075
140751085
ref: 14075
CAP-ASSY,RADIATOR
€ 120.00
14090
140901748
ref: 14090
COVER,RADIATOR,LH
€ 57.00
14090A
140901749
ref: 14090A
COVER,RADIATOR,RH
€ 55.50
16160
161601092
ref: 16160
BODY,THERMOSTAT,LWR
€ 45.50
16160A
161601113
ref: 16160A
BODY,THERMOSTAT,UPP
€ 43.50
16160B
161601359
ref: 16160B
BODY
€ 6.50
27010
270101239
ref: 27010
SWITCH,SENSOR WATER
€ 104.50
27010A
270101304
ref: 27010A
SWITCH,THERMOSTAT
€ 63.00
32102
321021014
ref: 32102
PIPE
€ 29.50
39060
390601148
ref: 39060
RADIATOR
€ 690.50
39062
390621314
ref: 39062
HOSE-COOLING
€ 7.50
39062A
390621345
ref: 39062A
HOSE-COOLING
€ 5.50
39062B
390621378
ref: 39062B
HOSE-COOLING,CHECK VA
€ 4.50
39062C
390621468
ref: 39062C
HOSE-COOLING,VALVE-PU
€ 4.50
39062D
390621873
ref: 39062D
HOSE-COOLING
€ 19.50
39062E
390621884
ref: 39062E
HOSE-COOLING,RADIATOR
€ 16.50
39062F
390621885
ref: 39062F
HOSE-COOLING
€ 30.50
39062G
390621889
ref: 39062G
HOSE-COOLING
€ 19.00
39192
391921111
ref: 39192
PIPE-WATER
€ 25.50
43078
430781177
ref: 43078
RESERVOIR
€ 50.50
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49054
490541059
ref: 49054
THERMOSTAT
€ 41.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
59502
595021122
ref: 59502
FAN-ASSY
€ 483.00
92002
920021188
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021796
ref: 92002A
BOLT,SOCKET,6X12
€ 3.00
92009
920091480
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371993
ref: 92037A
CLAMP
€ 3.50
92055
920551081
ref: 92055
RING-O,FORK TOP
€ 3.00
92055A
920551279
ref: 92055A
RING-O,45MM
€ 4.50
92075
920751728
ref: 92075
DAMPER,CARRIER
€ 5.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92150
921501186
ref: 92150
BOLT
€ 3.00
120
120R0614
ref: 120
BOLT-SOCKET
€ 2.50
120A
120R0620
ref: 120A
BOLT-SOCKET,6X20
€ 2.50
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
670B
670B2020
ref: 670B
O RING,20MM
€ 1.00
92160
921601785
ref: 92160
DAMPER
€ 7.00
92170
921701286
ref: 92170
CLAMP
€ 13.00
92170A
921701491
ref: 92170A
CLAMP
€ 5.00
92170B
921701492
ref: 92170B
CLAMP
€ 3.00
92170C
921701493
ref: 92170C
CLAMP
€ 3.00
92170D
921702043
ref: 92170D
CLAMP
€ 1.00
