GEAR CHANGE MECHANISM
ER500C1 ER5 2001 CANADA

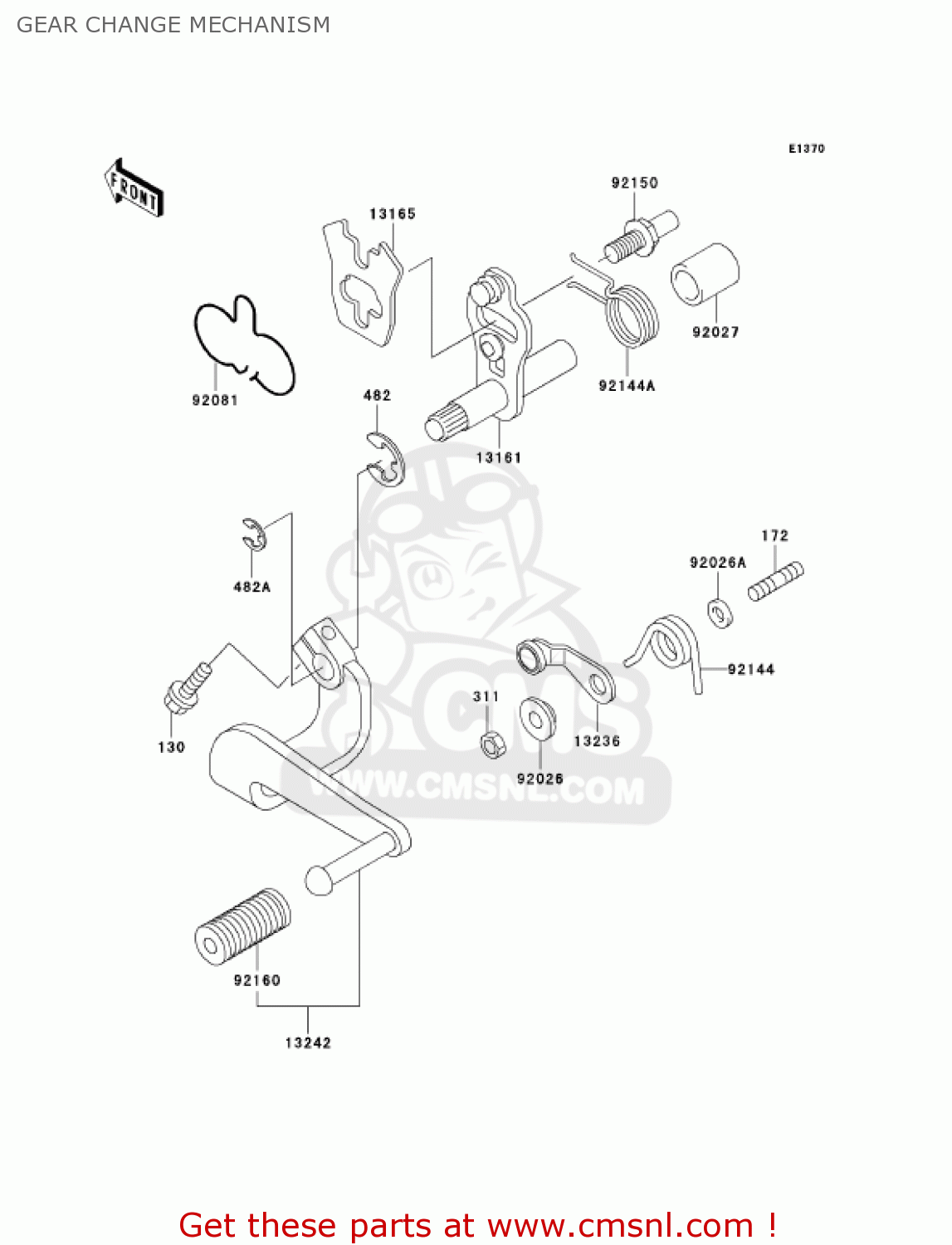

Gear change mechanism diagram ER500C1 ER5 2001 CANADA
GEAR CHANGE MECHANISM ER500C1 ER5 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
482A
482L7000
ref: 482A
CIRCLIP-TYPE-E
€ 2.50
13161
131611235
ref: 13161
LEVER-COMP-CHANGE SHA
€ 47.50
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361216
ref: 13236
LEVER-COMP,GEAR POSIT
€ 9.00
13242
132421340
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 35.50
92026
920261217
ref: 92026
SPACER
€ 3.50
92026A
920261484
ref: 92026A
SPACER,6.3X12X2.0
€ 1.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
€ 3.50
92081
920811785
ref: 92081
SPRING,CHANGE LEVER
€ 6.00
92144
921441968
ref: 92144
SPRING,POSITION
€ 5.50
92144A
921441983
ref: 92144A
SPRING,RETURN
€ 5.50
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
