HEADLIGHT(S)
ER500C1 ER5 2001 CANADA

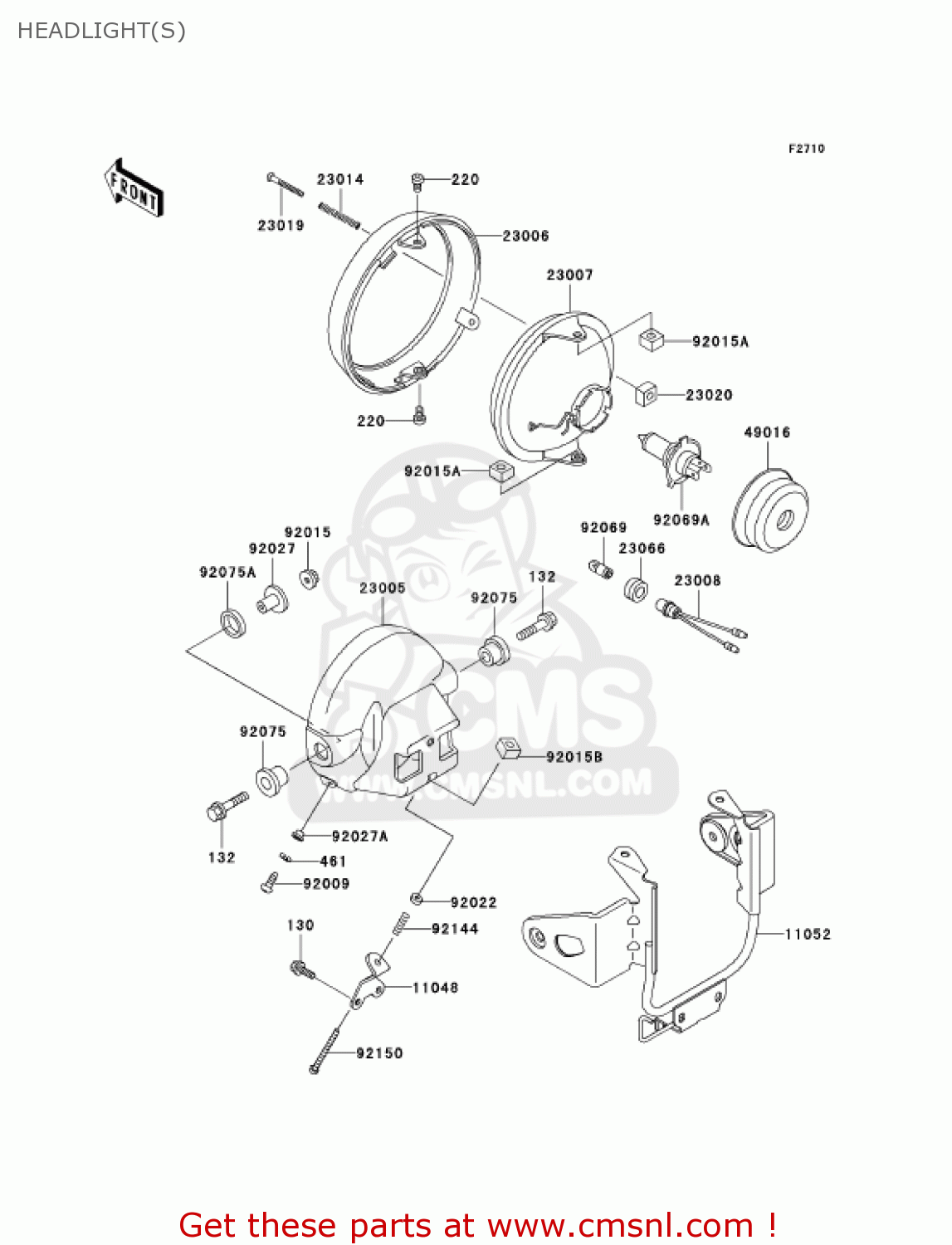

Headlight(s) diagram ER500C1 ER5 2001 CANADA
HEADLIGHT(S) ER500C1 ER5 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
132
132E0840
ref: 132
BOLT-FLANGED-SMALL
€ 4.00
220
220D0510
ref: 220
SCREW-PAN-CROS
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
11048
110481816
ref: 11048
BRACKET,HEAD LAMP BOD
€ 5.00
11052
110521364
ref: 11052
BRACKET,HEAD LAMP
€ 77.50
23005
23005110221
ref: 23005
BODY-COMP-HEAD LAMP,F
€ 78.50
23006
230061020
ref: 23006
RIM-LAMP,CR PLATED
€ 34.50
23007
230071250
ref: 23007
LENS-COMP,HEAD LAMP
€ 136.00
23008
230081616
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
€ 2.50
23019
23019021
ref: 23019
SCREW-FORCUS ADJUST
€ 3.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92009
920091693
ref: 92009
SCREW,5X16
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92015B
920151799
ref: 92015B
NUT,5MM,FOCUS ADJUST
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
€ 2.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92144
921441417
ref: 92144
SPRING
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
€ 4.50
