CHASSIS ELECTRICAL EQUIPMENT
ER500C1 ER5 2001 CANADA

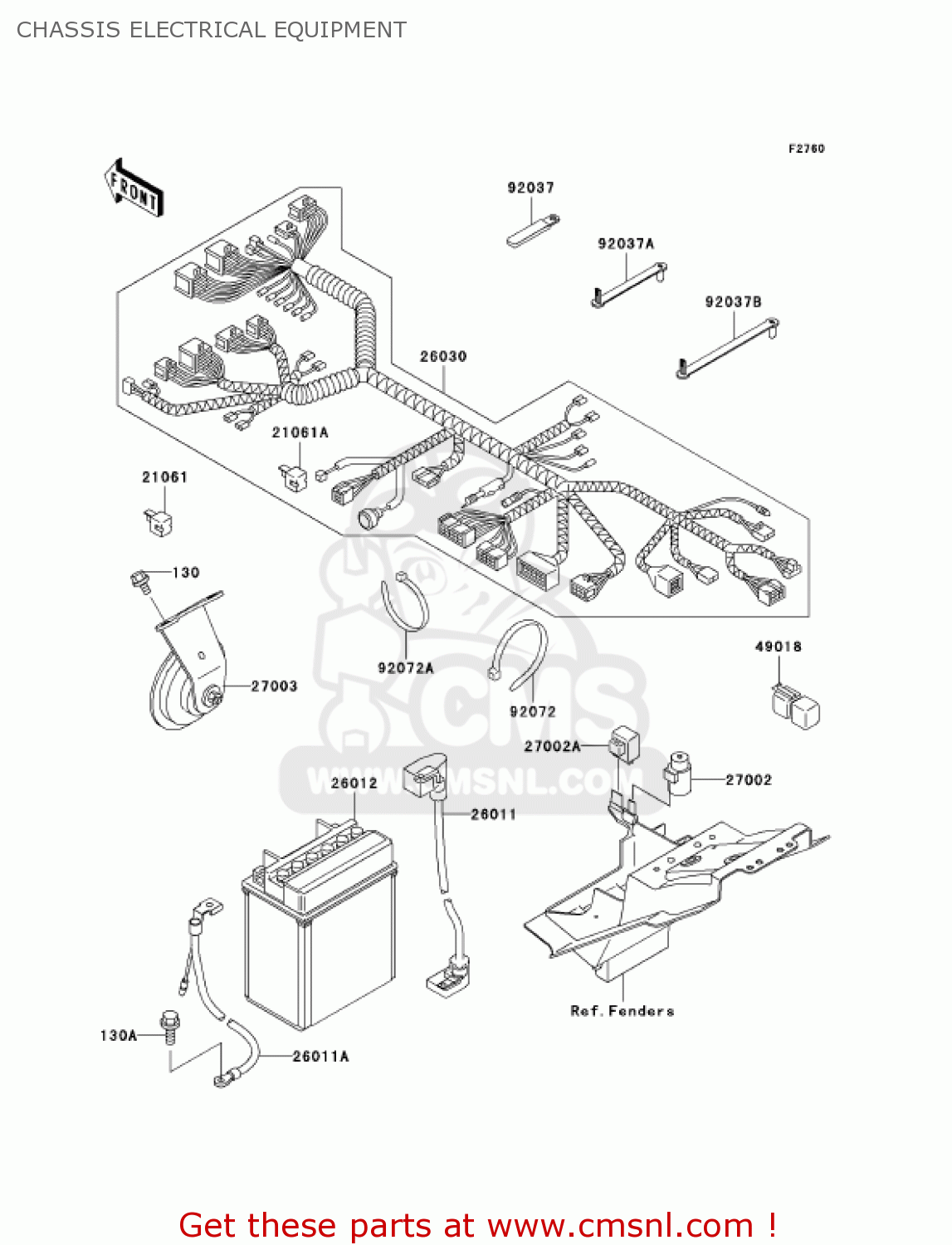

Chassis electrical equipment diagram ER500C1 ER5 2001 CANADA
CHASSIS ELECTRICAL EQUIPMENT ER500C1 ER5 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
21061A
210611059
ref: 21061A
RECTIFIER
€ 29.50
26011
260111783
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 29.00
26011A
260111784
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 18.50
26012
260121330
ref: 26012
BATTERY,YTX12BS,12V10
€ 120.50
26030
260301817
ref: 26030
HARNESS,MAIN
€ 342.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
€ 49.50
27003
270031405
ref: 27003
HORN
€ 55.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92037B
920371903
ref: 92037B
CLAMP
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92072A
920721293
ref: 92072A
BAND
€ 6.50
