OIL PUMP
ER250B1 SCORPION 1983 USA

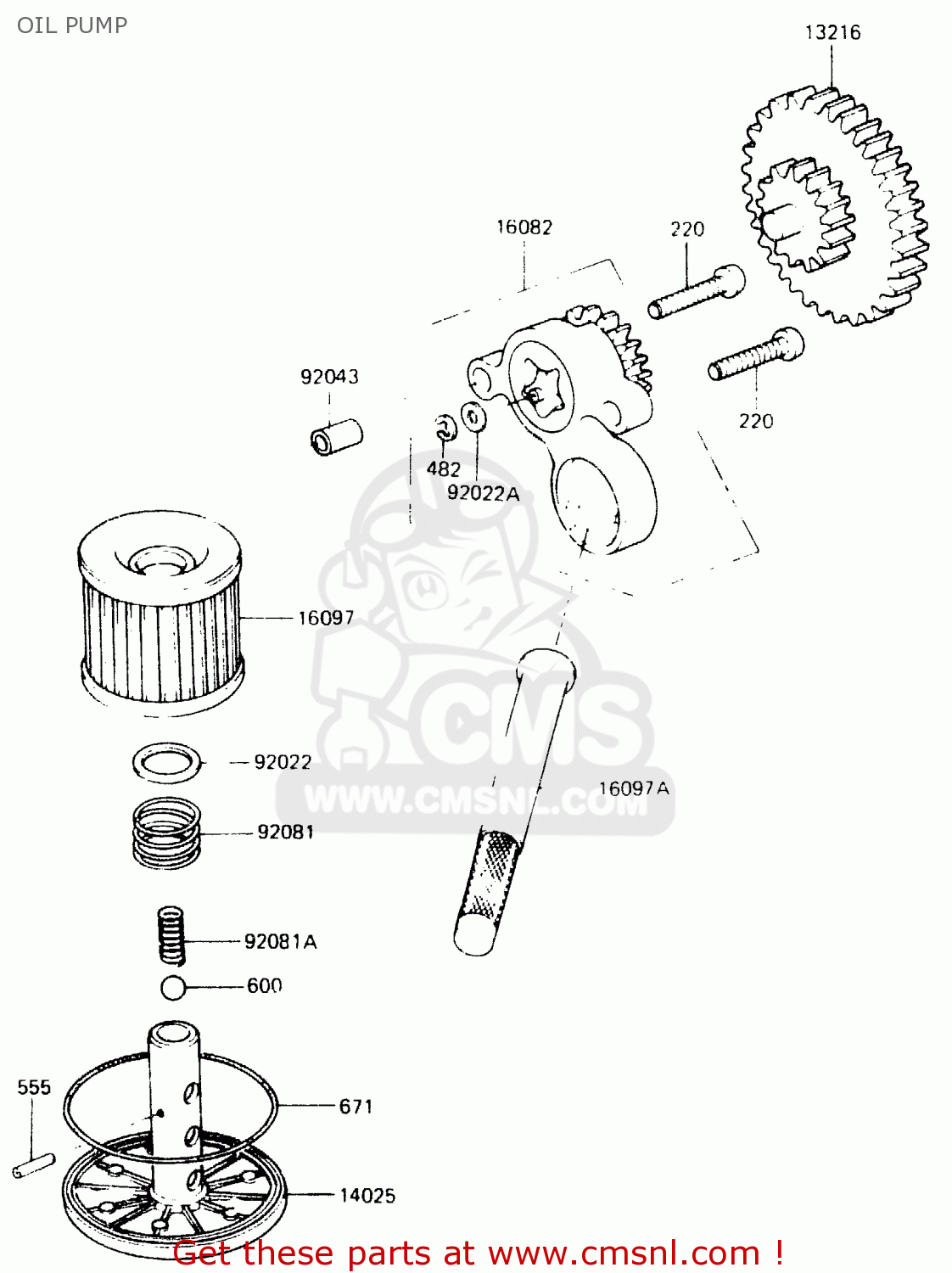

Oil pump diagram ER250B1 SCORPION 1983 USA
OIL PUMP ER250B1 SCORPION 1983 USA
×
prices are in EUR
ref
part #
description
quantity
13216
132161031
ref: 13216
GEAR-ASSY,OIL PUMP
€ 39.50
14025
140251680
ref: 14025
COVER,OIL FILTER
€ 16.00
16082
160821007
ref: 16082
PUMP-ASSY-OIL
€ 121.50
16097
160971002
ref: 16097
FILTER ASSY,OIL
€ 5.50
16097A
160971003
ref: 16097A
FILTER ASSY,OIL,PRIMR
€ 5.50
92022
41065004
ref: 92022
WASHER,19.5X26X0.8
€ 2.00
92022A
920221146
ref: 92022A
WASHER,5.5X9X0.6T
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
220
220B0630
ref: 220
SCREW-PAN HEAD,6X30
€ 2.50
482
482K4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
555
555A0216
ref: 555
PIN-SPRING,2X14
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
671
671B2565
ref: 671
O RING,65MM
€ 6.00
