FENDER
ER250B1 SCORPION 1983 USA

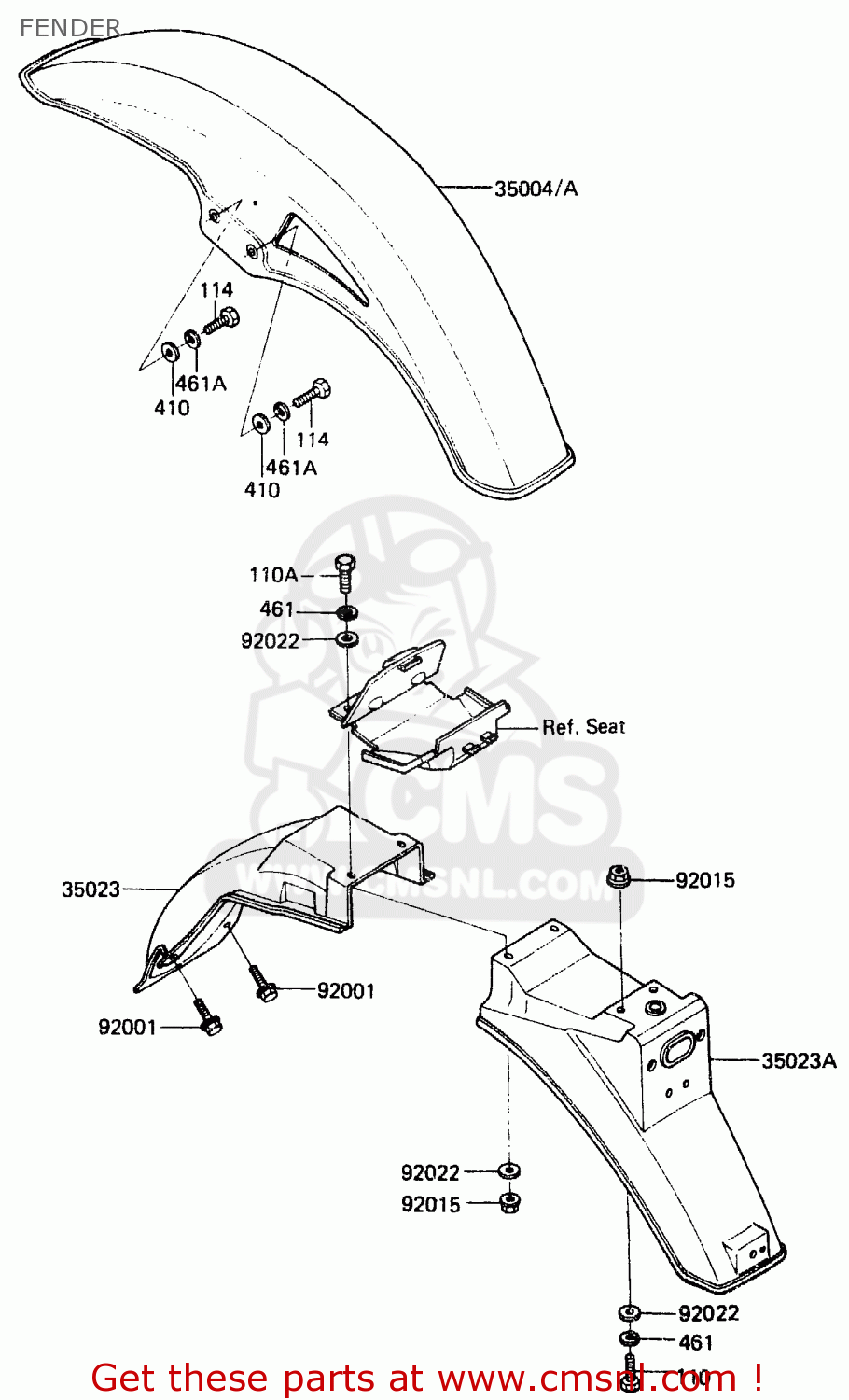

Fender diagram ER250B1 SCORPION 1983 USA
FENDER ER250B1 SCORPION 1983 USA
×
prices are in EUR
ref
part #
description
quantity
35004
350041096F2
ref: 35004
FENDER-FRONT,G.SILVER
€ 106.50
35004A
350041096H3
ref: 35004A
FENDER-FRONT,C.W.RED
€ 63.00
35023
350231053
ref: 35023
FENDER-REAR,FR
€ 68.00
35023A
3502310596Z
ref: 35023A
FENDER-REAR,RR,BLACK
€ 64.50
92001
920011847
ref: 92001
BOLT,6X14,BLACK
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
110
110B0616
ref: 110
BOLT-HEX HEAD,6X16
€ 1.00
110A
110B0625
ref: 110A
BOLT-HEX HEAD,6X25
€ 4.00
114
114B0818
ref: 114
BOLT,HEX HEAD,8X18
€ 2.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
