METER
ER250B1 SCORPION 1983 USA

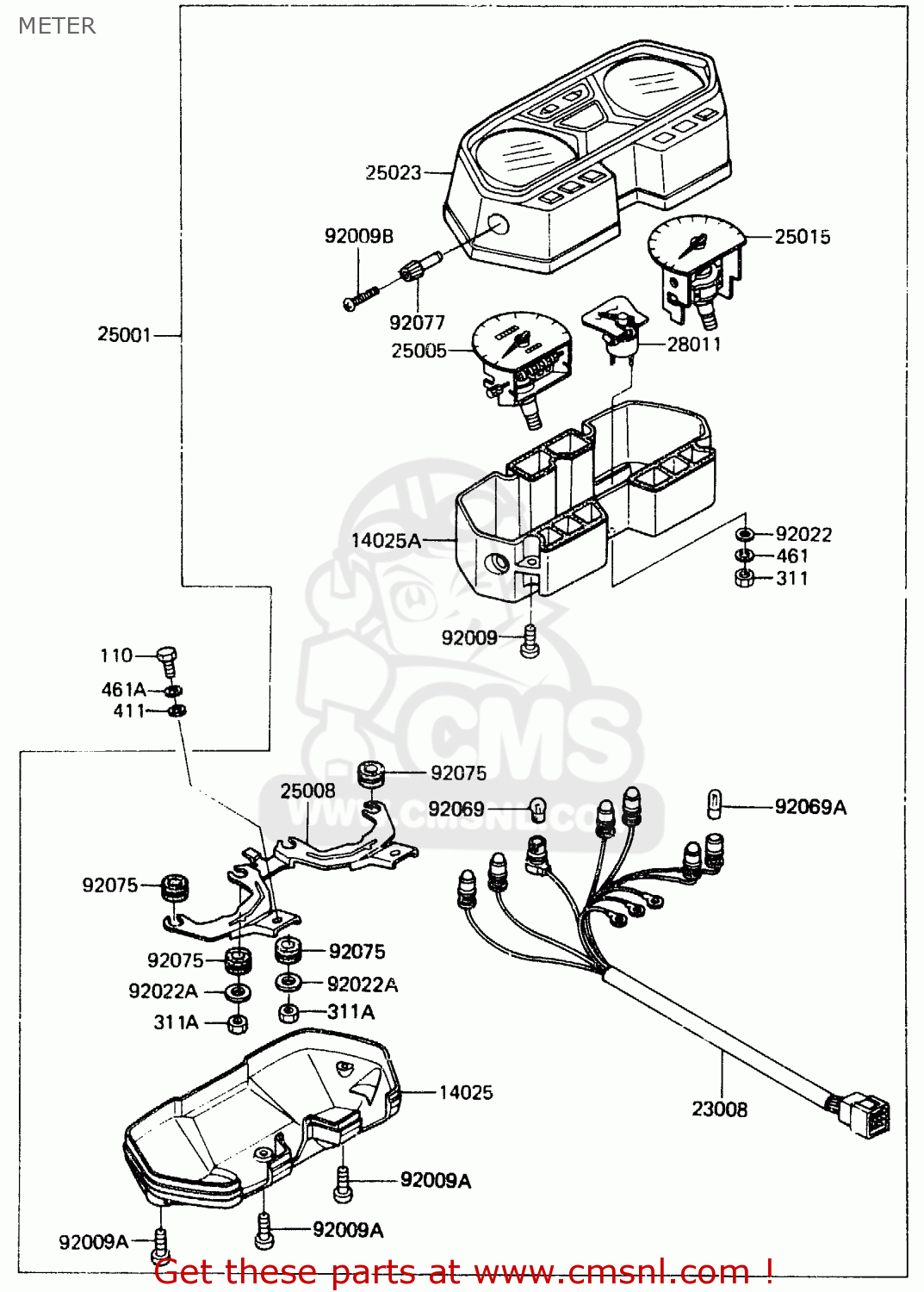

Meter diagram ER250B1 SCORPION 1983 USA
METER ER250B1 SCORPION 1983 USA
×
prices are in EUR
ref
part #
description
quantity
14025
140251564
ref: 14025
COVER,METER CASE LWR
€ 25.00
14025A
140251604
ref: 14025A
COVER,METER CASE
€ 79.50
23008
230081186
ref: 23008
SOCKET-ASSY,METER
€ 60.50
25001
250011437
ref: 25001
METER-ASSY,MPH
€ 643.50
25005
250051209
ref: 25005
SPEEDOMETER,MPH
€ 261.50
25008
250081052
ref: 25008
BRACKET-METER
€ 32.00
25015
250151144
ref: 25015
TACHOMETER,(X1000R/MI
€ 186.50
25023
250231054
ref: 25023
COVER-METER CASE
€ 59.50
28011
280111034
ref: 28011
METER,FUEL
€ 56.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091164
ref: 92009A
SCREW,TAPPING,3X16
€ 2.50
92009B
920091172
ref: 92009B
SCREW,2X6,BLACK
€ 2.00
92022
920221374
ref: 92022
WASHER,3MM
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
€ 1.50
92069
92069017
ref: 92069
BULB 12V 1.5W
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92077
920771015
ref: 92077
KNOB,METER
€ 6.00
110
110B0614
ref: 110
BOLT-HEX HEAD,6X14
€ 2.50
311
311B0300A
ref: 311
NUT,3M/M
€ 0.50
311A
311B0500A
ref: 311A
NUT,5MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
