CRANKCASE BOLT PATTERN

ER250B1 SCORPION 1983 USA

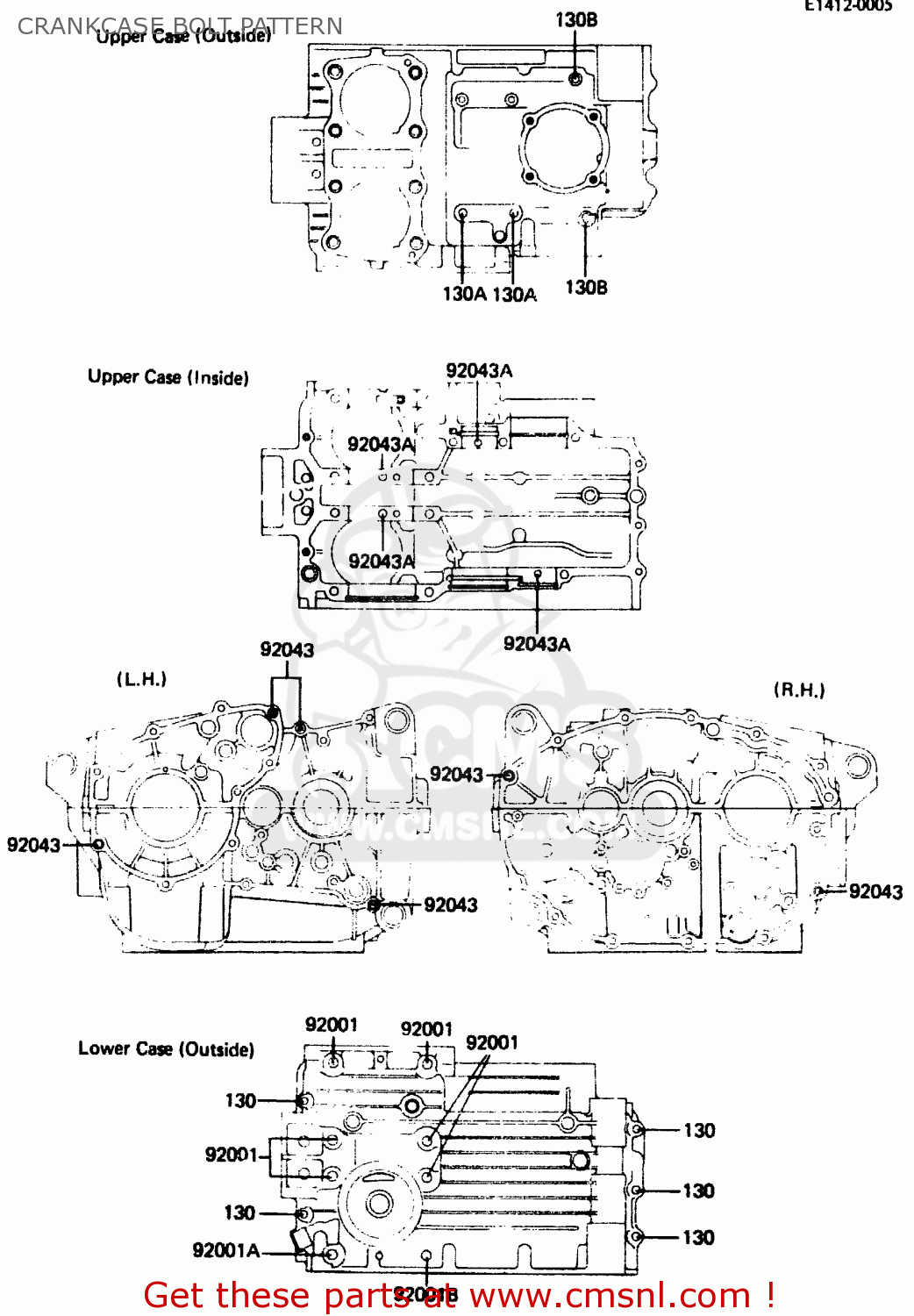

Crankcase bolt pattern diagram ER250B1 SCORPION 1983 USA

CRANKCASE BOLT PATTERN ER250B1 SCORPION 1983 USA

CRANKCASE BOLT PATTERN ER250B1 SCORPION 1983 USA

prices are in EUR

ref

part #

description

quantity

92001

920011480
ref: 92001

BOLT,8X90

€ 5.50

92001A

920011481
ref: 92001A

BOLT,8X115

€ 8.00

92001B

920011482
ref: 92001B

BOLT,8X140

€ 6.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

92042016
ref: 92043A

PIN,DOWEL,6X16

€ 3.50

130

130G0635
ref: 130

BOLT, FLANGED, 6X35

€ 0.50

130A

130G0655
ref: 130A

BOLT,FLANGED,6X55

€ 3.00

130B

130G0690
ref: 130B

BOLT,FLANGED,6X90

€ 1.00
