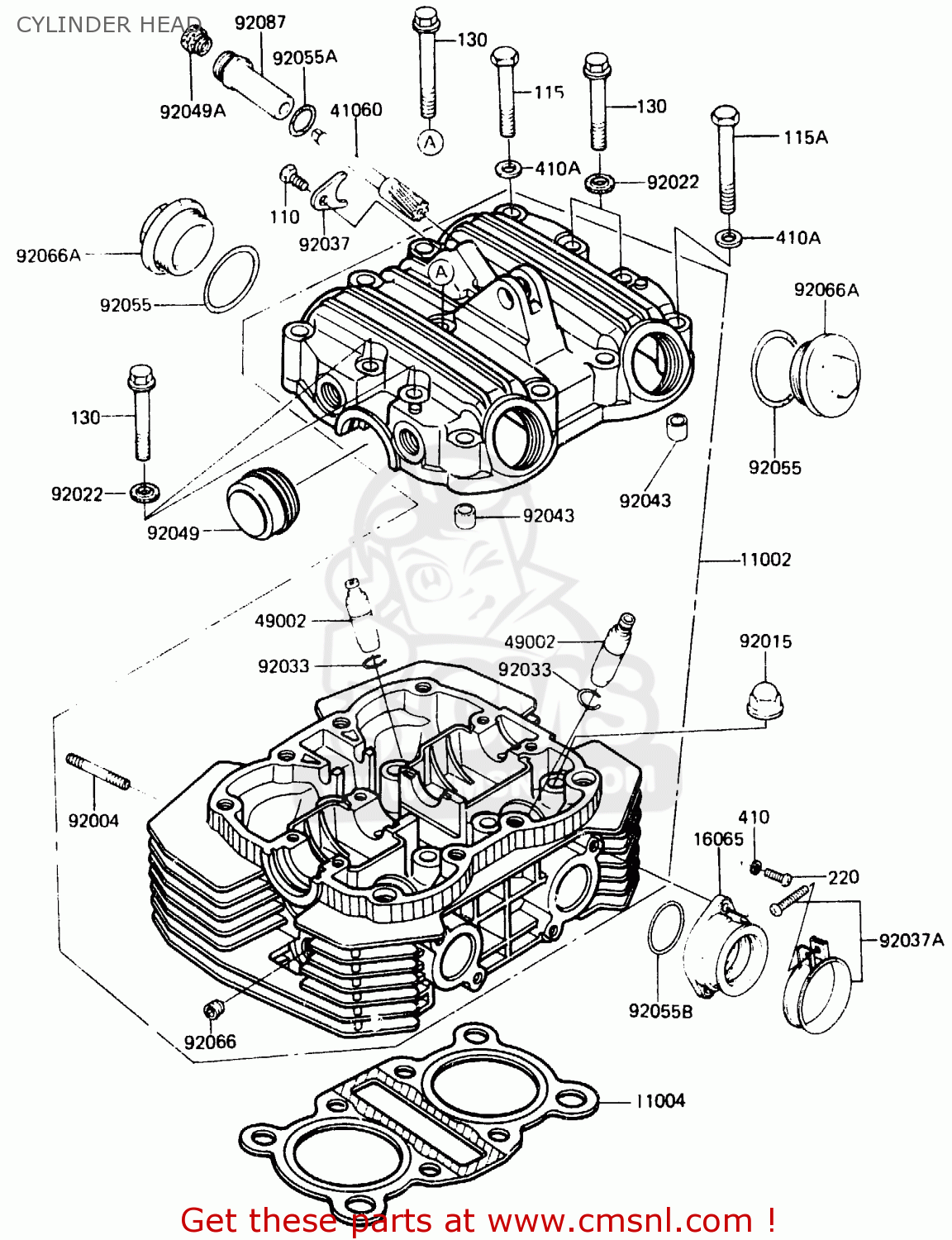

CYLINDER HEAD

ref

part #

description

quantity

11002

110021127
ref: 11002

HEAD-ASSY-CYLINDER,F.

€ 594.50

11004

110041009
ref: 11004

GASKET,HEAD (MCA)

€ 28.00

16065

160651069
ref: 16065

HOLDER-CARBURETOR

€ 30.00

41060

410601020
ref: 41060

GEAR-METER,SCREW

€ 16.00

49002

490021021
ref: 49002

GUIDE-VALVE

€ 25.50

92004

920041069
ref: 92004

STUD,8X30

€ 4.50

92015

920151151
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

920221461
ref: 92022

WASHER,SEAL,6.3X13X1.

€ 1.00

92033

92036023
ref: 92033

CIRCLIP,VALVE GUIDE

€ 0.50

92037

920371030
ref: 92037

CLAMP,METER GEAR

€ 2.00

92037A

920371304
ref: 92037A

CLAMP,ID=53,BLACK

€ 7.00

92043

92042031
ref: 92043

PIN,DOWEL,12X14

€ 4.50

92049

920491152
ref: 92049

SEAL-OIL,PLUG

€ 8.50

92049A

92050075
ref: 92049A

OIL SEAL,TACHOMETER

€ 7.50

92055

920551005
ref: 92055

RING-O,35.8X3.0

€ 3.50

92055A

920551021
ref: 92055A

RING-O,13X1.9

€ 4.50

92055B

920551155
ref: 92055B

RING-O,33.2MM

€ 10.00

92066

92066059
ref: 92066

PLUG,PT1/8X7

€ 3.00

92066A

920661151
ref: 92066A

PLUG,M36X1.5

€ 9.50

92087

920871001
ref: 92087

BUSHING-METER GEAR

€ 18.00

110

110B0614
ref: 110

BOLT-HEX HEAD,6X14

€ 2.50

115

115J0850
ref: 115

BOLT-SMALL-UPSET,8X50

€ 2.50

115A

115J0860
ref: 115A

BOLT-SMALL-UPSET,8X60

€ 2.50

130

130J0650
ref: 130

BOLT-FLANGED,6X50,BLA

€ 2.50

220

220C0618
ref: 220

SCREW-PAN-CROS,6X18,B

€ 2.00

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

410A

410F0800
ref: 410A

WASHER-PLANE-SMALL,8M

€ 3.00
