OIL PUMP

EN450A5 LTD450 1989 EUROPE UK AR FG IT NR / LIQUID COOLED

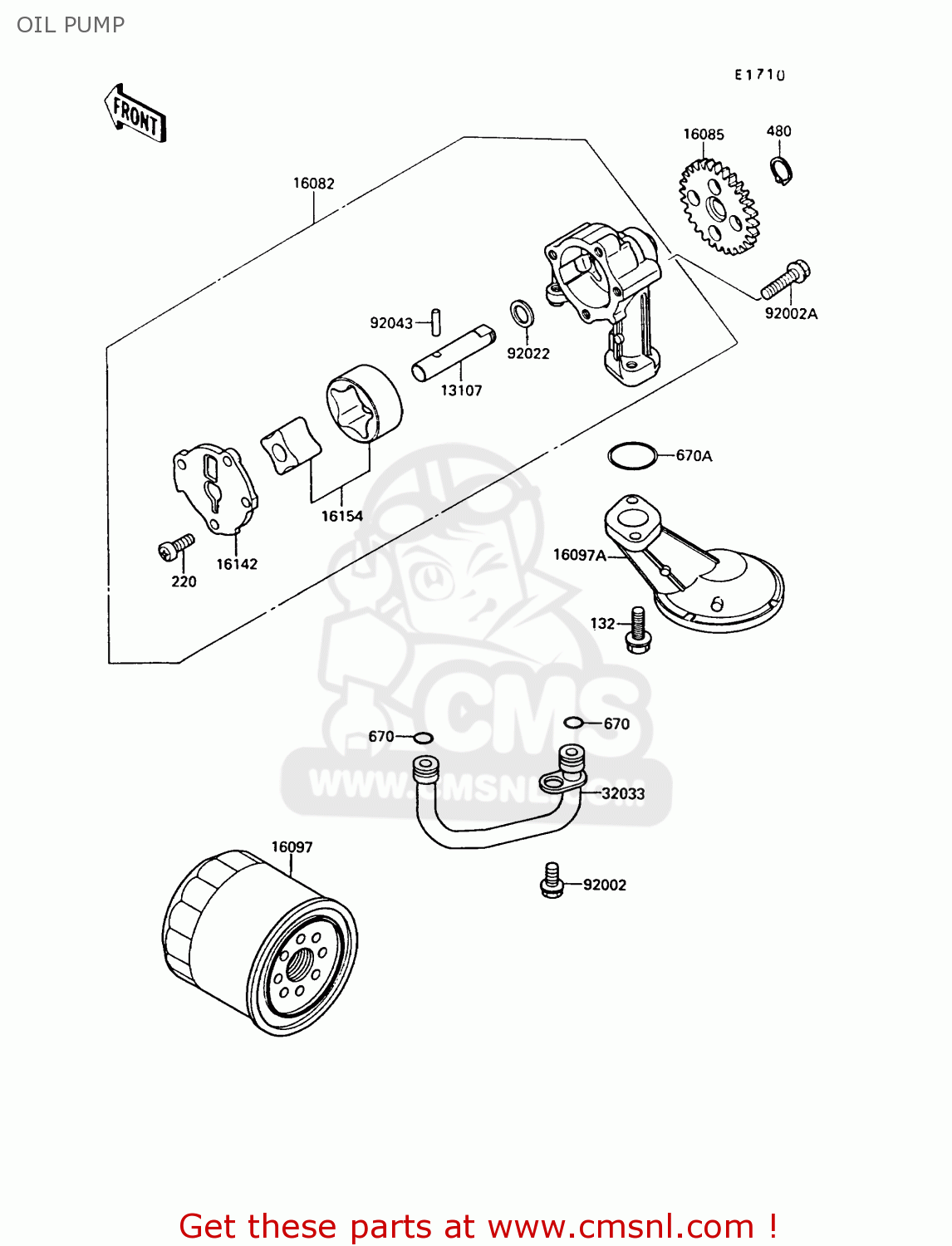

Oil pump diagram EN450A5 LTD450 1989 EUROPE UK AR FG IT NR / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00

670A

670D2022
ref: 670A

O-RING, 22M/M

€ 6.50

13107

131071202
ref: 13107

SHAFT,OIL PUMP

€ 16.00

16082

160821085
ref: 16082

PUMP-ASSY-OIL

€ 160.50

16085

160851143
ref: 16085

GEAR,OIL PUMP

€ 99.00

16097

160971054
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16097A

160971056
ref: 16097A

FILTER-ASSY-OIL

€ 13.00

16142

161421077
ref: 16142

COVER-PUMP,OIL

€ 11.00

16154

161541066
ref: 16154

ROTOR-PUMP,OIL

€ 39.00

32033

320331540
ref: 32033

PIPE

€ 38.00

92002

920021572
ref: 92002

BOLT,6X12

€ 2.00

92002A

920021609
ref: 92002A

BOLT

€ 3.00

92022

92022311
ref: 92022

WASHER,PLAIN

€ 2.50

92043

920431054
ref: 92043

PIN,4X15.8

€ 3.00
