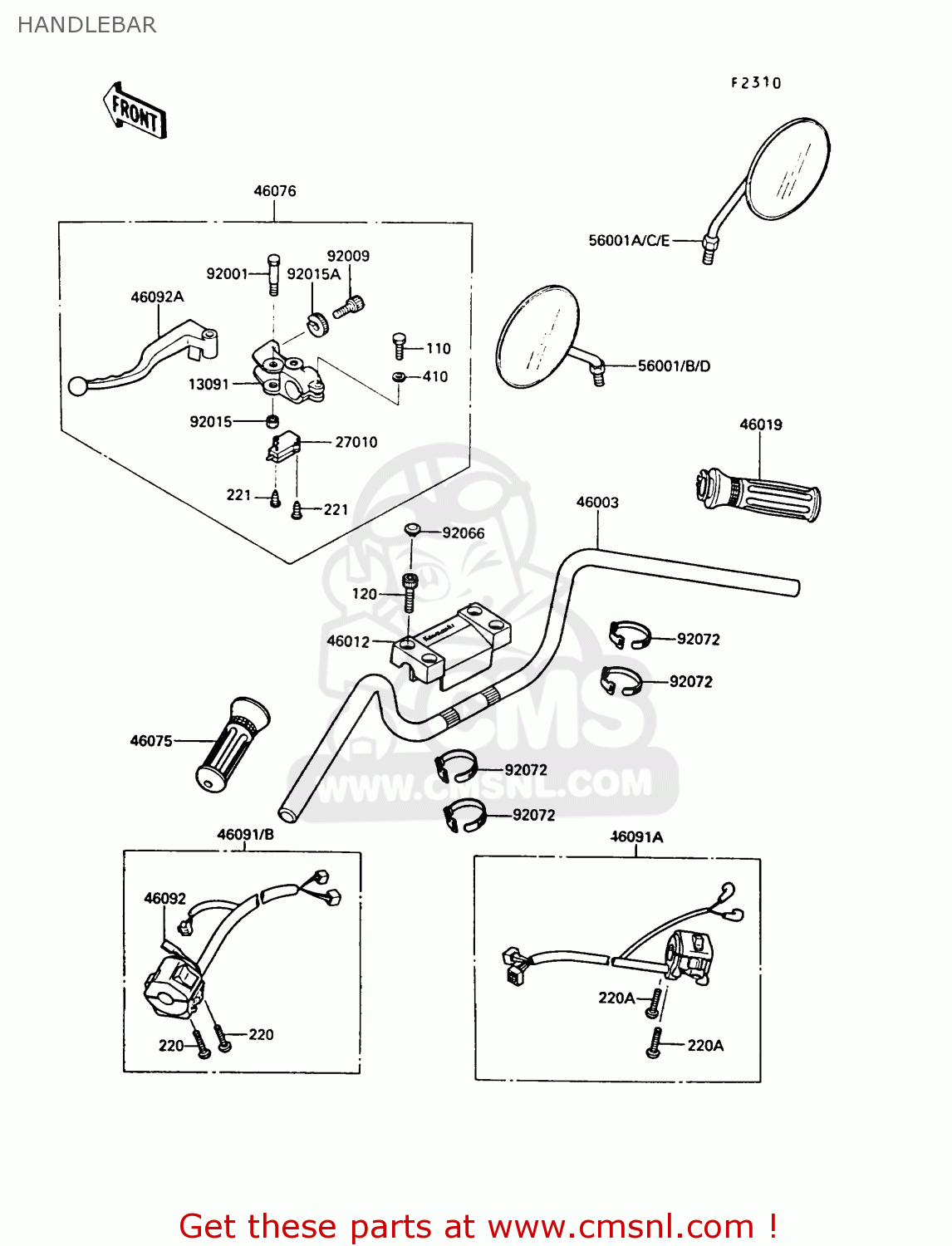

HANDLEBAR

ref

part #

description

quantity

110

110C0622
ref: 110

BOLT,6X22,BLACK

€ 3.00

120

120S0830
ref: 120

BOLT-SOCKET,8X30,BLAC

€ 3.00

220

220C0545
ref: 220

SCREW-PAN-CROS

€ 1.50

220A

220C0550
ref: 220A

SCREW-PAN-CROS,5X50

€ 2.00

221

221C0316
ref: 221

SCREW-CSK-CROS

€ 2.50

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

13091

130911272
ref: 13091

HOLDER,CLUTCH LEVER

€ 33.00

27010

270101094
ref: 27010

SWITCH,CLUTCH

€ 20.50

46003

460031181
ref: 46003

HANDLE

€ 72.50

46012

460121125
ref: 46012

HOLDER-HANDLE

€ 33.50

46019

460191062
ref: 46019

GRIP-ASSY,THROTTLE

€ 26.00

46075

460751061
ref: 46075

GRIP,LH

€ 12.00

46076

460761133
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 76.00

46091

460911435
ref: 46091
AREUFGNRUK

HOUSING-ASSY-CONTROL,

€ 140.00

46091A

460911465
ref: 46091A

HOUSING-ASSY-CONTROL,

€ 91.50

46091B

460911520
ref: 46091B
IT

HOUSING-ASSY-CONTROL,

€ 121.00

46092

460921124
ref: 46092

LEVER-GRIP,CHOKE

€ 4.50

46092A

460921153
ref: 46092A

LEVER-GRIP,CLUTCH

€ 23.00

56001

560011007
ref: 56001
AREUNR

MIRROR-ASSY,LH

€ 36.50

56001A

560011008
ref: 56001A
AREUNR

MIRROR-ASSY,RH

€ 36.50

56001B

560011021
ref: 56001B
ITUK

MIRROR-ASSY,LH

€ 62.50

56001C

560011022
ref: 56001C
ITUK

MIRROR-ASSY,RH

€ 58.50

56001D

560011023
ref: 56001D
FG

MIRROR-ASSY,LH

€ 78.50

56001E

560011024
ref: 56001E
FG

MIRROR-ASSY,RH

€ 71.50

92001

920011548
ref: 92001

BOLT,CLUTCH LEVER,BLA

€ 5.50

92009

920091134
ref: 92009

SCREW,CBL ADJUST,8MM

€ 10.50

92015

920151191
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92015A

920151197
ref: 92015A

NUT,CABLE ADJUST LOCK

€ 6.50

92066

920661216
ref: 92066

PLUG,HANDLE HOLDER

€ 3.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

all assemblies
