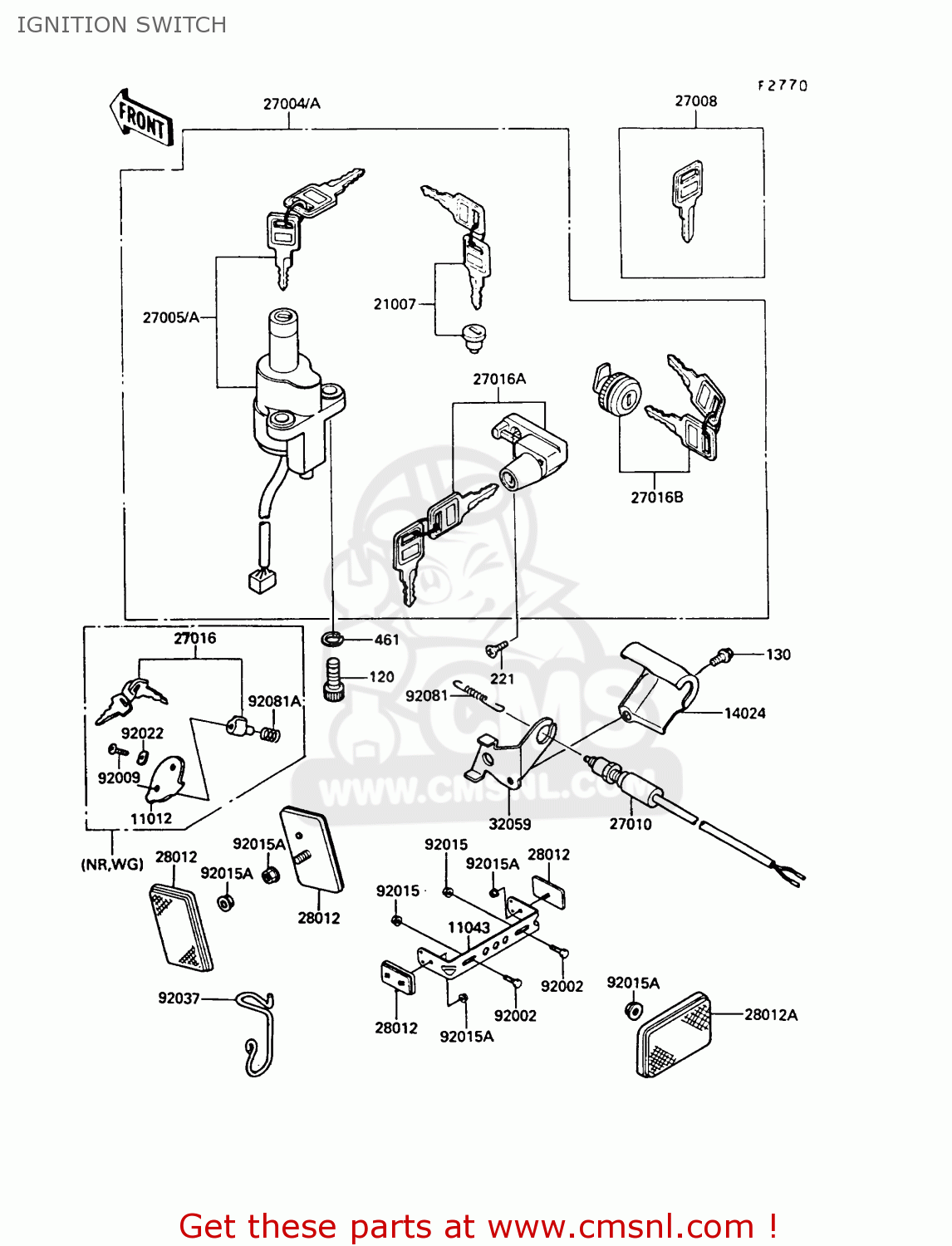

IGNITION SWITCH

ref

part #

description

quantity

120

120T0822
ref: 120

BOLT-SOCKET

€ 3.00

130

130C0608
ref: 130

BOLT-FLANGED

€ 2.50

11012

110121134
ref: 11012
FGNR

CAP,STEERING LOCK

€ 4.50

11043

110431619
ref: 11043
AR

BRACKET,REFLECTOR,RR

€ 9.00

14024

140251706
ref: 14024

COVER,BRAKE SWITCH

€ 10.00

21007

210075005
ref: 21007

ROTOR,FUEL TANK

€ 71.00

27004

270045253
ref: 27004
AREUITUK

SWITCH-ASSY

€ 251.00

27004A

270045257
ref: 27004A
FGNR

SWITCH-ASSY

€ 251.00

27005

270055044
ref: 27005
AREUITUK

SWITCH-ASSY-IGNITION

€ 244.00

27005A

270055046
ref: 27005A
FGNR

SWITCH-ASSY-IGNITION

€ 151.50

27008

270081103
ref: 27008

KEY-LOCK,BLANK

€ 13.50

27010

27010025
ref: 27010

SWITCH,BRAKE LAMP

€ 18.50

27016

270161005
ref: 27016
FGNR

LOCK-ASSY,STEERING

€ 65.00

27016A

270165060
ref: 27016A

LOCK-ASSY,HELMET

€ 71.50

27016B

270165081
ref: 27016B

LOCK-ASSY,BOX

€ 88.50

27016B

270165081
ref: 27016B
FGNR

LOCK-ASSY,BOX

€ 88.50

28012

280121003
ref: 28012
AR

REFLECTOR,REFLEX

€ 15.00

28012A

280121054
ref: 28012A

REFLECTOR-REFLEX,RR

€ 15.00

32059

320591063
ref: 32059

BRACKET-SWITCH,BRAKE

€ 5.50

92002

920021132
ref: 92002
AR

BOLT,6X12

€ 2.50

92009

92008007
ref: 92009
FGNR

SCREW-TAPPING

€ 2.50

92015

920151193
ref: 92015
AR

NUT,FLANGED,6MM

€ 0.50

92015A

920151259
ref: 92015A
EUFGITNRUK

NUT,FLANGED,5MM

€ 2.50

92015A

920151259
ref: 92015A
AR

NUT,FLANGED,5MM

€ 2.50

92022

92097003
ref: 92022
FGNR

WASHER

€ 2.50

92037

920371686
ref: 92037

CLAMP

€ 4.00

92081

27011006
ref: 92081

SPRING-BRAKE LAMP SW

€ 3.50

92081A

27032001
ref: 92081A
FGNR

SPRING-STEERING LOCK

€ 3.50

221

221C0516
ref: 221

SCREW-CSK-CROS

€ 2.00

461

461L0800
ref: 461

WASHER-SPRING

€ 0.50

all assemblies
