CYLINDER/PISTON(S)

EN450A5 LTD450 1989 EUROPE UK AR FG IT NR / LIQUID COOLED

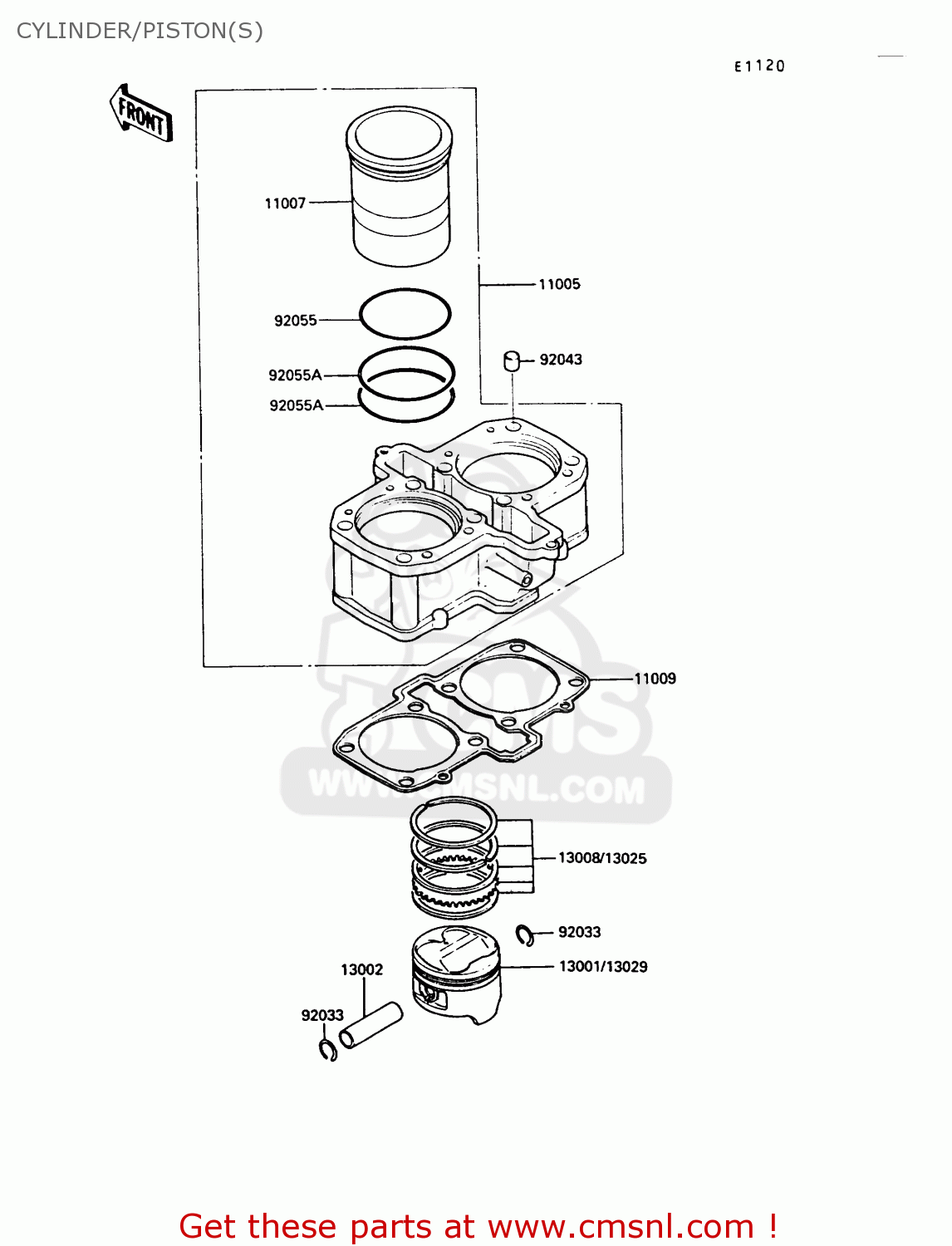

Cylinder/piston(s) diagram EN450A5 LTD450 1989 EUROPE UK AR FG IT NR / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

11005

110051418
ref: 11005

CYLINDER-ENGINE

€ 757.00

11007

110071079
ref: 11007

LINER-CYLINDER

€ 92.50

11009

110091640
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 33.00

13001

130011206
ref: 13001

PISTON-ENGINE,STD

€ 55.00

13002

130021023
ref: 13002

PIN-PISTON,12X18X57.2

€ 20.00

13008

130081053
ref: 13008

RING-SET-PISTON,STD

€ 63.50

13025

130251053
ref: 13025

RING-SET-PISTON L,O/S

€ 68.00

13029

130291168
ref: 13029

PISTON-ENGINE L,O/S 0

€ 68.00

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92055

920551229
ref: 92055

RING-O,78MM

€ 13.50

92055A

920551230
ref: 92055A

RING-O,79.5MM

€ 5.00
