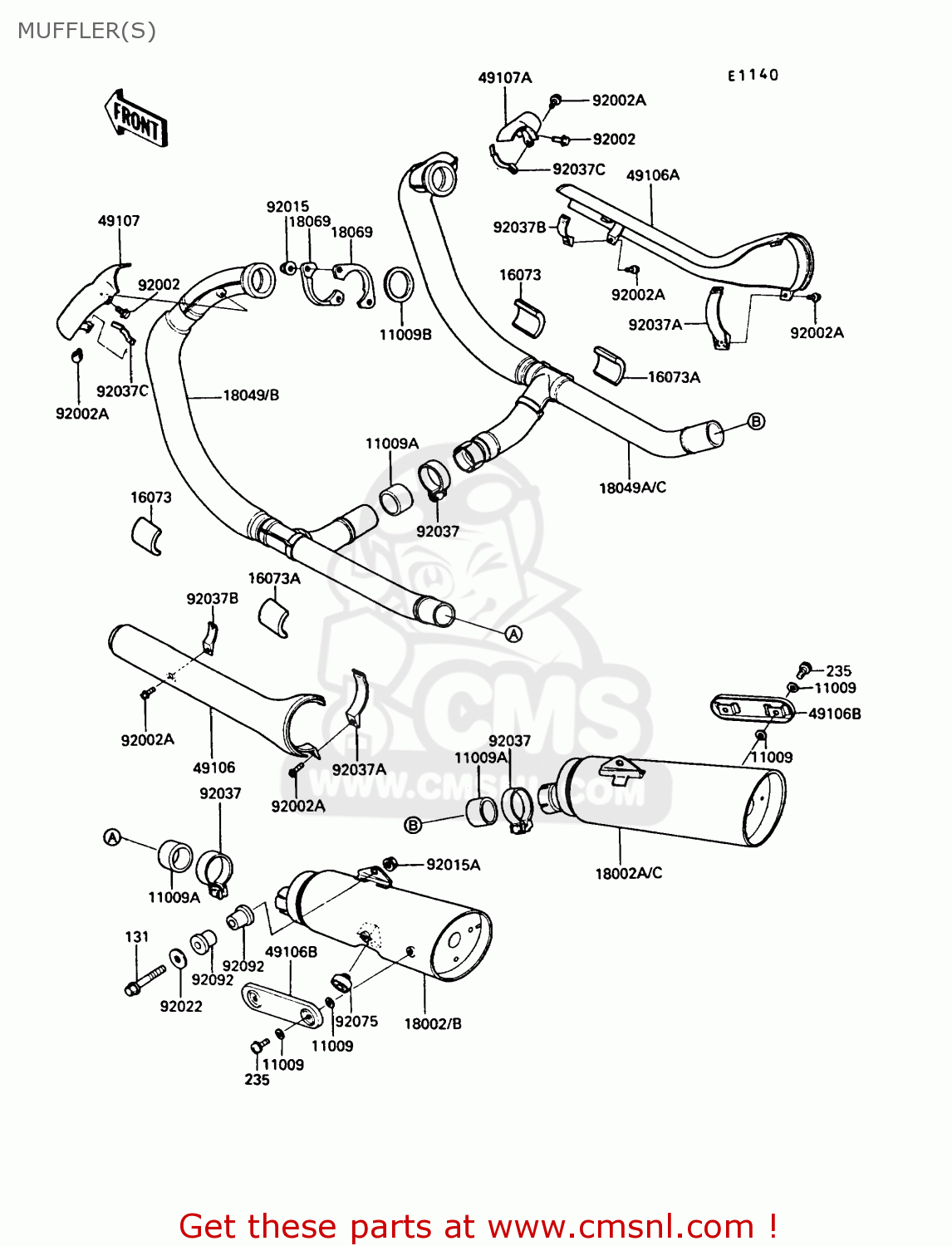

MUFFLER(S)

ref

part #

description

quantity

11009

110091451
ref: 11009

GASKET,MUFFLER COVER (MCA)

€ 2.50

11009A

110091634
ref: 11009A

GASKET,EXHAUST PIPE C (MCA)

€ 15.00

11009B

18067013
ref: 11009B

GASKET-EXHAUST PIPE (NAS)

€ 7.00

16073

160731080
ref: 16073
AR

INSULATOR

€ 32.50

16073A

160731081
ref: 16073A
AR

INSULATOR

€ 37.00

18002

180021589
ref: 18002
EUFGITNRUK

BODY-COMP-MUFFLER,LH

€ 318.00

18002A

180021590
ref: 18002A
EUFGITNRUK

BODY-COMP-MUFFLER,RH

€ 318.00

18002B

180021891
ref: 18002B
AR

BODY-COMP-MUFFLER,LH

€ 318.00

18002C

180021892
ref: 18002C
AR

BODY-COMP-MUFFLER,RH

€ 274.50

18049

180491318
ref: 18049
EUFGITNRUK

PIPE-EXHAUST,LH

€ 208.00

18049A

180491319
ref: 18049A
EUFGITNRUK

PIPE-EXHAUST,RH

€ 208.00

18049B

180491388
ref: 18049B
AR

PIPE-EXHAUST,LH

€ 222.50

18049C

180491389
ref: 18049C
AR

PIPE-EXHAUST,RH

€ 222.50

18069

180691064
ref: 18069

HOLDER-EXHAUST PIPE

€ 24.50

49106

491061055
ref: 49106

COVER-MUFFLER,LH

€ 67.50

49106A

491061056
ref: 49106A

COVER-MUFFLER,RH

€ 67.50

49106B

491061061
ref: 49106B

COVER-MUFFLER

€ 33.50

49107

491071062
ref: 49107

COVER-EXHAUST PIPE,LH

€ 47.50

49107A

491071063
ref: 49107A

COVER-EXHAUST PIPE,RH

€ 47.50

92002

920021604
ref: 92002

BOLT

€ 3.00

92002A

920021607
ref: 92002A

BOLT

€ 3.00

92015

920151371
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151387
ref: 92015A

NUT,FLANGED,10MM

€ 2.50

92022

92022328
ref: 92022

WASHER,PLAIN

€ 2.50

92037

920371349
ref: 92037

CLAMP,42MM

€ 8.50

92037A

920371615
ref: 92037A

CLAMP,MUFFLER COVER

€ 10.50

92037B

920371671
ref: 92037B
EUFGITNRUK

CLAMP,EXHAUST PIPE CO

€ 8.00

92037C

920371699
ref: 92037C
EUFGITNRUK

CLAMP,EXHAUST PIPE CO

€ 8.50

92037C

920371699
ref: 92037C
AR

CLAMP,EXHAUST PIPE CO

€ 8.50

92075

920751788
ref: 92075

DAMPER,STAND

€ 4.50

131

131G1060
ref: 131

BOLT,FLANGED,10X60

€ 6.00

235

235B0608
ref: 235

SCREW-PAN-WP-CROS

€ 2.50

92092

92092010
ref: 92092

BUSHING-MUFFLER FITT

€ 11.00

all assemblies
