STARTER MOTOR
BJ250A2 ESTRELLA 1994 FG

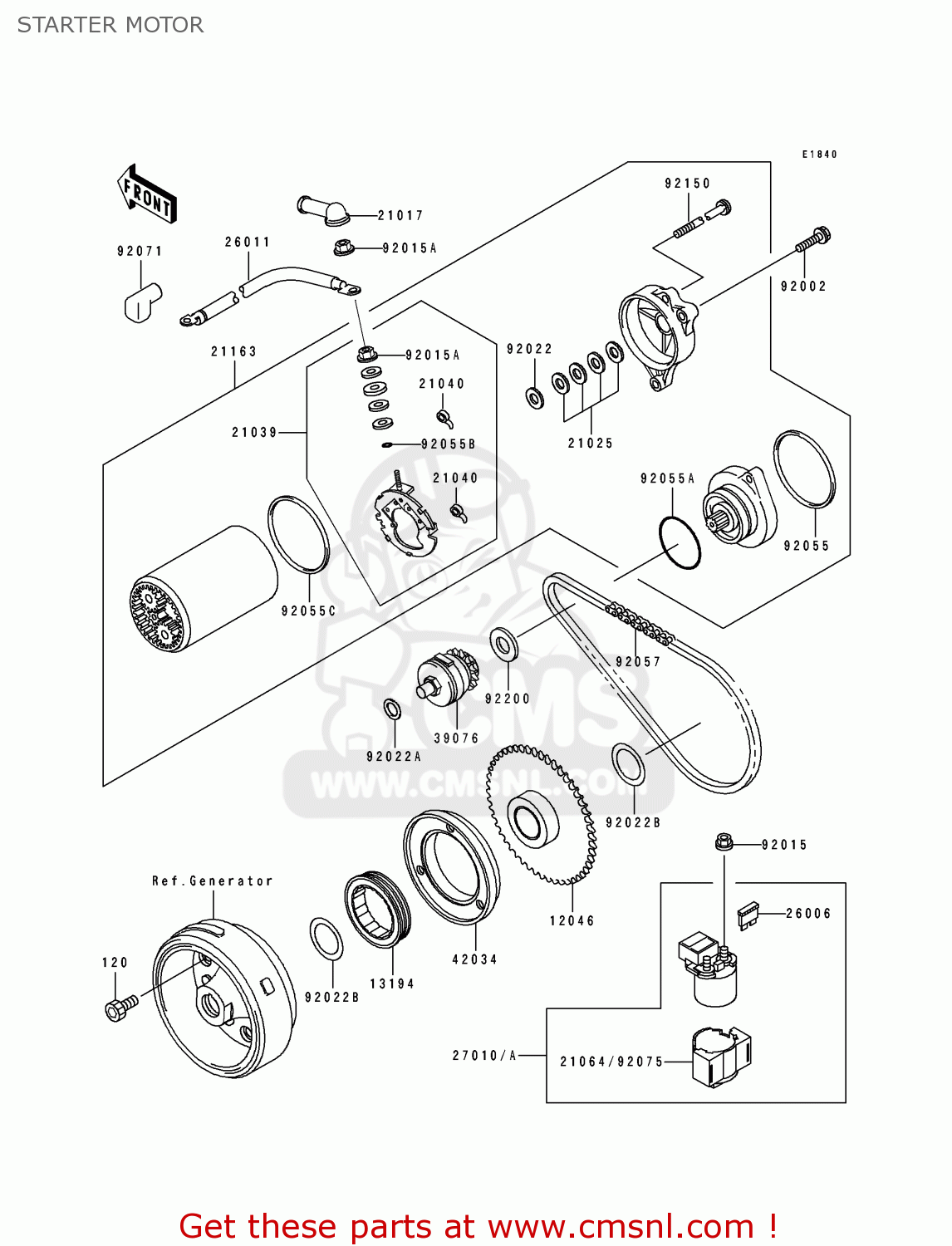

Starter motor diagram BJ250A2 ESTRELLA 1994 FG
STARTER MOTOR BJ250A2 ESTRELLA 1994 FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0818
ref: 120
BOLT-SOCKET
€ 2.00
12046
120461146
ref: 12046
SPROCKET,STARTER
€ 58.00
13194
131941084
ref: 13194
CLUTCH-ONEWAY
€ 102.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391063
ref: 21039
BRUSH,CARBON
€ 82.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631209
ref: 21163
STARTER-ELECTRIC
€ 434.00
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26011
260111276
ref: 26011
WIRE-LEAD,STARTER MOT
€ 57.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
39076
390761064
ref: 39076
LIMITER,STARTER IDEL
€ 156.00
42034
420341086
ref: 42034
COUPLING,ONEWAY CLUTC
€ 101.50
92002
920021612
ref: 92002
BOLT
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92022A
920221973
ref: 92022A
WASHER
€ 3.00
92022B
920221989
ref: 92022B
WASHER,27.3X38X0.8
€ 3.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551313
ref: 92055A
RING-O
€ 5.50
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
€ 3.00
92055C
920551381
ref: 92055C
RING-O,STARTER MOTOR
€ 6.50
92057
920571009
ref: 92057
CHAIN,DYNAMO
€ 12.50
92071
920711130
ref: 92071
GROMMET,TERMINAL
€ 7.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92150
921501640
ref: 92150
BOLT
€ 2.50
92200
922003710
ref: 92200
WASHER,14.1X25X2
€ 2.50
