CARBURETOR
BJ250A2 ESTRELLA 1994 FG

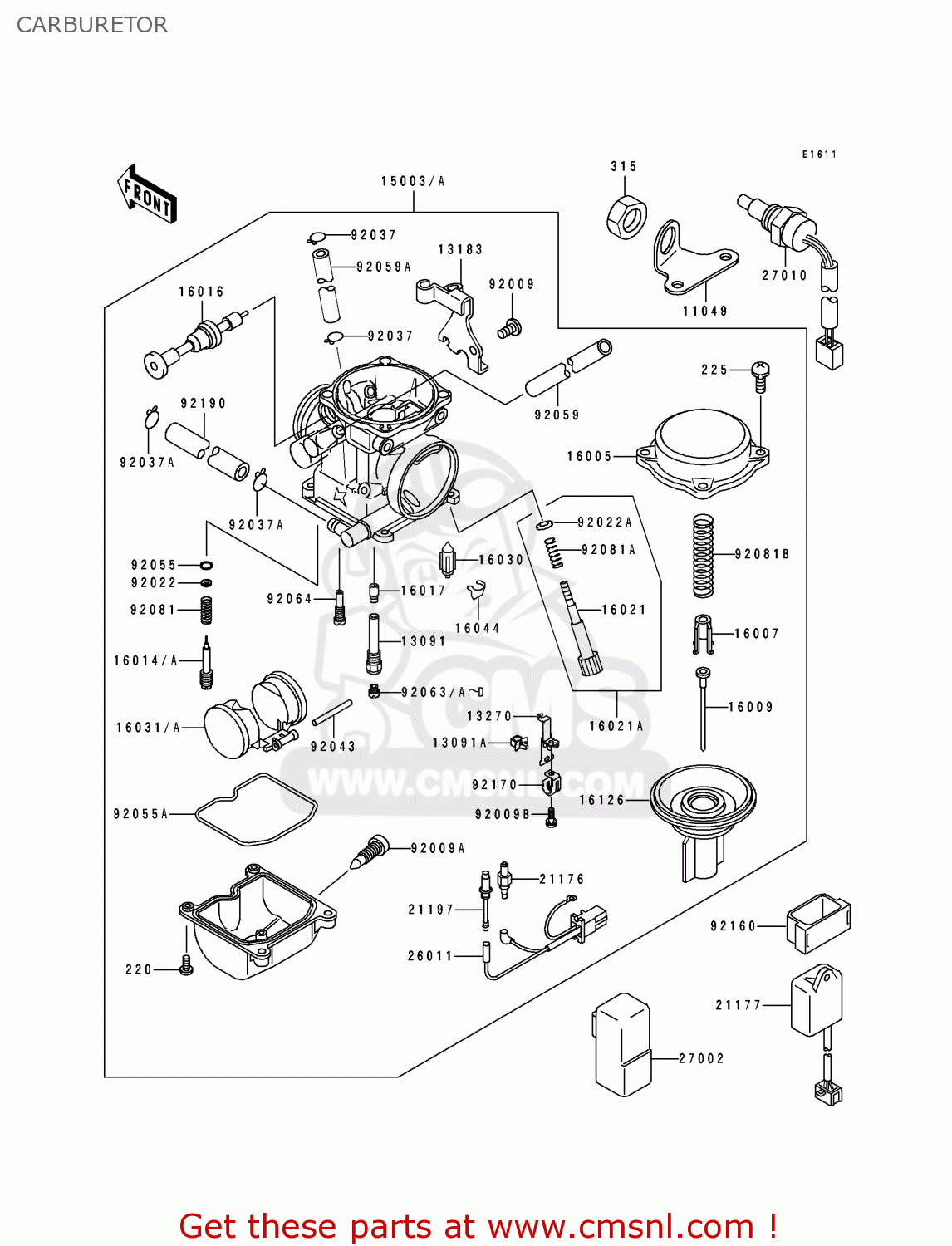

Carburetor diagram BJ250A2 ESTRELLA 1994 FG
CARBURETOR BJ250A2 ESTRELLA 1994 FG
×
prices are in EUR
ref
part #
description
quantity
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
13183
131831970
ref: 13183
PLATE,THROTTLE CABLE
€ 48.00
15003
150031054
ref: 15003
CARBURETOR-ASSY
€ 367.50
16005
160051059
ref: 16005
TOP-CHAMBER,MIXING,50
€ 55.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091821
ref: 16009
NEEDLE-JET,N96U
€ 20.00
16014
160141029
ref: 16014
SCREW-PILOT AIR
€ 13.50
16016
160161083
ref: 16016
PLUNGER,STARTER
€ 46.50
16017
160171362
ref: 16017
JET-NEEDLE
€ 38.50
16021
160211155
ref: 16021
SCREW-THROTTLE STOP
€ 38.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261163
ref: 16126
VALVE,VACUUM
€ 157.50
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221587
ref: 92022A
WASHER,THROTTLE STOP
€ 3.00
92037
920371477
ref: 92037
CLAMP,TUBE
€ 3.00
92037A
920371531
ref: 92037A
CLAMP,TUBE
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
€ 12.50
92059
920591539
ref: 92059
TUBE,6.5X9.5X410
€ 23.00
92059A
920591713
ref: 92059A
TUBE,5X9X120
€ 16.50
92063
920631069
ref: 92063
MAIN JET,2ND #125
€ 9.50
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92063A
920631072
ref: 92063A
MAIN JET 2ND #120
€ 9.50
92063B
920631073
ref: 92063B
MAIN JET,2ND #122
€ 9.50
92063C
920631074
ref: 92063C
MAIN JET,2ND #128
€ 9.50
92063D
920631075
ref: 92063D
MAIN JET,2ND #130
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811721
ref: 92081A
SPRING,THROTTLE STOP
€ 9.00
92081B
920811826
ref: 92081B
SPRING,VACUUM VALVE
€ 16.50
92190
921901385
ref: 92190
TUBE,6.5X11.5X140
€ 22.00
