IGNITION SWITCH
BJ250A2 ESTRELLA 1994 FG

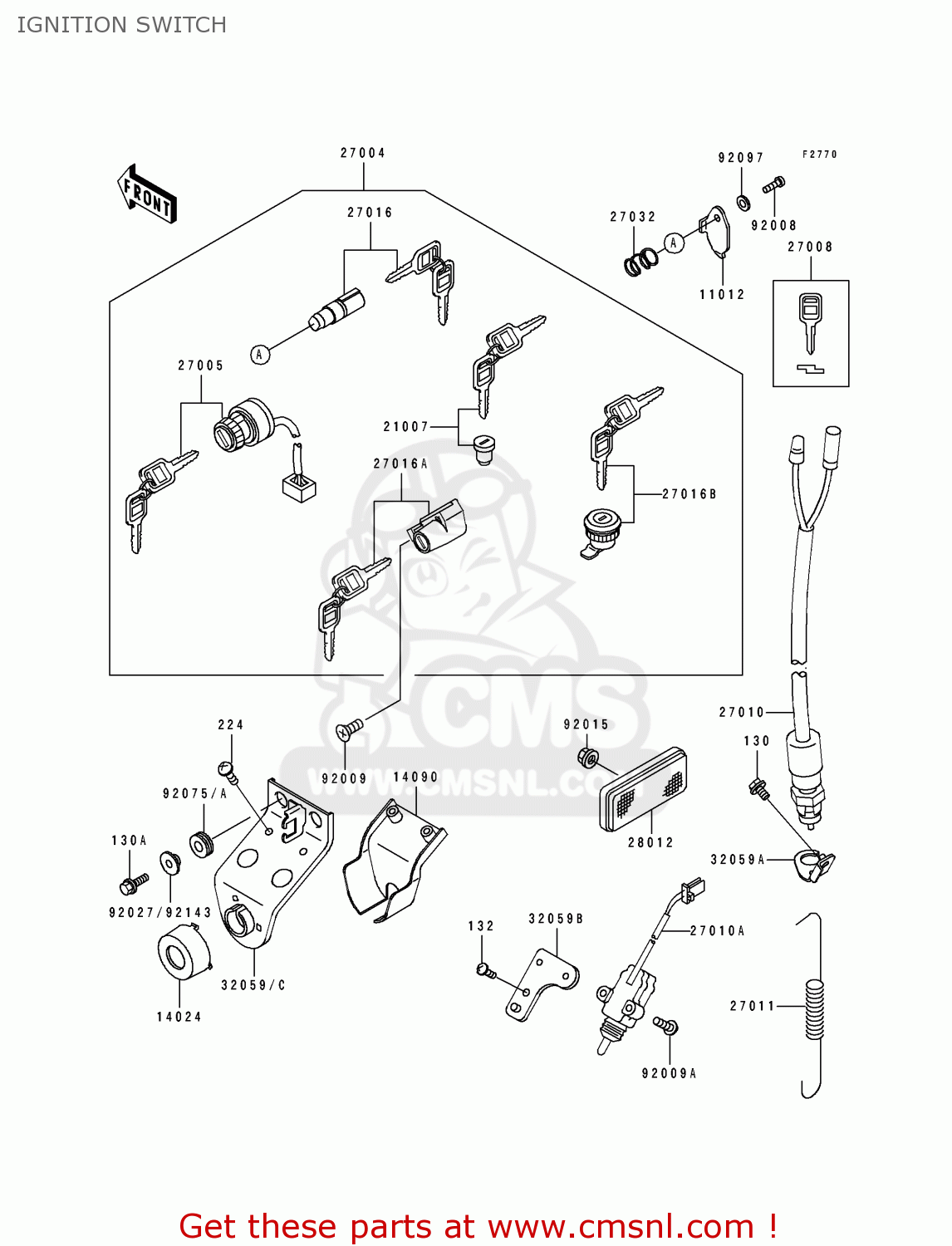

Ignition switch diagram BJ250A2 ESTRELLA 1994 FG
IGNITION SWITCH BJ250A2 ESTRELLA 1994 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
224
224B0520
ref: 224
SCREW-PAN-WP-CROS,5X2
€ 0.50
11012
110121134
ref: 11012
CAP,STEERING LOCK
€ 4.50
14024
140241752
ref: 14024
COVER,IGNITION SWITCH
€ 7.00
14090
140901268
ref: 14090
COVER,IGNITION SWITCH
€ 31.50
21007
210075005
ref: 21007
ROTOR,FUEL TANK
€ 71.00
27004
270045485
ref: 27004
SWITCH-ASSY
€ 240.00
27005
270055098
ref: 27005
SWITCH-ASSY-IGNITION
€ 195.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
€ 20.00
27010A
270101226
ref: 27010A
SWITCH,SIDE STAND
€ 47.50
27011
27011021
ref: 27011
SPRING,BRAKE LAMP SW
€ 15.50
27016
270161005
ref: 27016
LOCK-ASSY,STEERING
€ 65.00
27016A
270165060
ref: 27016A
LOCK-ASSY,HELMET
€ 71.50
27016B
270165136
ref: 27016B
LOCK-ASSY,TOOL BOX
€ 56.50
27032
27032001
ref: 27032
SPRING-STEERING LOCK
€ 3.50
28012
280121077
ref: 28012
REFLECTOR-REFLEX
€ 16.00
32059
320591112
ref: 32059
BRACKET-SWITCH,IGNITI
€ 24.00
32059A
320591113
ref: 32059A
BRACKET-SWITCH,REAR B
€ 7.00
32059B
320591115
ref: 32059B
BRACKET-SWITCH,SIDE S
€ 18.50
92008
92008007
ref: 92008
SCREW-TAPPING
€ 2.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
92009A
920091459
ref: 92009A
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92075
92075051
ref: 92075
DAMPER RUBBER
€ 2.50
92097
92097003
ref: 92097
WASHER
€ 2.50
92143
921431019
ref: 92143
COLLAR,L=7.4
€ 3.00
