HEADLIGHT(S)
BJ250A2 ESTRELLA 1994 FG

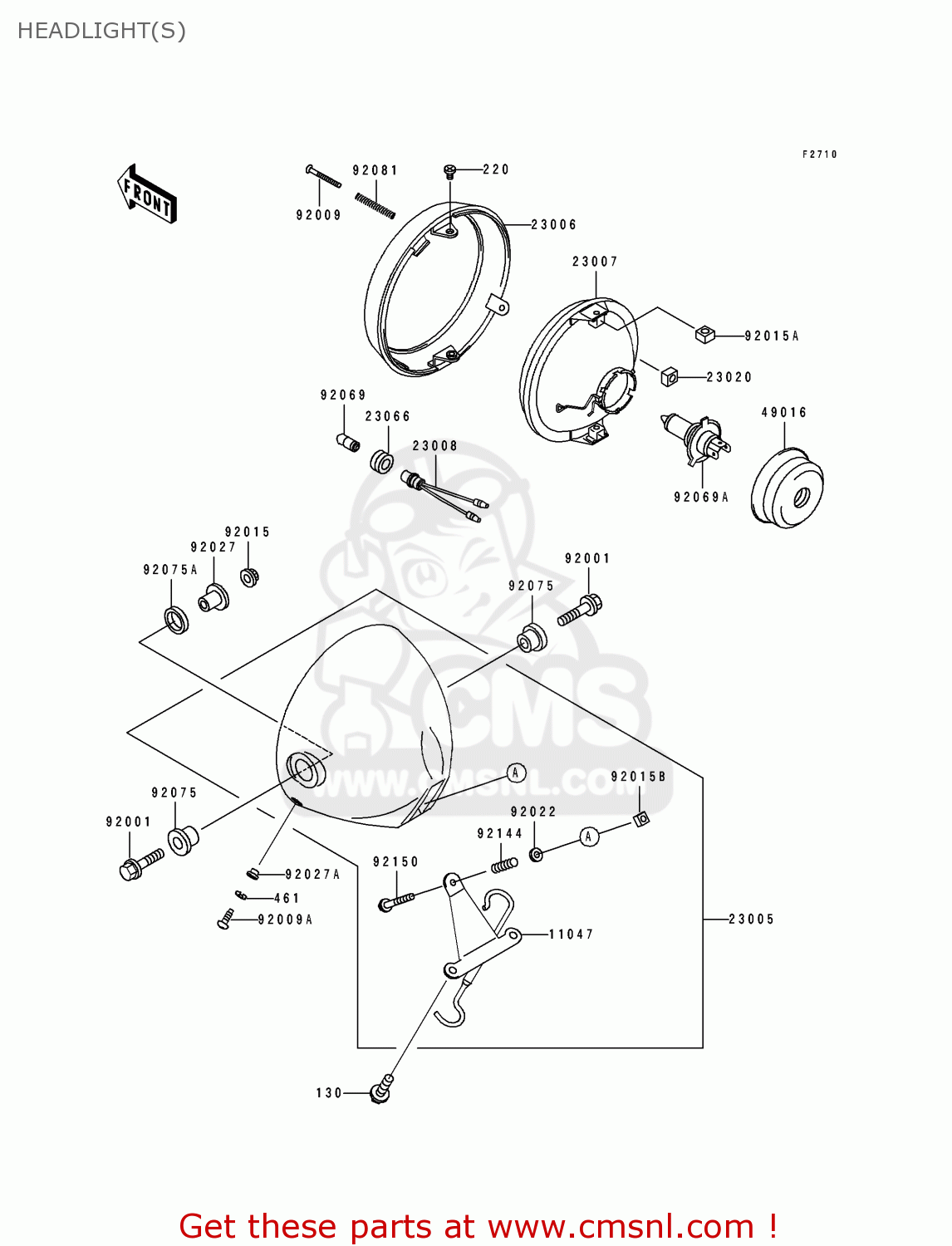

Headlight(s) diagram BJ250A2 ESTRELLA 1994 FG
HEADLIGHT(S) BJ250A2 ESTRELLA 1994 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
220
220D0510
ref: 220
SCREW-PAN-CROS
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
11047
110471725
ref: 11047
BRACKET,HEAD LAMP BOD
€ 38.50
23005
230051129DS
ref: 23005
BODY-COMP-HEAD LAMP,W
€ 233.00
23006
230061065
ref: 23006
RIM-LAMP
€ 67.50
23007
230071266
ref: 23007
LENS-COMP,HEAD LAMP
€ 108.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
920091693
ref: 92009A
SCREW,5X16
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92015B
920151799
ref: 92015B
NUT,5MM,FOCUS ADJUST
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
€ 2.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
€ 3.00
92144
921441417
ref: 92144
SPRING
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
€ 4.50
