TRANSMISSION
AR50C9 1991 EUROPE UK NL GR

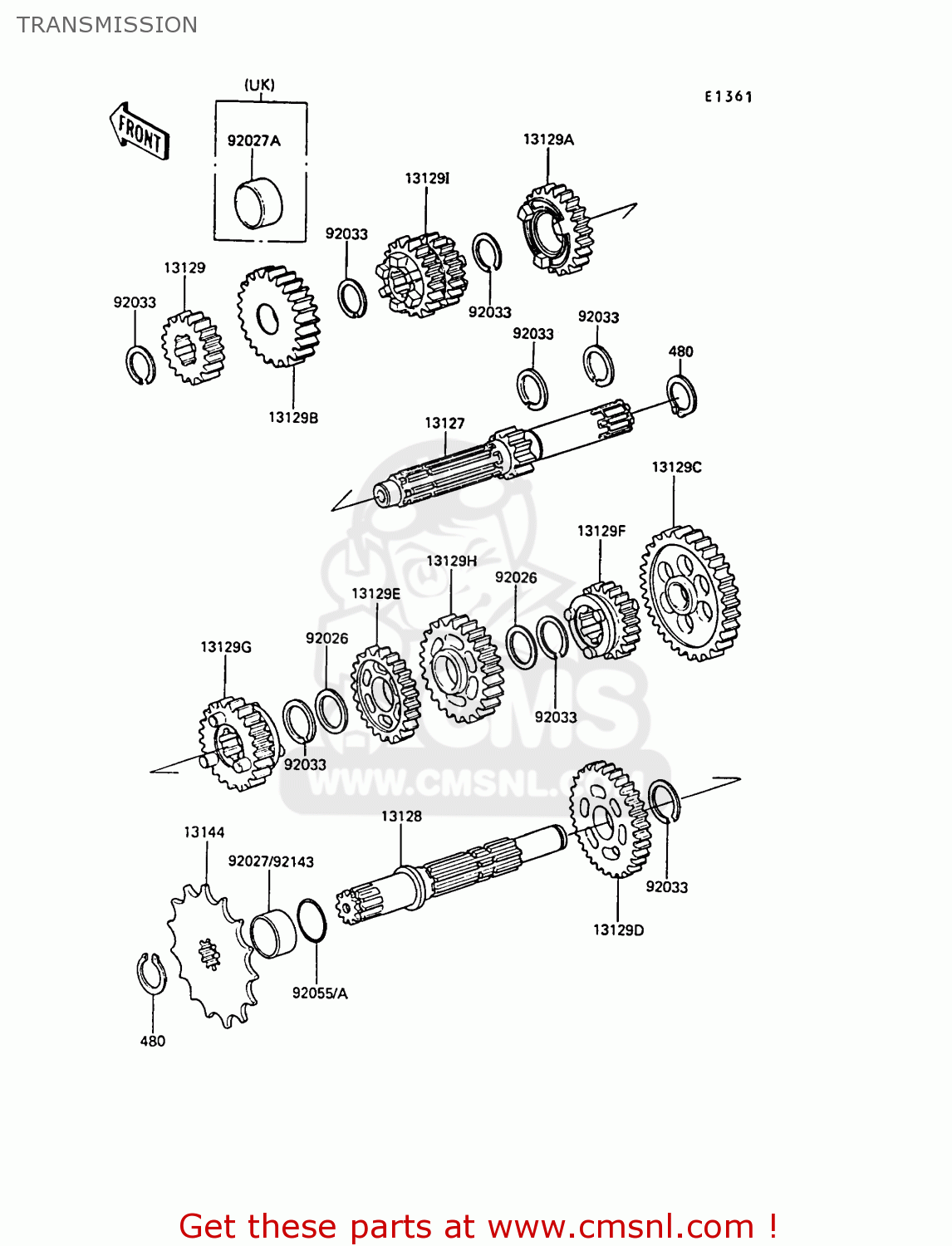

Transmission diagram AR50C9 1991 EUROPE UK NL GR
TRANSMISSION AR50C9 1991 EUROPE UK NL GR
×
prices are in EUR
ref
part #
description
quantity
480
480J1700
ref: 480
CIRCLIP-TYPE-C,17MM
€ 0.50
13127
131271169
ref: 13127
SHAFT-TRANSMISSION IN
€ 91.00
13128
131281031
ref: 13128
SHAFT-TRANSMISSION OU
€ 106.00
13129
131291244
ref: 13129
GEAR,INPUT,2ND,18T
€ 45.00
13129A
131291246
ref: 13129A
GEAR,INPUT 5TH,27T
€ 90.00
13129B
131291247
ref: 13129B
EUGRNL
GEAR,INPUT TOP,29T
€ 84.00
13129C
131291248
ref: 13129C
GEAR,OUTPUT,LOW,43T
€ 73.50
13129D
131291249
ref: 13129D
GEAR,OUTPUT 2ND,38T
€ 56.50
13129E
131291251
ref: 13129E
GEAR,OUTPUT,4TH,31T
€ 69.50
13129F
131291252
ref: 13129F
GEAR,OUTPUT 5TH,29T
€ 79.50
13129G
131291253
ref: 13129G
GEAR,OUTPUT TOP,28T
€ 84.00
13129H
131291338
ref: 13129H
GEAR,OUTPUT 3RD,34T
€ 56.00
13129I
131291958
ref: 13129I
GEAR,INPUT 3RD&4TH,25
€ 123.00
13144
131441043
ref: 13144
SPROCKET-OUTPUT,13T
€ 8.50
92026
920261037
ref: 92026
SPACER,17.2X23X0.5
€ 2.50
92027A
920271315
ref: 92027A
UK
COLLAR,17X22X8.5
€ 9.50
92033
920331060
ref: 92033
RING,SNAP
€ 2.50
92055A
920551235
ref: 92055A
RING-O,16.8MM
€ 3.50
92143
921431193
ref: 92143
COLLAR
€ 7.50
