CLUTCH(AR50-C9)
AR50C9 1991 EUROPE UK NL GR

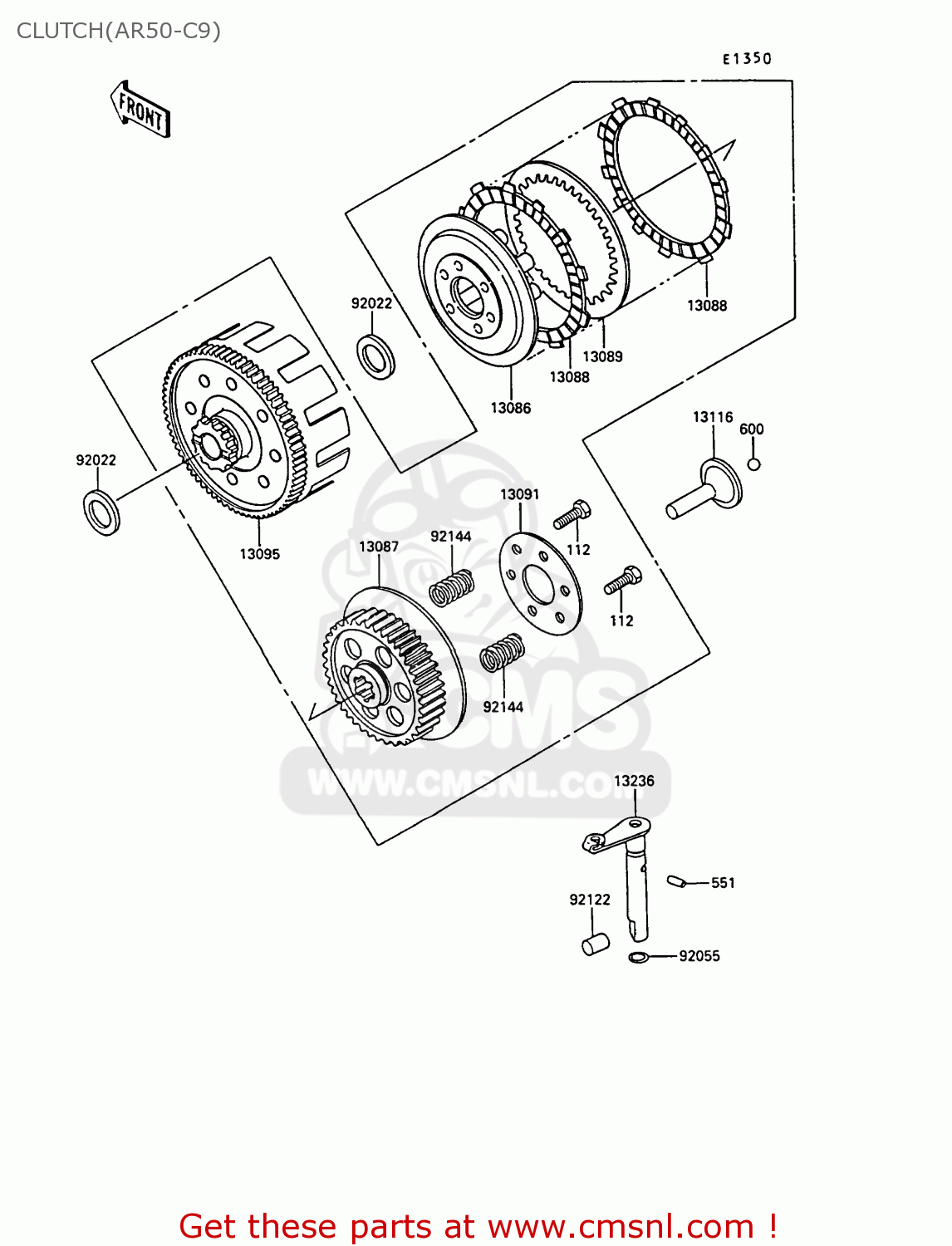

Clutch(ar50-c9) diagram AR50C9 1991 EUROPE UK NL GR
CLUTCH(AR50-C9) AR50C9 1991 EUROPE UK NL GR
×
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
551
551A0306
ref: 551
PIN,DOWEL,3X6
€ 1.00
600
600A0900
ref: 600
BALL-STEEL,9/32
€ 2.50
13086
130861059
ref: 13086
WHEEL-CLUTCH
€ 22.00
13087
130871113
ref: 13087
HUB-CLUTCH
€ 53.50
13088
130881010
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
€ 11.00
13089
130891009
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
13091
130911115
ref: 13091
HOLDER,CLUTCH SPRING
€ 12.50
13095
130951187
ref: 13095
HOUSING-COMP-CLUTCH
€ 173.00
13116
131161135
ref: 13116
ROD-PUSH,CLUTCH
€ 15.00
13236
132361213
ref: 13236
LEVER-COMP,CLUTCH REL
€ 25.50
92022
92022255
ref: 92022
WASHER
€ 5.50
92055
920551023
ref: 92055
ORING
€ 2.50
92122
921221019
ref: 92122
ROLLER,10X12
€ 3.50
92144
921441388
ref: 92144
SPRING,CLUTCH
€ 4.50
