SWING ARM

AR50C9 1991 EUROPE UK NL GR

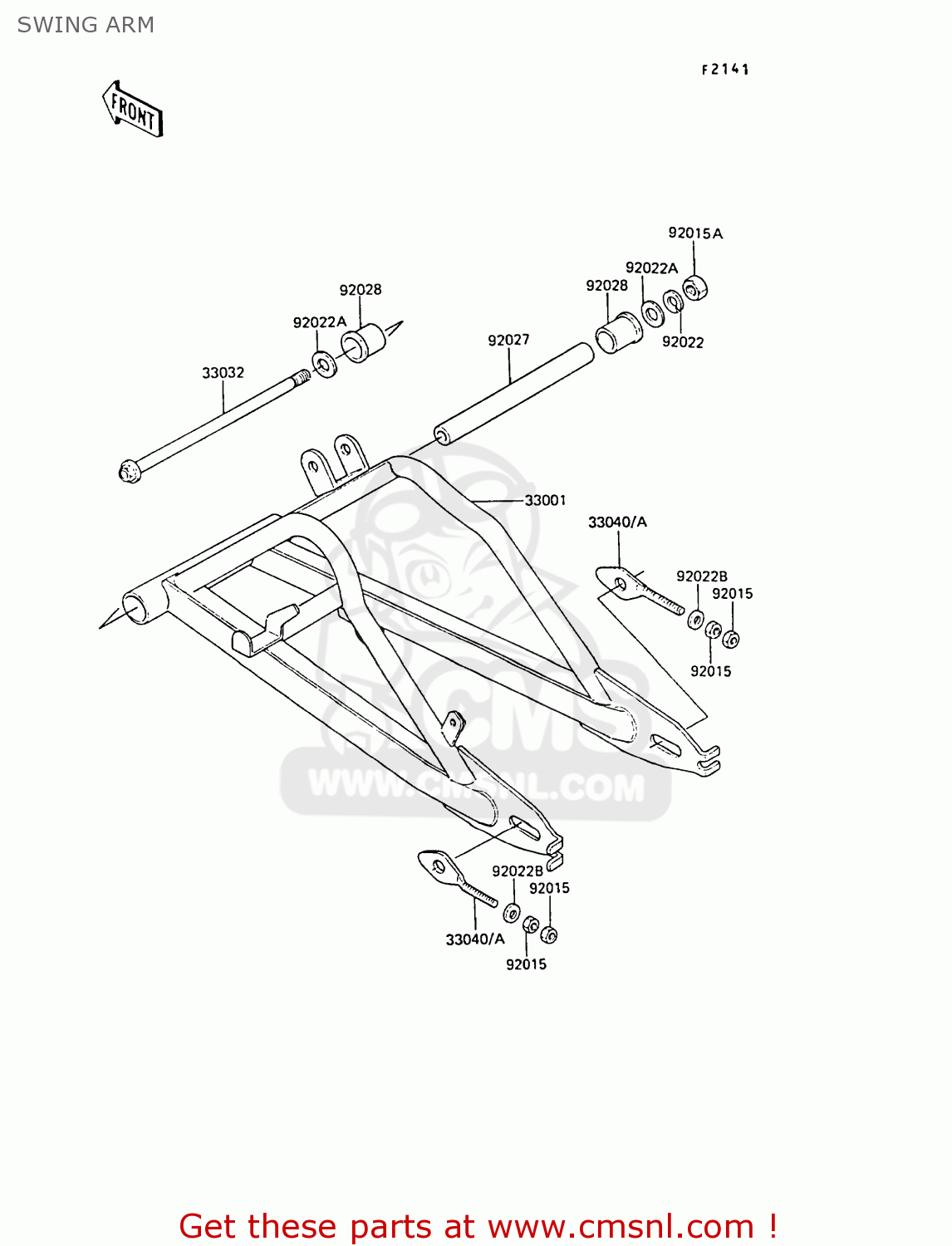

Swing arm diagram AR50C9 1991 EUROPE UK NL GR

prices are in EUR

ref

part #

description

quantity

33001

330011171CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 215.00

33032

330321018
ref: 33032

SHAFT-SWING ARM

€ 26.00

33040

33040008
ref: 33040
EUGRNL

ADJUSTER-CHAIN

€ 7.00

33040A

330401006
ref: 33040A
UK

ADJUSTER-CHAIN

€ 6.50

92015

920151391
ref: 92015

NUT,6MM

€ 2.00

92015A

920151416
ref: 92015A

NUT,10MM

€ 3.00

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92022A

920221558
ref: 92022A

WASHER,10.5X22X1.6

€ 2.00

92022B

920221565
ref: 92022B

WASHER,6.5X16X2

€ 2.50

92027

920271309
ref: 92027

COLLAR,10.1X17X183

€ 35.50

92028

920281359
ref: 92028

BUSHING,L=25

€ 13.00

SWING ARM

all assemblies
