METER
AR50C9 1991 EUROPE UK NL GR

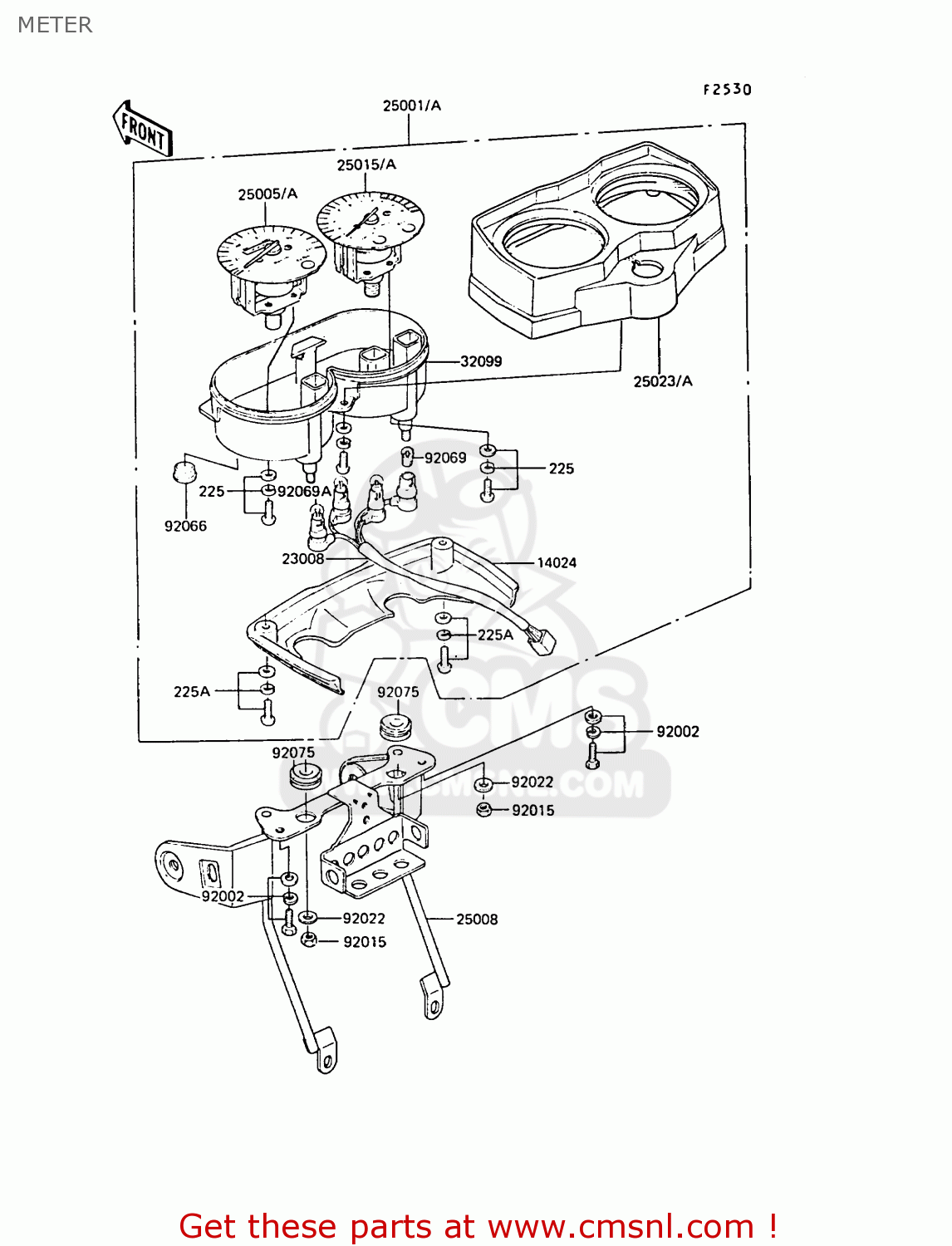

Meter diagram AR50C9 1991 EUROPE UK NL GR
METER AR50C9 1991 EUROPE UK NL GR
×
prices are in EUR
ref
part #
description
quantity
225
225B0410
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
225A
225B0412
ref: 225A
SCREW-PAN-WSP-CROS
€ 1.50
14024
140251376
ref: 14024
COVER,METER,LWR
€ 12.50
23008
230081218
ref: 23008
SOCKET-ASSY,METER
€ 37.00
25001
250011648
ref: 25001
UK
METER-ASSY,MPH
€ 771.50
25001A
250011650
ref: 25001A
EUGRNL
METER-ASSY,KPH
€ 391.50
25005
250051122
ref: 25005
EUGRNL
SPEEDOMETER,KPH
€ 99.50
25005A
250051123
ref: 25005A
UK
SPEEDOMETER,MPH
€ 117.50
25008
250081028
ref: 25008
BRACKET-METER
€ 60.50
25015
250151091
ref: 25015
UK
TACHOMETER
€ 120.00
25015A
250151103
ref: 25015A
EUGRNL
TACHOMETER
€ 92.00
25023
250231138
ref: 25023
UK
COVER-METER CASE
€ 72.50
25023A
250231139
ref: 25023A
EUGRNL
COVER-METER CASE
€ 72.50
32099
320991021
ref: 32099
CASE,METER
€ 24.50
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92066
920661090
ref: 92066
PLUG
€ 2.50
92069
920691053
ref: 92069
BULB,6V 3W
€ 2.00
92069A
920691054
ref: 92069A
BULB,6V 1.7W
€ 2.50
92075
92075076
ref: 92075
DAMPER
€ 3.00
