FRONT HUB
AR50C9 1991 EUROPE UK NL GR

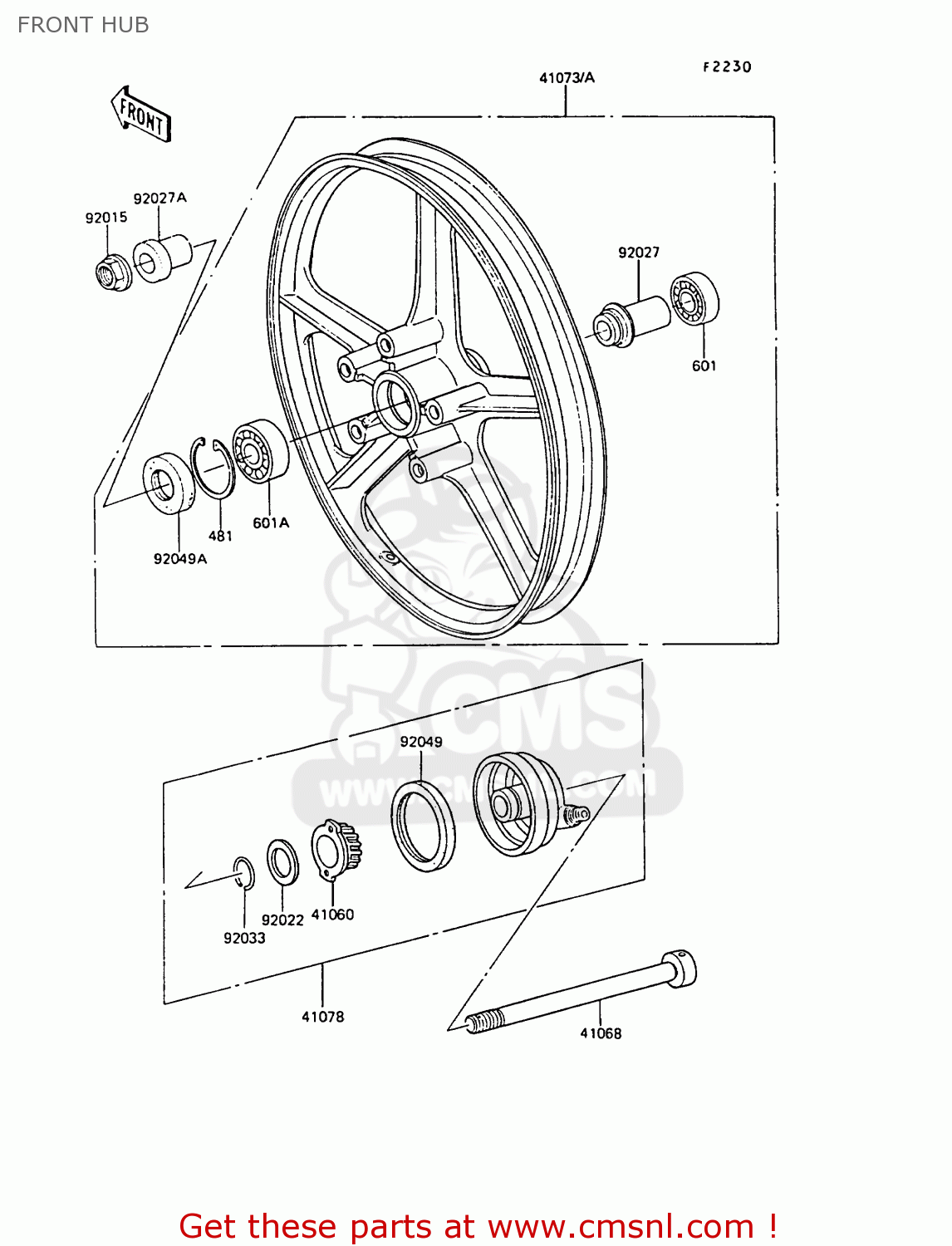

Front hub diagram AR50C9 1991 EUROPE UK NL GR
FRONT HUB AR50C9 1991 EUROPE UK NL GR
×
prices are in EUR
ref
part #
description
quantity
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
601
601B6201G
ref: 601
BALL BEARING
€ 7.00
601A
601B6301G
ref: 601A
BEARING-BALL,#6301G
€ 13.00
41060
410601103
ref: 41060
GEAR-METER SCREW,21T
€ 19.50
41068
410681092
ref: 41068
AXLE,FR,L=197
€ 17.00
41073
410731175T6
ref: 41073
WHEEL-ASSY,FR,WHITE N
€ 479.50
41073A
410731175X4
ref: 41073A
WHEEL-ASSY,FR,F.RED
€ 503.50
41078
410781052
ref: 41078
CASE-ASSY-METER GEAR
€ 119.00
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92022
920221510
ref: 92022
WASHER,20X29X1.0
€ 3.00
92027
41039034
ref: 92027
COLLAR,L=43
€ 9.00
92027A
920271001
ref: 92027A
COLLAR,L=29
€ 9.50
92033
920331160
ref: 92033
RING-SNAP,19MM
€ 3.00
92049
920491173
ref: 92049
SEAL-OIL
€ 12.50
92049A
92050059
ref: 92049A
OIL SEAL,FR BK DRUM
€ 13.00
