AR50C8 1990 EUROPE UK NL GR SA

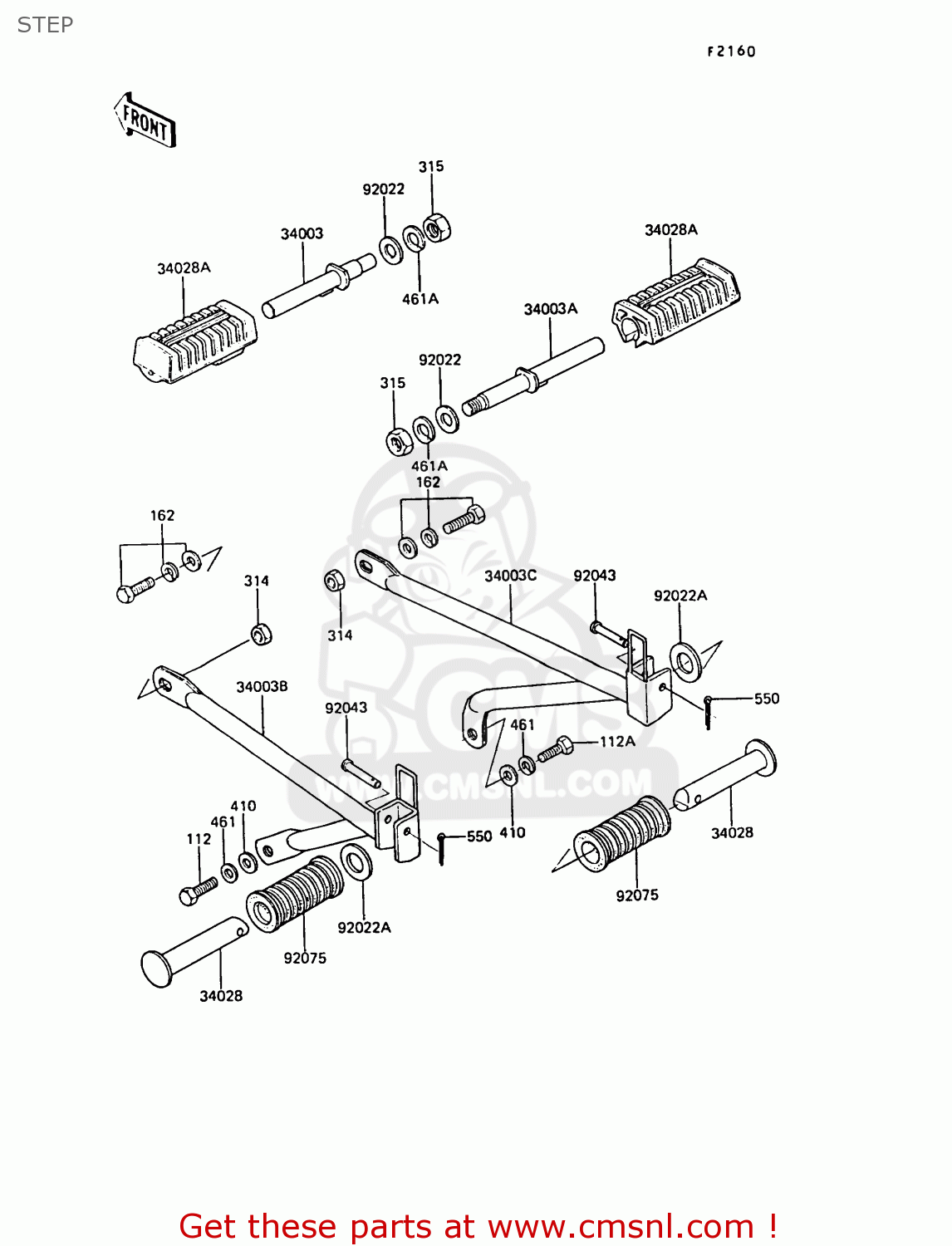

Step diagram AR50C8 1990 EUROPE UK NL GR SA
STEP AR50C8 1990 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
112
112C1022
ref: 112
BOLT-UPSET,10X22
€ 2.50
112A
112C1025
ref: 112A
BOLT-UPSET,10X25
€ 2.50
162
162C1025
ref: 162
BOLT-FINE-WSP
€ 1.50
314
314C1000
ref: 314
NUT-HEX-FINE,10MM,BLA
€ 2.50
315
315C1200
ref: 315
NUT-HEX-FINE
€ 3.00
410
410F1000
ref: 410
WASHER-PLAIN-SMALL,10
€ 2.50
461
461K1000
ref: 461
461K1000
461A
461K1200
ref: 461A
461K1200
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
34003
340031097
ref: 34003
HOLDER-STEP,FR,LH
€ 20.50
34003A
340031098
ref: 34003A
HOLDER-STEP,FR,RH
€ 20.00
34003B
340031208
ref: 34003B
HOLDER-STEP,RR,LH
€ 39.00
34003C
340031209
ref: 34003C
HOLDER-STEP,RR,RH
€ 39.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
34028A
340281032
ref: 34028A
STEP
€ 11.50
92022
920221343
ref: 92022
WASHER,12.5X28X3.0
€ 3.00
92022A
920221568
ref: 92022A
WASHER,20X30X2.3
€ 2.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92075
92076020
ref: 92075
DAMPER
€ 7.50
