IGNITION SWITCH (AR50-C8/C9)
AR50C8 1990 EUROPE UK NL GR SA

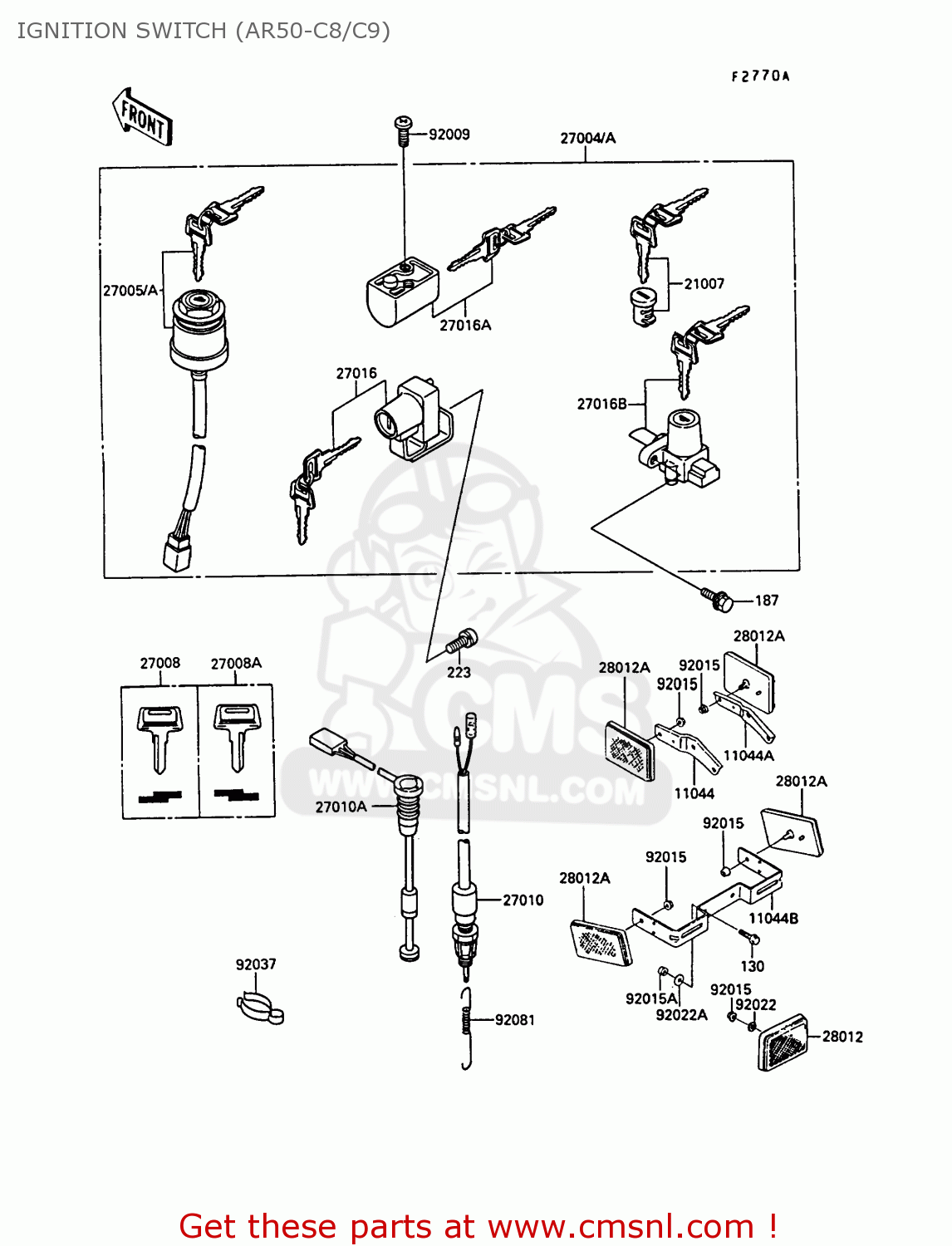

Ignition switch (ar50-c8/c9) diagram AR50C8 1990 EUROPE UK NL GR SA
IGNITION SWITCH (AR50-C8/C9) AR50C8 1990 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
130
130D0612
ref: 130
EU
BOLT,FLANGED
€ 0.50
11044
110441913
ref: 11044
EU
BRACKET,REFLECTOR,FR,
€ 9.00
11044A
110441914
ref: 11044A
EU
BRACKET,REFLECTOR,FR,
€ 9.00
11044B
110441917
ref: 11044B
EU
BRACKET,REFLECTOR,RR
€ 12.00
21007
210075031
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045399
ref: 27004
EUGRNLSA
SWITCH-ASSY
€ 160.00
27004A
270045400
ref: 27004A
UK
SWITCH-ASSY
€ 160.00
27005
270051155
ref: 27005
EUGRNLSA
SWITCH-ASSY-IGNITION
€ 57.50
27005A
270051156
ref: 27005A
UK
SWITCH-ASSY-IGNITION
€ 53.50
27008
270081159
ref: 27008
KEY-LOCK,BLANK,#A
€ 10.50
27008A
270081160
ref: 27008A
KEY-LOCK,BLANK,#B
€ 10.50
27010
27010025
ref: 27010
SWITCH,BRAKE LAMP
€ 18.50
27010A
270101049
ref: 27010A
SWITCH,OIL LEVEL
€ 47.50
27016
270165167
ref: 27016
LOCK-ASSY,HELMET
€ 32.50
27016A
270165168
ref: 27016A
LOCK-ASSY,STEERING
€ 36.00
27016B
270165169
ref: 27016B
LOCK-ASSY,SEAT
€ 69.00
28012
280121054
ref: 28012
EUGRNL
REFLECTOR-REFLEX,RR
€ 15.00
28012A
280121059
ref: 28012A
EU
REFLECTOR-REFLEX
€ 13.00
92009
920091363
ref: 92009
SCREW,6X10
€ 3.00
92015
920151259
ref: 92015
GRNL
NUT,FLANGED,5MM
€ 2.50
92015
920151259
ref: 92015
EU
NUT,FLANGED,5MM
€ 2.50
92015A
92017014
ref: 92015A
EU
NUT,LOCK,6MM
€ 4.00
92022
92022104
ref: 92022
EUGRNL
WASHER-SPEEDMETR FIT
€ 2.50
92022A
92022125
ref: 92022A
EU
WASHER,6.5X20X1.6
€ 1.00
92037
920371086
ref: 92037
CLAMP,CLUTCH CABLE
€ 4.00
92081
27011006
ref: 92081
SPRING-BRAKE LAMP SW
€ 3.50
187
187D0514
ref: 187
BOLT-UPSET-WSP,5X14
€ 2.50
223
223B0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
