FRAME
AR50C8 1990 EUROPE UK NL GR SA

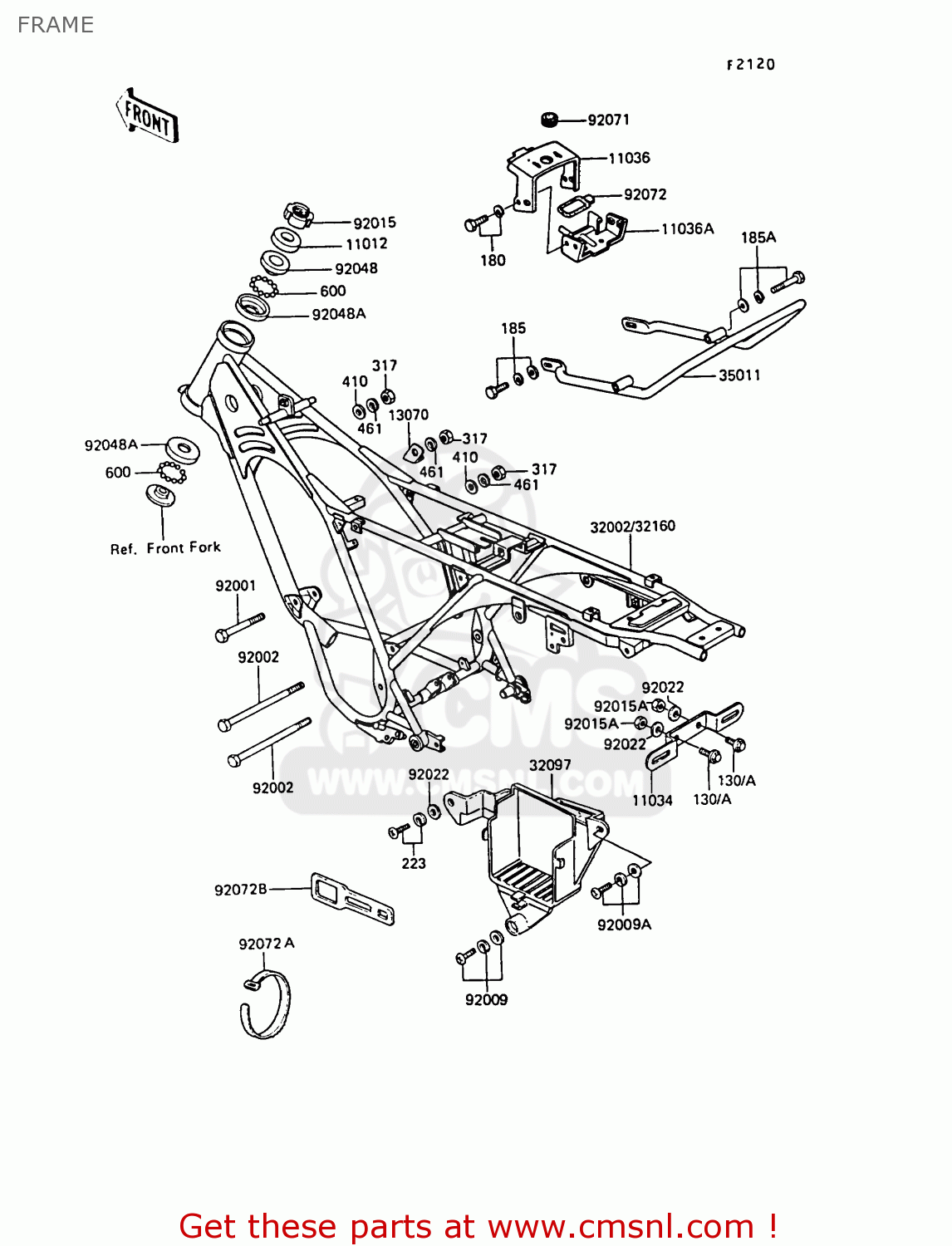

Frame diagram AR50C8 1990 EUROPE UK NL GR SA
FRAME AR50C8 1990 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
130
130D0612
ref: 130
SAUK
BOLT,FLANGED
€ 0.50
130A
130D0616
ref: 130A
GR
BOLT-FLANGED
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
185
185C0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 3.00
185A
185C0855
ref: 185A
BOLT-UPSET-WSP-SMALL
€ 2.50
223
223B0616
ref: 223
SCREW-PAN-WS-CROS,6X1
€ 3.00
317
317C0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 0.50
11012
46098004
ref: 11012
CAP-STEERING STEM
€ 4.00
11034
110341989
ref: 11034
GRSAUK
BRACKET,NUMBER PLATE
€ 12.50
11036
110361856
ref: 11036
BRACKET-A,SEAT COVER,
€ 27.50
11036A
110361857
ref: 11036A
BRACKET-A,SEAT COVER,
€ 20.50
13070
130701232
ref: 13070
GUIDE,HOSE
€ 2.50
32002
320021702
ref: 32002
EUGRSAUK
FRAME-COMP
€ 441.00
32097
320971032
ref: 32097
CASE-BATTERY
€ 24.50
32160
321601180
ref: 32160
NL
FRAME COMP
€ 441.00
35011
350111157
ref: 35011
STAY,REAR
€ 51.50
92001
920011958
ref: 92001
BOLT,FLANGED,8X70,BLA
€ 6.50
92002
920021547
ref: 92002
BOLT,FLANGED,8X128
€ 5.50
92009
920091275
ref: 92009
SCREW,6X14
€ 2.50
92009A
920091283
ref: 92009A
SCREW-PAN-WSP-CROS,6X
€ 2.50
92015
920151382
ref: 92015
NUT,STEERING STEM LOC
€ 10.50
92015A
92017014
ref: 92015A
GRSAUK
NUT,LOCK,6MM
€ 4.00
92022
92022125
ref: 92022
EUNL
WASHER,6.5X20X1.6
€ 1.00
92022
92022125
ref: 92022
GRSAUK
WASHER,6.5X20X1.6
€ 1.00
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048009
ref: 92048A
RACE,STRG STM
€ 14.00
92071
920711049
ref: 92071
GROMMET,SEAT COVER
€ 2.00
92072
92072010
ref: 92072
BAND,TOOL
€ 4.50
92072A
92072030
ref: 92072A
BAND,SHORT
€ 3.00
92072B
920721050
ref: 92072B
BAND,BATTERY
€ 5.50
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
