BRAKE PEDAL
AR50C8 1990 EUROPE UK NL GR SA

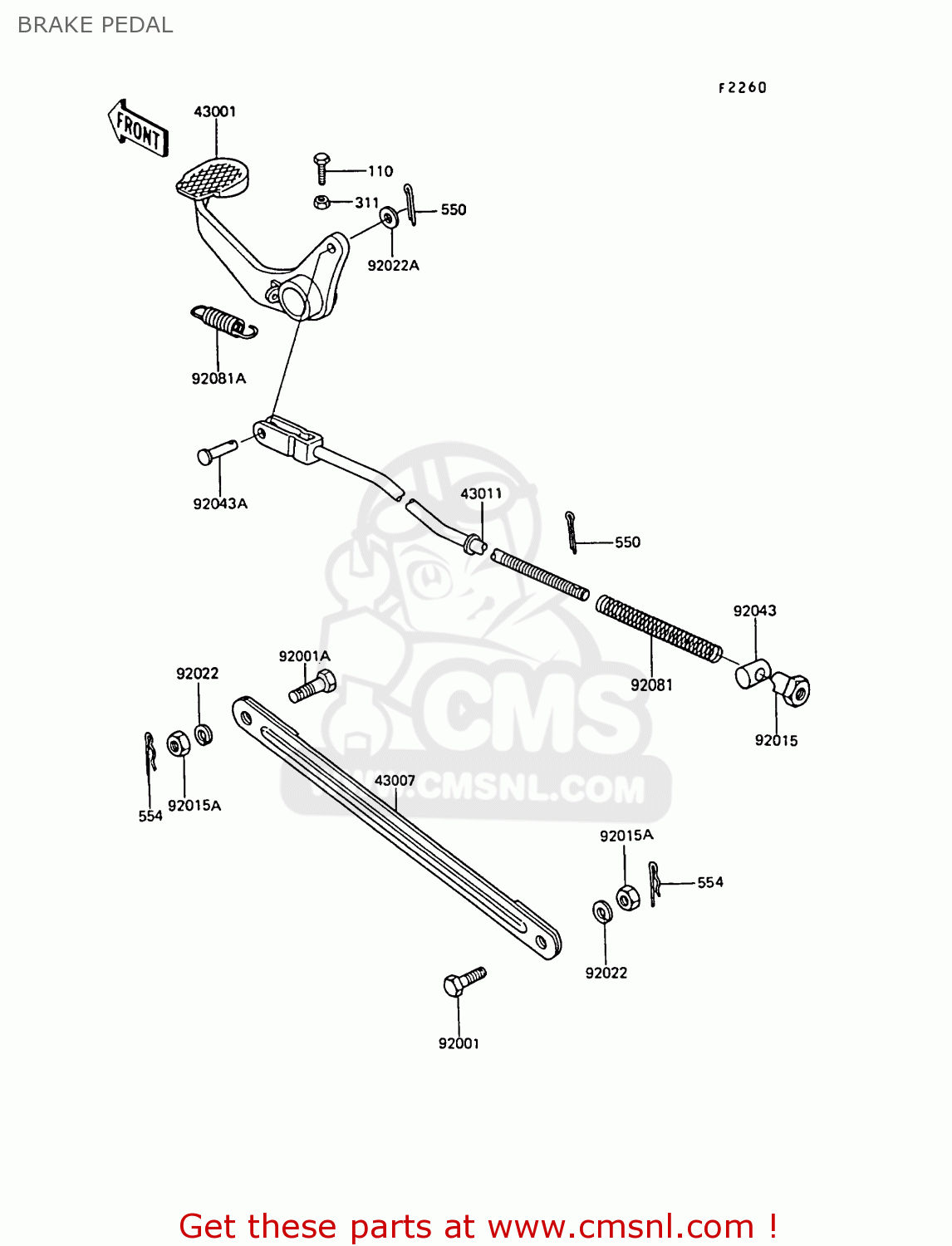

Brake pedal diagram AR50C8 1990 EUROPE UK NL GR SA
BRAKE PEDAL AR50C8 1990 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
110
110C0620
ref: 110
*** N.L.A.*** (Canada)
€ 2.50
311
311C0600
ref: 311
NUT-HEX,6MM,BLACK
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
43001
430011054
ref: 43001
LEVER-BRAKE,F.BLACK
€ 29.50
43007
430071142
ref: 43007
ROD-TORQUE
€ 22.50
43011
430111047
ref: 43011
ROD-BRAKE
€ 12.50
92001
92003003
ref: 92001
BOLT-HEX HEAD,10X32
€ 4.00
92001A
92003096
ref: 92001A
BOLT-TRQ LINK 10X29
€ 7.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92015A
920151416
ref: 92015A
NUT,10MM
€ 3.00
92022
920221540
ref: 92022
WASHER,SPRING,10MM
€ 2.50
92022A
920221556
ref: 92022A
WASHER,STEP,RR
€ 0.50
92043
92043039
ref: 92043
PIN,BRAKE ROD
€ 4.50
92043A
92043064
ref: 92043A
PIN-BRAKE ROD FITTING
€ 4.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92081A
920811044
ref: 92081A
SPRING,BRAKE RETURN
€ 7.50
