HEAD LAMP
AR50C8 1990 EUROPE UK NL GR SA

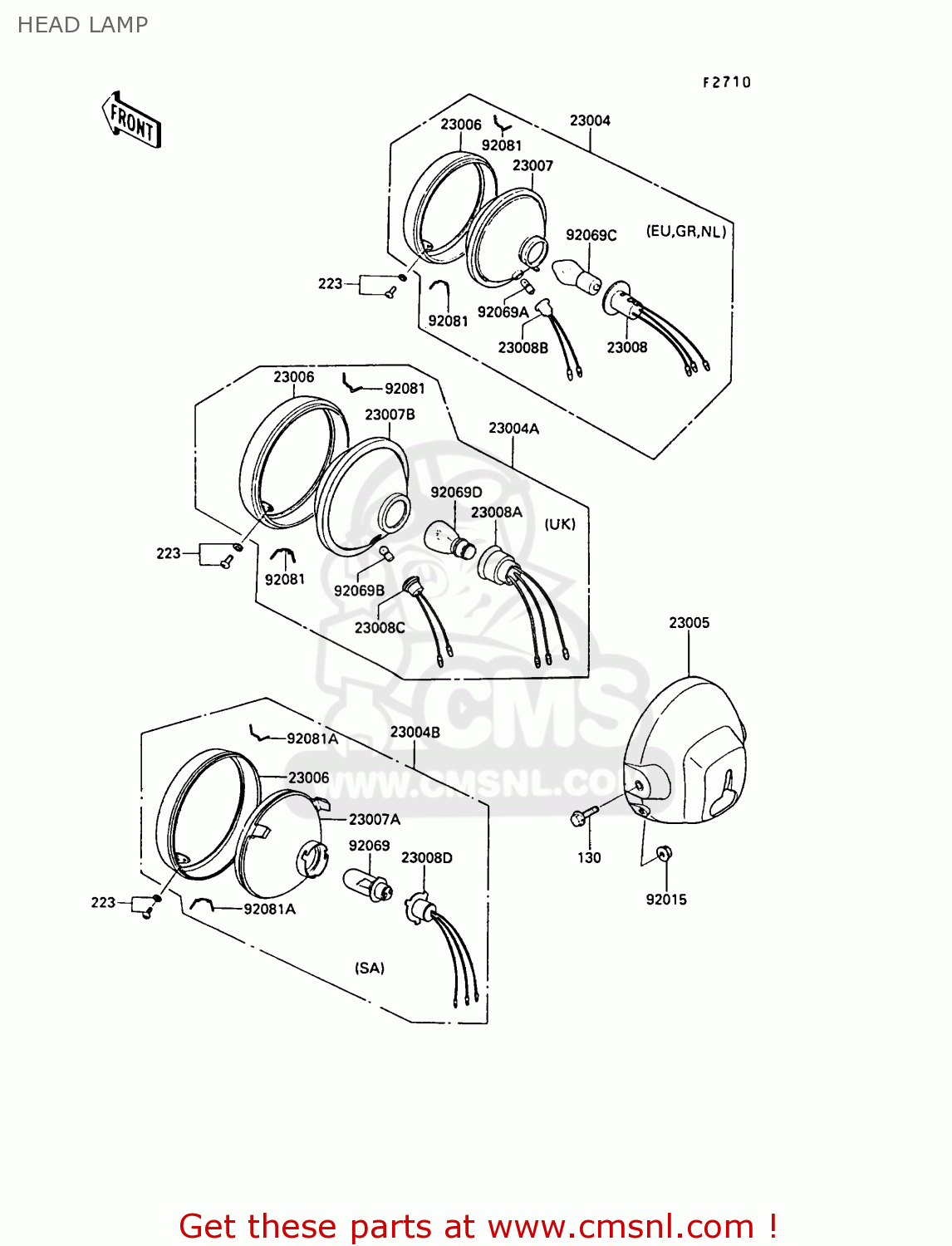

Head lamp diagram AR50C8 1990 EUROPE UK NL GR SA
HEAD LAMP AR50C8 1990 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
130
130C0820
ref: 130
BOLT-FLANGED,8X20
€ 0.50
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
23004
230041047
ref: 23004
EUGRNL
LAMP-HEAD
€ 131.50
23004A
230041049
ref: 23004A
UK
LAMP-HEAD
€ 153.00
23004B
230041051
ref: 23004B
SA
LAMP-HEAD
€ 122.50
23005
2300510176Z
ref: 23005
BODY-COMP-HEAD LAMP,B
€ 47.00
23006
230061009
ref: 23006
RIM-LAMP
€ 25.00
23007
230071014
ref: 23007
EUGRNL
LENS UNIT,HEAD LAMP
€ 54.50
23007A
230071028
ref: 23007A
SA
LENS-COMP,HEAD LAMP
€ 24.50
23007B
230071030
ref: 23007B
UK
LENS-COMP
€ 34.50
23008
230081079
ref: 23008
EUGRNL
SOCKET-ASSY
€ 22.00
23008A
230081080
ref: 23008A
UK
SOCKET-ASSY,HEAD LAMP
€ 15.50
23008B
230081084
ref: 23008B
EUGRNL
SOCKET-ASSY
€ 10.00
23008C
230081085
ref: 23008C
UK
SOCKET-ASSY
€ 13.00
23008D
230081094
ref: 23008D
SA
SOCKET-ASSY,HEAD LAMP
€ 15.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92069
92069031
ref: 92069
SA
BULB 6V 25/25W
€ 6.50
92069A
92069041
ref: 92069A
EUGRNL
BULB 6V 4W
€ 4.00
92069B
92069053
ref: 92069B
UK
BULB 6V 3W
€ 3.00
92069C
92069065
ref: 92069C
EUGRNL
BULB,6V 4W
€ 25.50
92069D
920691005
ref: 92069D
UK
BULB 6V 25/25W
€ 7.50
92081
23009015
ref: 92081
EUGRNLUK
SPRING,HEAD LAMP LENS
€ 3.50
92081A
920811367
ref: 92081A
SA
SPRING,HEAD LAMP
€ 3.50
