TAIL LAMP

AR50C5 1987 EUROPE UK GR

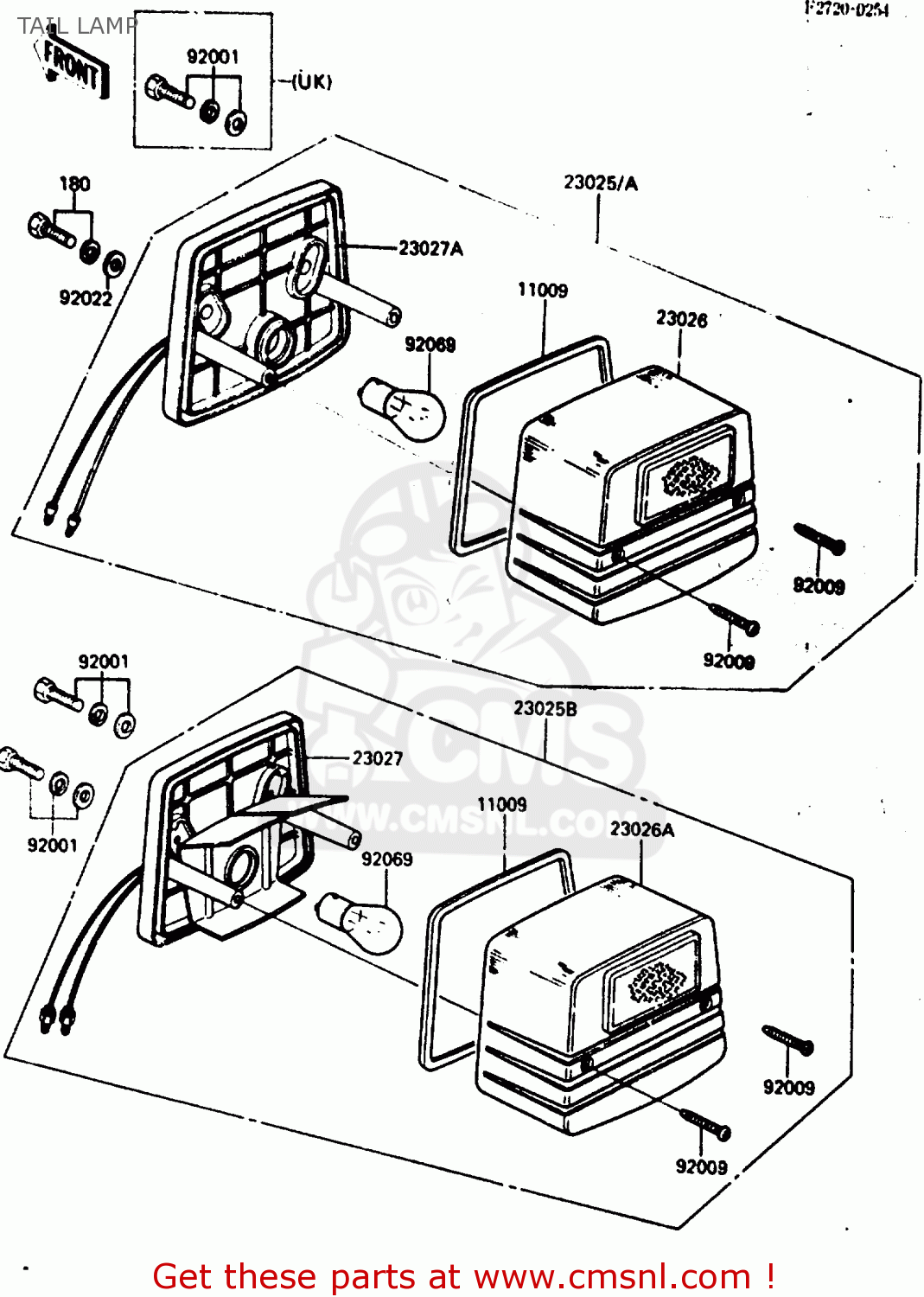

Tail lamp diagram AR50C5 1987 EUROPE UK GR

prices are in EUR

ref

part #

description

quantity

11009

110091215
ref: 11009

GASKET,TAIL LAMP (NAS)

€ 6.00

23025

230251044
ref: 23025
EU, GR

LAMP-TAIL

€ 65.00

23025B

230251136
ref: 23025B
UK

LAMP-TAIL

€ 65.00

23026

230261025
ref: 23026
EU, GR

LENS,TAIL LAMP

€ 32.50

23026A

230261077
ref: 23026A
UK

LENS,TAIL LAMP

€ 35.00

23027

230271012
ref: 23027
UK

BODY-COMP-TAIL LAMP

€ 32.50

23027A

230271016
ref: 23027A
EU, GR

BODY-COMP-TAIL LAMP

€ 27.00

92001

920011863
ref: 92001
UK

BOLT,6X16

€ 2.00

92009

920091089
ref: 92009

SCREW,CNTSNK 4X35

€ 2.00

92022

92022024
ref: 92022
EU, GR

WASHER,7X16X1.2

€ 2.50

92069

92069062
ref: 92069

BULB,6V 21/5W

€ 12.50

180

180B0616
ref: 180
EU, GR

BOLT-UPSET-WS

€ 0.50

TAIL LAMP

all assemblies
