FENDER
AR50C5 1987 EUROPE UK GR

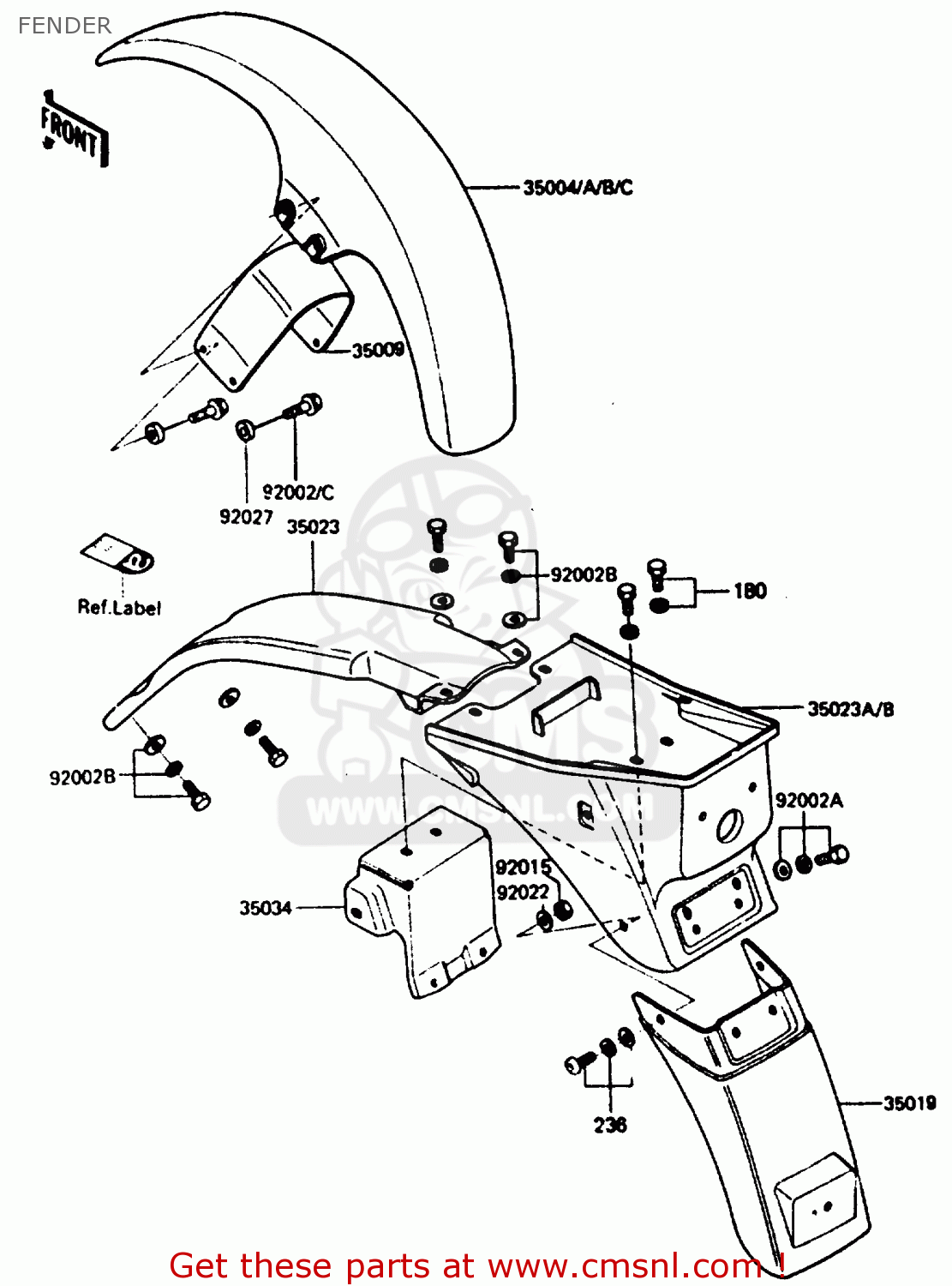

Fender diagram AR50C5 1987 EUROPE UK GR
FENDER AR50C5 1987 EUROPE UK GR
×
prices are in EUR
ref
part #
description
quantity
35004A
3500410576C
ref: 35004A
FENDER-FRONT,EBONY
€ 73.00
35004B
3500410576F
ref: 35004B
FENDER-FRONT,P.WHITE
€ 73.00
35009
350091023
ref: 35009
BRACE,FRONT FENDER
€ 12.00
35019
350191063
ref: 35019
EU, GR
FLAP,REAR FENDER
€ 18.00
35023
350231030
ref: 35023
FENDER-REAR,FR
€ 23.50
35023A
3502310516Z
ref: 35023A
UK
FENDER-REAR,RR,BLACK
€ 27.50
35023B
3502310526Z
ref: 35023B
EU, GR
FENDER-REAR,RR,BLACK
€ 27.50
35034
350341007
ref: 35034
REINFORCE,REAR FENDER
€ 62.50
92002
920021090
ref: 92002
EU
BOLT,6X16
€ 0.50
92022A
920021218
ref: 92022A
BOLT,6X14
€ 2.50
92002B
920021219
ref: 92002B
BOLT,6X16
€ 3.00
92002C
920021433
ref: 92002C
GR, UK
BOLT,FLANGED,6X12
€ 1.50
92015
920151421
ref: 92015
EU, GR
NUT,6MM
€ 1.50
92022
920221557
ref: 92022
EU, GR
WASHER,6.5X20X1.6
€ 1.00
92027
920271359
ref: 92027
COLLAR,6.5X8.5X3
€ 2.50
180
180B0618
ref: 180
BOLT-UPSET-WS
€ 0.50
236
236C0614
ref: 236
EU, GR
SCREW-PAN-WSP-CROS
€ 2.00
