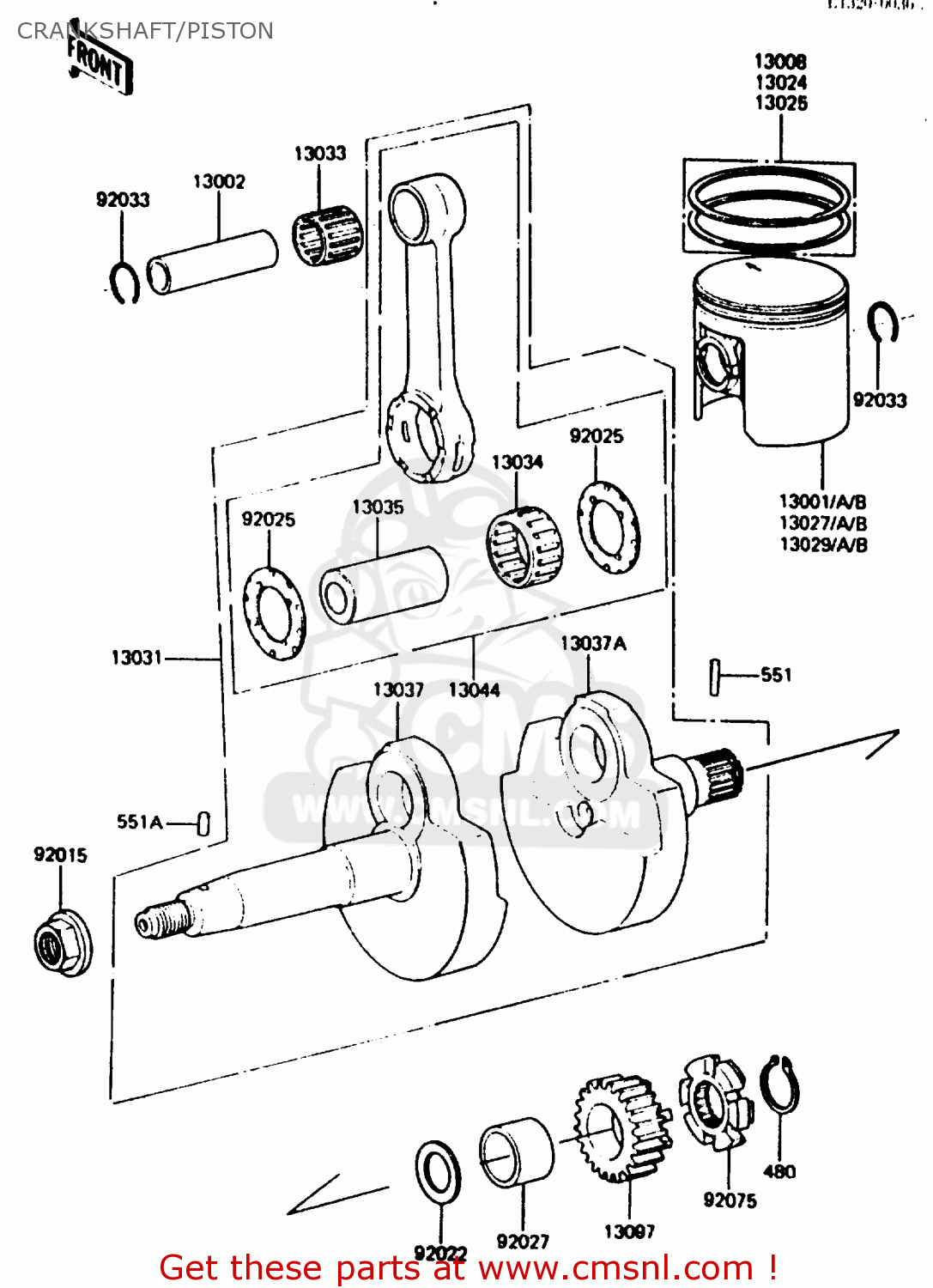

CRANKSHAFT/PISTON

ref

part #

description

quantity

13001

130011074
ref: 13001
GR

PISTON-ENGINE,STD

€ 32.50

13001A

130011173
ref: 13001A
UK

PISTON-ENGINE,STD

€ 31.50

13001B

130011202
ref: 13001B
EU

PISTON-ENGINE,STD

€ 31.50

13002

130021014
ref: 13002

PIN-PISTON

€ 10.50

13008

130085040
ref: 13008

RING-SET-PISTON,STD

€ 36.50

13024

130241008
ref: 13024

RING-SET-PISTON LL,O/

€ 33.00

13025

130251008
ref: 13025

RING-SET-PISTON L,O/S

€ 34.50

13027

130271023
ref: 13027
GR

PISTON-ENGINE LL,0/S

€ 38.50

13027A

130271119
ref: 13027A
UK

PISTON-ENGINE LL,O/S

€ 37.50

13027B

130271132
ref: 13027B
EU

PISTON-ENGINE LL,O/S

€ 15.00

13029A

130291118
ref: 13029A
UK

PISTON-ENGINE L,O/S 0

€ 39.00

13029B

130291133
ref: 13029B
EU

PISTON-ENGINE L,O/S 0

€ 36.50

13031

130311057
ref: 13031

CRANKSHAFT-COMP

€ 247.50

13033

130331009
ref: 13033

BEARING-SMALL END

€ 20.50

13034

130341029
ref: 13034

BEARING-BIG END,PK18X

€ 28.50

13035

130351055
ref: 13035

PIN-CRANK

€ 17.50

13037

130371009
ref: 13037

CRANKSHAFT,R.H

€ 104.50

13037A

130371110
ref: 13037A

CRANKSHAFT

€ 128.00

13044

130445020
ref: 13044

SET-CONNECTING ROD

€ 113.50

13097

130971052
ref: 13097

GEAR-PRIMARY SPUR

€ 36.50

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92022

92022268
ref: 92022

WASHER,16.3X24X1

€ 5.50

92025

920251199
ref: 92025

SHIM,CRANK SHAFT

€ 4.50

92027

920271358
ref: 92027

COLLAR,15.65X19X13

€ 4.50

92033

92036007
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92075

920751325
ref: 92075

DAMPER,GEAR

€ 18.00

480

480J1400
ref: 480

CIRCLIP-TYPE-C,14MM

€ 3.00

551

551A0212
ref: 551

PIN-DOWEL,2X12

€ 1.50

551A

551A0306
ref: 551A

PIN,DOWEL,3X6

€ 1.00

all assemblies
