HEAD LAMP
AR50C5 1987 EUROPE UK GR

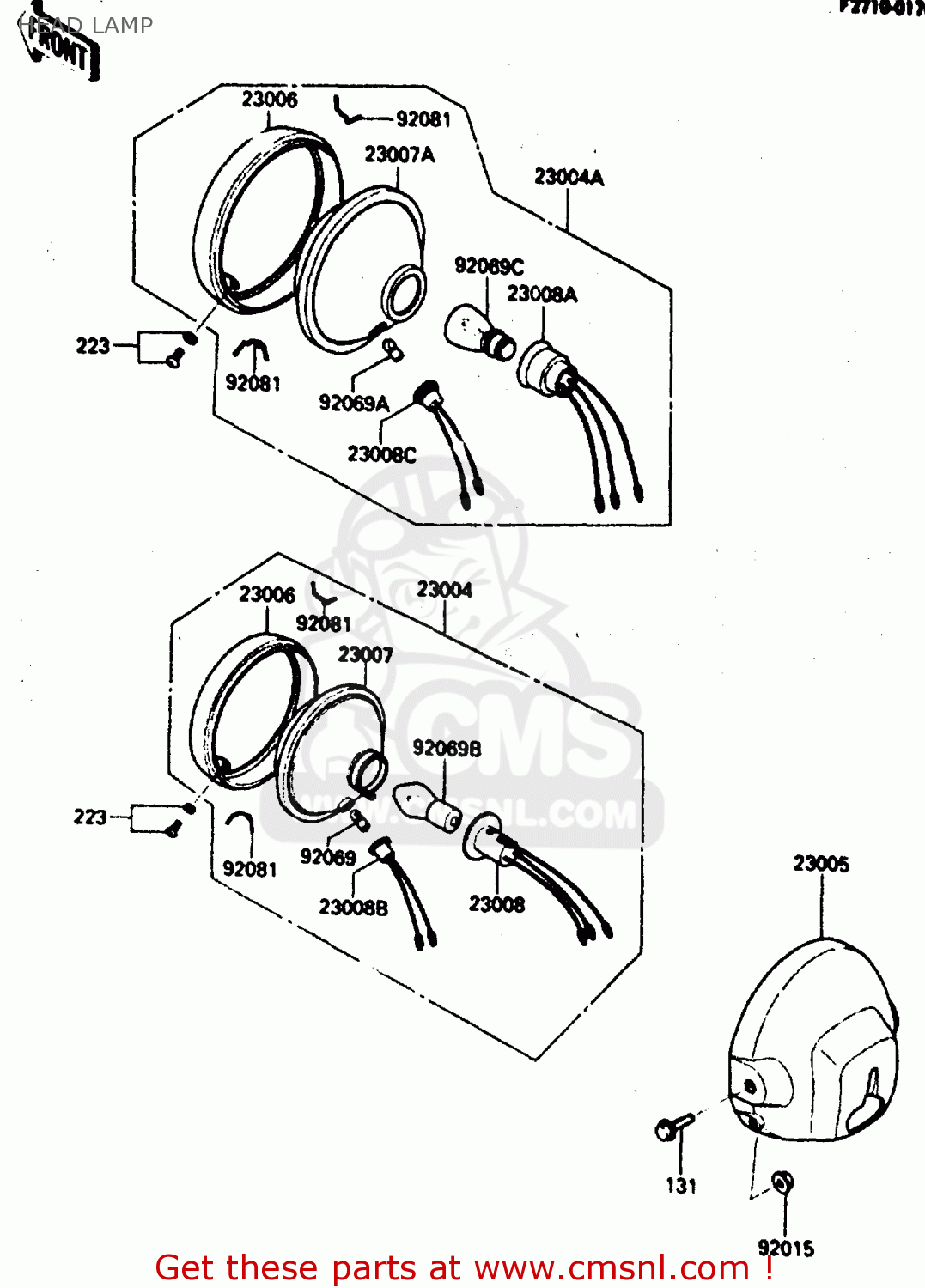

Head lamp diagram AR50C5 1987 EUROPE UK GR
HEAD LAMP AR50C5 1987 EUROPE UK GR
×
prices are in EUR
ref
part #
description
quantity
23004
230041047
ref: 23004
EU, GR
LAMP-HEAD
€ 131.50
23004A
230041049
ref: 23004A
UK
LAMP-HEAD
€ 153.00
23005
2300510176Z
ref: 23005
BODY-COMP-HEAD LAMP,B
€ 47.00
23006
230061009
ref: 23006
RIM-LAMP
€ 25.00
23007
230071014
ref: 23007
EU, GR
LENS UNIT,HEAD LAMP
€ 54.50
23007A
230071030
ref: 23007A
UK
LENS-COMP
€ 34.50
23008
230081079
ref: 23008
EU, GR
SOCKET-ASSY
€ 22.00
23008A
230081080
ref: 23008A
UK
SOCKET-ASSY,HEAD LAMP
€ 15.50
23008B
230081084
ref: 23008B
EU, GR
SOCKET-ASSY
€ 10.00
23008C
230081085
ref: 23008C
UK
SOCKET-ASSY
€ 13.00
92015
920151016
ref: 92015
NUT,16MM
€ 3.50
92069
92069041
ref: 92069
EU, GR
BULB 6V 4W
€ 4.00
92069A
92069053
ref: 92069A
UK
BULB 6V 3W
€ 3.00
92069B
92069063
ref: 92069B
EU, GR
BULB 12V 21/5W
€ 4.50
92069C
920691005
ref: 92069C
UK
BULB 6V 25/25W
€ 7.50
92081
23009015
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.50
131
131B0820
ref: 131
BOLT-FLANGED,8X20
€ 0.50
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
