FRONT FORK
AR50C5 1987 EUROPE UK GR

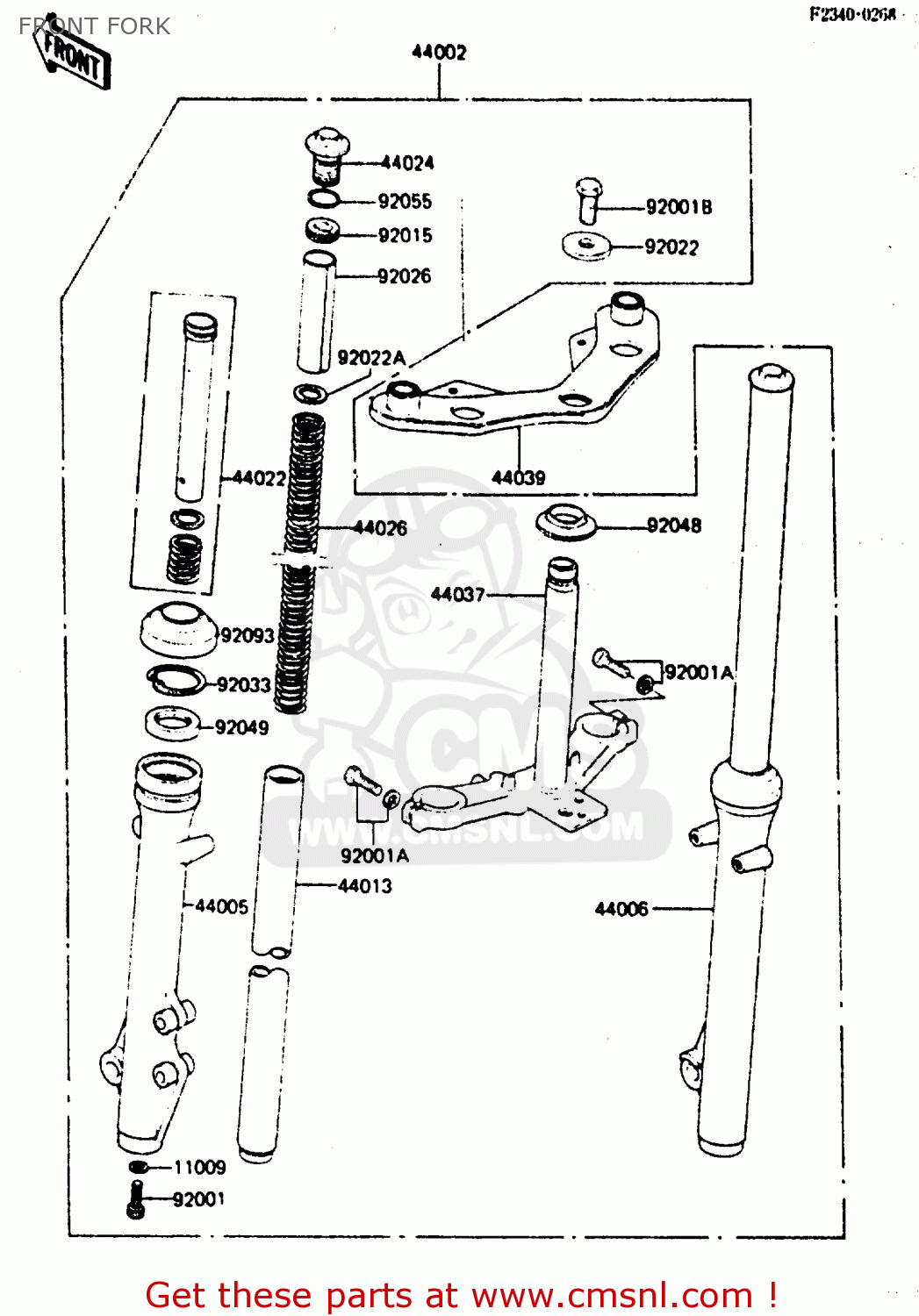

Front fork diagram AR50C5 1987 EUROPE UK GR
FRONT FORK AR50C5 1987 EUROPE UK GR
×
prices are in EUR
ref
part #
description
quantity
11009
44045057
ref: 11009
GASKET (NAS)
€ 3.00
44002
440021034
ref: 44002
FORK-COMP-FRONT
€ 982.50
44005
440051071
ref: 44005
PIPE-LEFT FORK OUTER
€ 144.50
44006
440061071
ref: 44006
PIPE-RIGHT FORK OUTER
€ 103.50
44013
440131063
ref: 44013
PIPE-FORK INNER
€ 83.50
44022
440221060
ref: 44022
CYLINDER-FORK
€ 61.00
44024
440241011
ref: 44024
CAP-OIL-LOCK
€ 11.50
44026
440261111
ref: 44026
SPRING, FRONT FORK
€ 22.50
44037
440371059
ref: 44037
HOLDER-FORK UNDER
€ 109.50
44039
440391037
ref: 44039
HOLDER-FORK UPPER
€ 71.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011469
ref: 92001A
BOLT8 8X30
€ 2.50
92001B
920011470
ref: 92001B
BOLT,10X20
€ 8.50
92015
920151192
ref: 92015
NUT,CAP,12MM,BLACK
€ 3.00
92022
920221267
ref: 92022
WASHER
€ 4.50
92022A
920221268
ref: 92022A
WASHER
€ 3.00
92026
920261097
ref: 92026
SPACER,L=130
€ 7.00
92033
920331003
ref: 92033
RING-SNAP
€ 3.50
92048
92047013
ref: 92048
CONE,STRG STM
€ 12.50
92049
920491006
ref: 92049
OIL SEAL, FORK OUTER
€ 10.00
92055
920551010
ref: 92055
'O' RING, FORK TOP
€ 1.00
92093
920931061
ref: 92093
SEAL,DUST
€ 10.50
