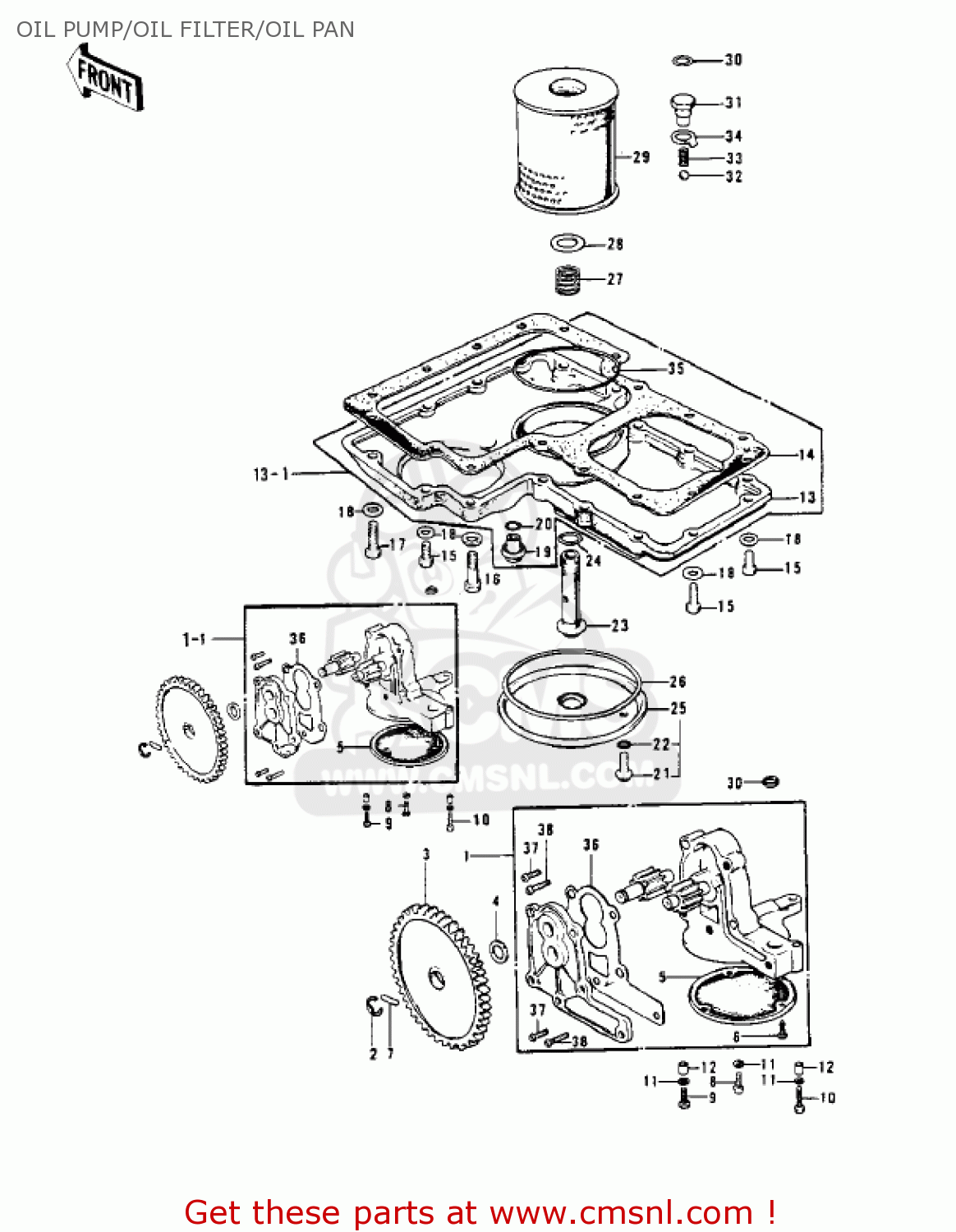

OIL PUMP/OIL FILTER/OIL PAN

ref

part #

description

quantity

1

16082036
ref: 1
Z1/1

OIL PUMP ASSY

€ 585.00

1-1

160825001
ref: 1-1
Z1-B

PUMP-ASSY-OIL

€ 585.00

2

482K7000
ref: 2

CIRCLIP-TYPE-E,7MM

€ 2.50

3

16085019
ref: 3

GEAR-OIL PUMP 49T

€ 70.00

4

92026080
ref: 4

WASHER-LOCK,16MM

€ 3.00

5

16111002
ref: 5
Z1/A, USE FOR 16082-

STRAINER-OIL

€ 21.00

5

16111004
ref: 5
Z1-B, USE FOR 16082-

FILTER,OIL PUMP

€ 23.50

6

220B0508
ref: 6

SCREW-PAN-CROS,5X8

€ 0.50

7

551A0314
ref: 7

PIN,DOWEL,3X14

€ 0.50

8

112G0622
ref: 8
Z1/A

BOLT-UPSET

€ 2.50

8

920011352
ref: 8
Z1-B

BOLT,FLANGED,6X22

€ 2.50

9

112G0635
ref: 9
Z1/A

BOLT-UPSET,6X35

€ 2.50

9

92001164
ref: 9
Z1-B

BOLT,6X35

€ 3.50

10

112G0645
ref: 10
Z1/A

BOLT-UPSET

€ 0.50

10

92001165
ref: 10
Z1-B

BOLT,HEX HEAD,6X45

€ 3.00

11

410B0600
ref: 11

WASHER-PLAIN-SMALL,6M

€ 0.50

12

92042007
ref: 12

PIN-DOWEL

€ 4.00

13

490345020
ref: 13
NO LONGER AVAILABLE

PAN-OIL

€ 165.00

13-1

490345020
ref: 13-1

PAN-OIL

€ 165.00

14

110601074
ref: 14

GASKET,OIL PAN (NAS)

€ 37.00

15

112G0625
ref: 15
Z1/A

BOLT-UPSET,6X25

€ 4.00

15

130G0625
ref: 15
Z1-B

BOLT,FLANGED,6X25

€ 0.50

16

110R0635
ref: 16
Z1/A

BOLT 6X35

€ 3.50

16

92003159
ref: 16
Z1-B

BOLT,HEX HEAD,6X34

€ 2.50

17

110G0650
ref: 17
Z1/A

BOLT,HEX HEAD,6X50

€ 1.00

17

130G0650
ref: 17
Z1-B

BOLT-FLANGED,6X50

€ 1.00

18

410B0600
ref: 18

WASHER-PLAIN-SMALL,6M

€ 0.50

19

920011183
ref: 19

BOLT,OIL DRAIN

€ 37.50

20

670B2022
ref: 20

O RING,22MM

€ 3.00

21

92066024
ref: 21

PLUG,30X8

€ 8.00

22

670B1508
ref: 22

O RING,8MM

€ 1.00

23

920011074
ref: 23

BOLT,OIL FILTER

€ 43.00

24

670B2022
ref: 24

O RING,22MM

€ 3.00

25

140251112
ref: 25

COVER,OIL FILTER

€ 19.50

26

671B25105
ref: 26

O-ring,105mm

€ 19.50

27

920811018
ref: 27

SPRING,OIL FILTER

€ 3.00

28

920221012
ref: 28

WASHER,20.5X30X1

€ 3.00

29

16099002
ref: 29

ELEMENT-OIL FILTER

€ 13.00

30

92055048
ref: 30

RING-O,OD=18

€ 3.00

31

92003095
ref: 31

BOLT

€ 10.50

32

600A1200
ref: 32

BALL-STEEL,3/8

€ 0.50

33

92081109
ref: 33

SPRING

€ 7.50

34

92024048
ref: 34

WASHER,LOCK

€ 2.00

35

92055052
ref: 35

RING-O,91.6X3.4

€ 6.00

36

16145001
ref: 36
Z1/A, USE FOR 16082-

GASKET,OIL PUMP (NAS)

€ 2.00

36

110091029
ref: 36
Z1-B, USE FOR 16082-

GASKET,OIL PUMP (NAS)

€ 6.00

37

220B0616
ref: 37

SCREW-PAN HEAD,6X16

€ 2.50

38

220B0628
ref: 38

SCREW-PAN HEAD,6X28

€ 2.50

all assemblies
