CYLINDER HEAD/COVER
Z1 1973 USA CANADA

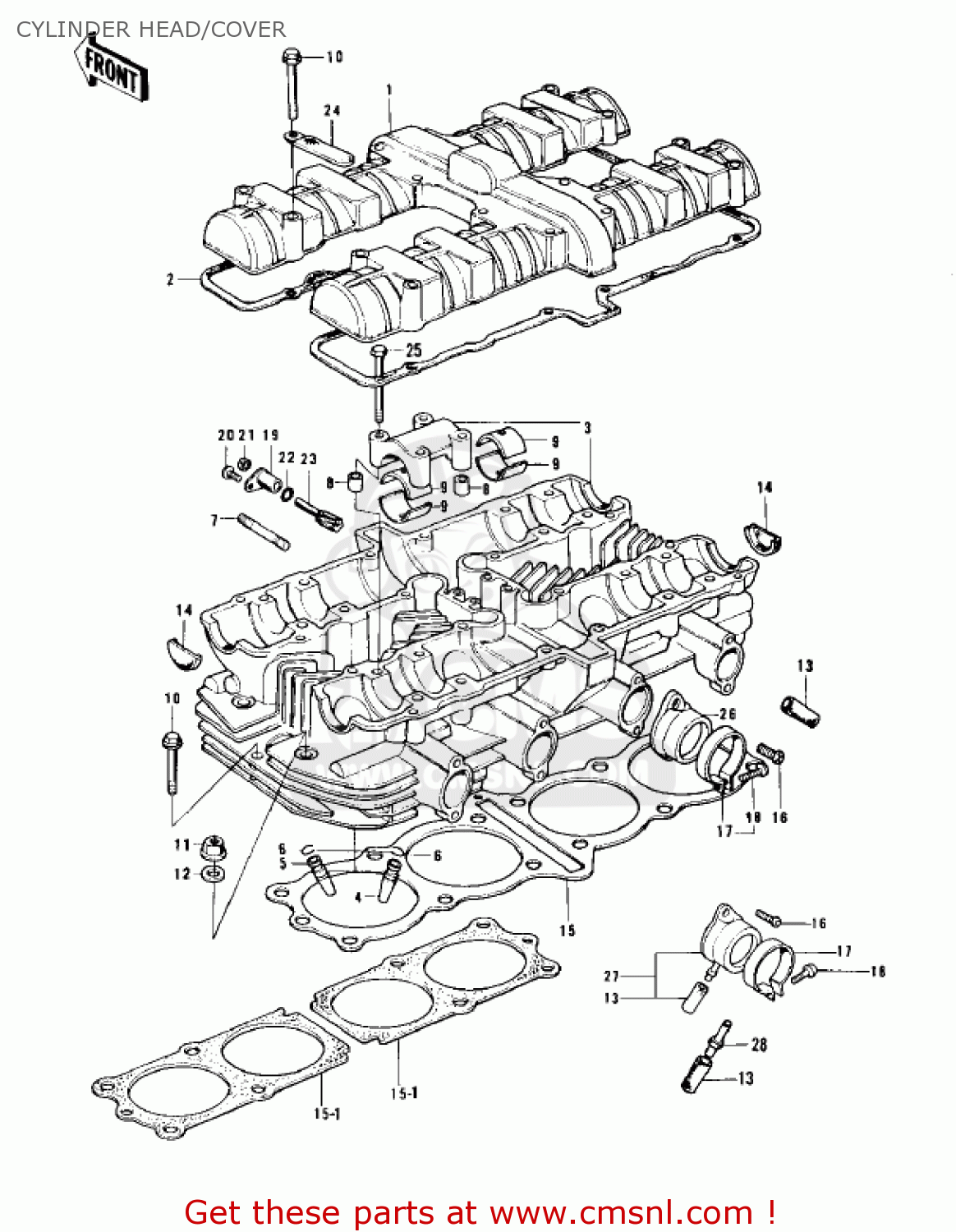

Cylinder head/cover diagram Z1 1973 USA CANADA
CYLINDER HEAD/COVER Z1 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
140251119
ref: 1
Z1
COVER,CYL HEAD,F.BLAC
€ 117.00
1
110220122H
ref: 1
Z1-A
COVER, CYLINDER HEAD
€ 234.00
2
11023006
ref: 2
GASKET-CYL HEAD COVER (MCA)
€ 99.50
3
11002012
ref: 3
Z1
CYLINDER HEAD
€ 1,352.00
3
110020162H
ref: 3
Z1-A/B
CYLINDER HEAD,BARREL
€ 1,059.00
4
12013001
ref: 4
GUIDE-VALVE,INTAKE
€ 54.00
5
12013002
ref: 5
GUIDE-VALVE,EXHAUST
€ 54.00
6
92036023
ref: 6
Z1
CIRCLIP,VALVE GUIDE
€ 0.50
6
92036023
ref: 6
Z1-A/B
CIRCLIP,VALVE GUIDE
€ 0.50
7
92004049
ref: 7
STUD,6X46
€ 5.50
8
92042007
ref: 8
PIN-DOWEL
€ 4.00
9
13034030
ref: 9
BUSHING,CAMSHAFT
€ 15.00
10
92003092
ref: 10
BOLT-HEX HEAD,6X45
€ 4.50
11
92015076
ref: 11
Z1
NUT,FLANGED CAP,10MM
€ 9.00
11
92015076
ref: 11
Z1-A/B
NUT,FLANGED CAP,10MM
€ 9.00
12
92022215
ref: 12
WASHER,10.5X22X1.6
€ 6.00
13
92068006
ref: 13
RUBBER PLUG
€ 2.50
14
92066017
ref: 14
PLUG,CAMSHAFT,14X7
€ 15.00
15
11004052
ref: 15
Z1
GASKET-CYLINDER HEAD (MCA)
€ 204.50
15-1
11004066
ref: 15-1
GASKET,CYLINDER HEAD (MCA)
€ 111.00
16
220B0618
ref: 16
SCREW-PAN HEAD,6X18
€ 2.50
17
92037077
ref: 17
CLAMP,HOLDER
€ 7.00
18
220B0520
ref: 18
SCREW-PAN-CROS
€ 0.50
19
920875001
ref: 19
GUIDE,TACHOMETER GEAR
€ 12.00
20
220B0612
ref: 20
SCREW-PAN HEAD,6X12
€ 1.00
21
92050075
ref: 21
OIL SEAL,TACHOMETER
€ 7.50
22
670B1510
ref: 22
O RING,9.8X1.9
€ 2.50
23
13223011
ref: 23
GEAR,TACHOMETER, 10T
€ 63.00
24
21126008
ref: 24
CLAMP,WIRING HARNESS
€ 3.00
25
92003092
ref: 25
BOLT-HEX HEAD,6X45
€ 4.50
26
16065028
ref: 26
Z1, --E/NO. 002200
HOLDER,CARBURETOR,RH
€ 67.00
26
16065028
ref: 26
Z1, E/NO. 002201--
HOLDER,CARBURETOR,RH
€ 67.00
26
16065028
ref: 26
Z1-A/B
HOLDER,CARBURETOR,RH
€ 67.00
27
16065028
ref: 27
Z1, --E/NO. 002200
HOLDER,CARBURETOR,RH
€ 67.00
27
16065029
ref: 27
Z1, E/NO. 002201--
HOLDER,CARBURETOR,LH
€ 67.00
27
16065029
ref: 27
Z1-A/B
HOLDER,CARBURETOR,LH
€ 67.00
28
92005005
ref: 28
Z1, --E/NO. 002200
NIPPLE
€ 7.00
