GENERATOR/STARTER MOTOR
Z1 1973 USA CANADA

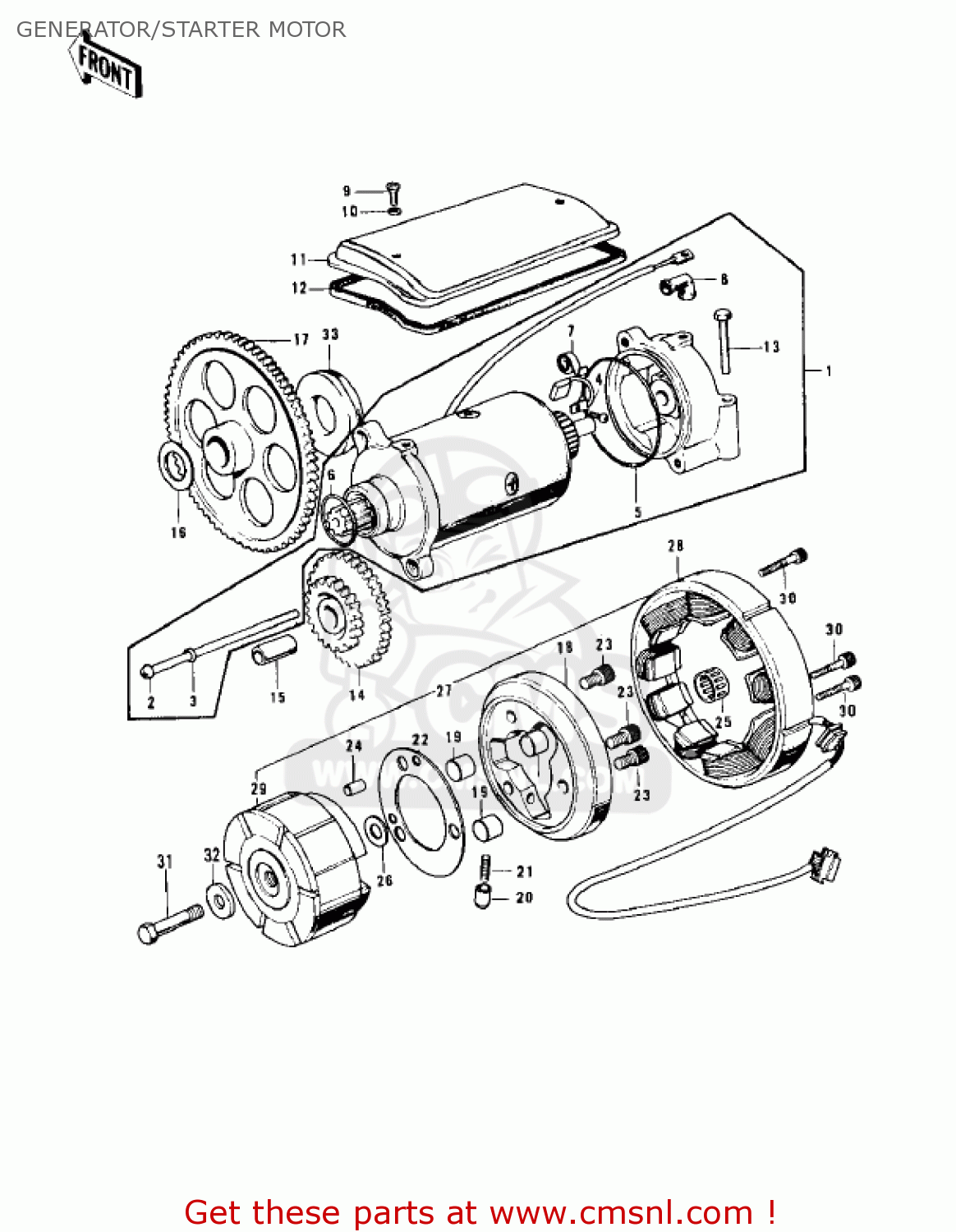

Generator/starter motor diagram Z1 1973 USA CANADA
GENERATOR/STARTER MOTOR Z1 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
21163001
ref: 1
MOTOR ASSY-STARTING
€ 367.50
2
21015005
ref: 2
SCREW-PAN HEAD,6X110
€ 5.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
21039003
ref: 4
BRUSH,CARBON
€ 23.50
5
21027003
ref: 5
RING-O,STARTER MOTOR
€ 6.00
6
21027004
ref: 6
ORING-STARTING MOTR
€ 6.50
7
21040003
ref: 7
SPRING-BRUSH
€ 4.50
8
21017017
ref: 8
GROMMET-CORD
€ 6.50
9
110R0610
ref: 9
BOLT,6X10
€ 5.00
10
410B0600
ref: 10
WASHER-PLAIN-SMALL,6M
€ 0.50
11
21165001
ref: 11
COVER,STARTER MOTOR
€ 30.00
12
21166001
ref: 12
GASKET,STARTER COVER (NAS)
€ 23.50
13
110B0656
ref: 13
BOLT
€ 3.00
14
21167002
ref: 14
GEAR-STARTING MOTOR
€ 89.00
15
13002007
ref: 15
PIN
€ 13.00
16
92026091
ref: 16
SPACER,PLAIN,22MM
€ 26.50
17
21167003
ref: 17
--E/NO. 06395
GEAR,STARTING CLUTCH
€ 436.00
17
21167003
ref: 17
E/NO. 06396--
GEAR,STARTING CLUTCH
€ 436.00
18
131931006
ref: 18
CLUTCH-ASSY-ONEWAY
€ 150.50
19
92122001
ref: 19
ROLLER,15X14.4
€ 7.50
20
92043087
ref: 20
PIN
€ 8.00
21
92081110
ref: 21
SPRING
€ 3.00
22
92026082
ref: 22
WASHER-FREE WHEEL
€ 6.50
23
120P0816
ref: 23
BOLT-SOCKET
€ 2.50
24
551A0622
ref: 24
PIN,DOWEL,6X22
€ 2.50
25
92046033
ref: 25
BEARING-NEEDLE,K22272
€ 25.50
26
92026092
ref: 26
--E/NO. 06395
SPACER,22X35.5X1.0
€ 8.50
26
92026092
ref: 26
E/NO. 06396--
SPACER,22X35.5X1.0
€ 8.50
27
21001024
ref: 27
DYNAMO ASSY
€ 458.50
28
21076014
ref: 28
STATOR
€ 808.50
29
21007029
ref: 29
--E/NO. 06395
ROTOR
€ 329.00
29
21007029
ref: 29
E/NO. 06396--
ROTOR
€ 329.00
30
120S0635
ref: 30
BOLT-SOCKET
€ 1.00
31
115G0840
ref: 31
115G0840
32
92022218
ref: 32
WASHER,PLAIN,8MM
€ 3.00
33
92075186
ref: 33
DAMPER RUBBER 6.3T
€ 11.50
33
92075187
ref: 33
DAMPER RUBBER 7.3T
€ 10.00
33
92075188
ref: 33
DAMPER RUBBER 8.3T
€ 9.00
33
92075192
ref: 33
E/NO. 06396--
DAMPER RUBBER
€ 17.00
33
92075193
ref: 33
E/NO. 06396--
DAMPER
€ 28.50
33
92075194
ref: 33
E/NO. 06396--
DAMPER
€ 28.50
