METERS/IGNITION SWITCH
Z1 1973 USA CANADA

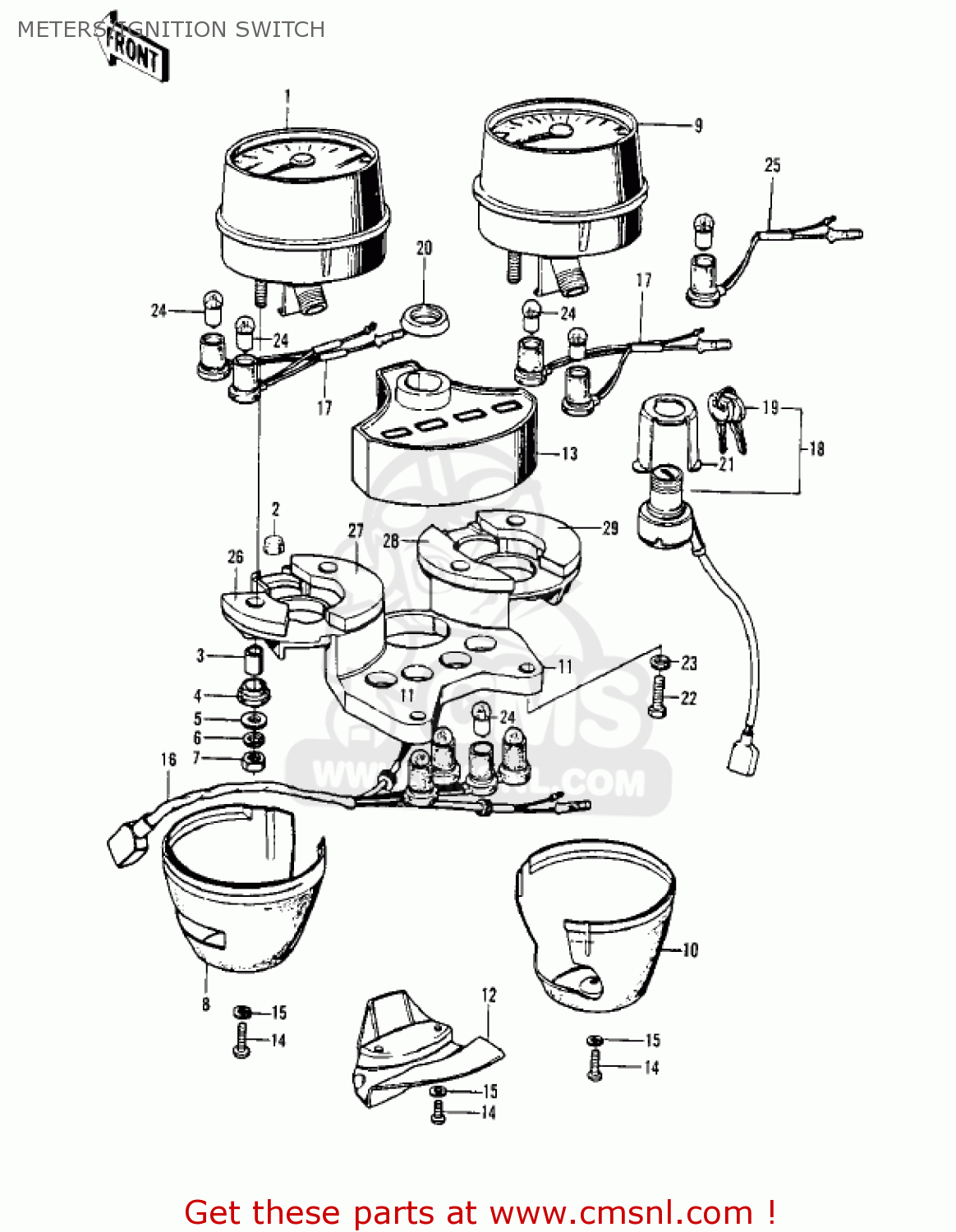

Meters/ignition switch diagram Z1 1973 USA CANADA
METERS/IGNITION SWITCH Z1 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
25005121
ref: 1
Z1/A
SPEEDOMETER ASSY,MPH
€ 354.00
1
25005121
ref: 1
Z1-B
SPEEDOMETER ASSY,MPH
€ 354.00
1
25001073
ref: 1
CANADA
METER-ASSY,KPH
€ 742.50
2
25019029
ref: 2
SHOCK DAMPER SOCKET
€ 1.50
3
92027211
ref: 3
COLLAR,5.6X8X13.8
€ 8.50
4
92075172
ref: 4
DAMPER
€ 12.50
5
92022241
ref: 5
WASHER,5.2X15X1.6
€ 2.50
6
461F0500
ref: 6
WASHER-SPRING,5MM
€ 0.50
7
312B0500A
ref: 7
NUT,5MM
€ 0.50
8
25012010
ref: 8
COVER,SPEEDOMETER
€ 89.50
9
25015025
ref: 9
Z1
TACHOMETER
€ 471.50
9
25015025
ref: 9
Z1-A/B
TACHOMETER
€ 471.50
10
25012011
ref: 10
COVER,TACHOMETER
€ 70.50
11
25008044
ref: 11
BRACKET-METER
€ 157.00
12
25024001
ref: 12
COVER,WIRING HARNESS
€ 48.00
13
25023011
ref: 13
Z1
COVER-METER
€ 108.50
13
25023011
ref: 13
Z1-A/B
COVER-METER
€ 108.50
14
220B0308A
ref: 14
SCREW-PAN HEAD,3X8
€ 0.50
15
461F0300
ref: 15
WASHER-SPRING,3MM
€ 0.50
16
25011026
ref: 16
Z1
SOCKET ASSY-INDICATOR
€ 50.00
16
25011042
ref: 16
Z1-A/B
SOCKET,INDICATOR LAMP
€ 39.50
17
25011027
ref: 17
SOCKET-ASSY,METER LAM
€ 33.50
18
27005042
ref: 18
SWITCH ASSY-IGNITION
€ 157.50
19
2700804651
ref: 19
KEY SET,#751
€ 34.50
19
2700804652
ref: 19
KEY SET,#752
€ 31.00
19
2700804653
ref: 19
KEY SET,#753
€ 34.50
19
2700804654
ref: 19
KEY SET,#754
€ 40.50
19
2700804655
ref: 19
KEY SET,#755
€ 18.00
19
270081013
ref: 19
KEY-LOCK,BLANK
€ 12.00
20
27007004
ref: 20
NUT,IGNITION SWITCH
€ 8.00
21
27019003
ref: 21
HOLDER,IGNITION SWITC
€ 10.50
22
110B0832
ref: 22
BOLT-HEX HEAD,8X32
€ 1.50
23
461F0800
ref: 23
WASHER-SPRING,8MM
€ 0.50
24
92069018
ref: 24
BULB 12V 3W
€ 4.00
25
25011043
ref: 25
Z1-A/B
SOCKET,TACHOMETER
€ 48.00
26
25019025
ref: 26
SPEEDOMETER SHOCK DAMPER,A
€ 9.50
27
25019026
ref: 27
SPEEDOMETER SHOCK DAMPER,B
€ 12.00
28
25019027
ref: 28
TACHOMETER SHOCK DAMPER,A
€ 8.00
29
25019028
ref: 29
TACHOMETER SHOCK DAMPER,B
€ 12.00
