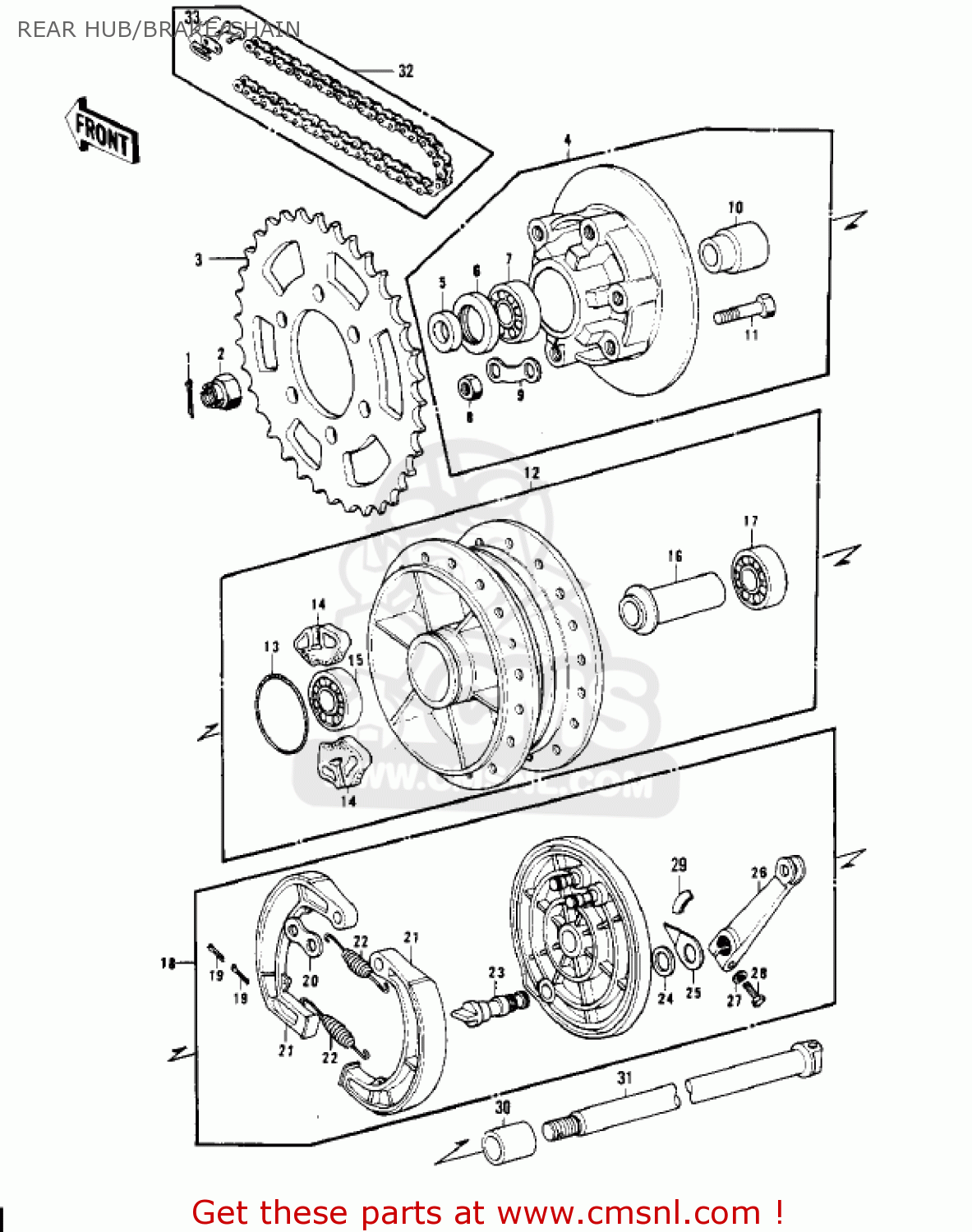

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92015055
ref: 2

NUT,16MM

€ 8.00

3

42041138
ref: 3
STD

REAR SPROCKET,41T

€ 54.00

3

42041063
ref: 3

REAR SPROCKET 38T

€ 37.00

3

42041102
ref: 3
OPTION

REAR SPROCKET 43T

€ 44.50

4

42008020
ref: 4

COUPLING ASSY,RR BRK

€ 213.00

5

42037024
ref: 5

COLLAR,COUPLING

€ 15.50

6

92052006
ref: 6

OIL SEAL WTC35527

€ 6.50

7

601B6205
ref: 7

BEARING-BALL,#6205C3

€ 14.00

8

314B1000
ref: 8

NUT,10MM

€ 0.50

9

92088005
ref: 9

WASHER,SPROCKET LOCK

€ 4.00

10

42036019
ref: 10

SLEEVE,COUPLING

€ 32.50

11

92003087
ref: 11

BOLT-RR SPRCKT 10X49

€ 4.00

12

4200504480
ref: 12

DRUM ASY,RR BRK,BUFF

€ 447.00

12-1

410345001
ref: 12-1

DRUM ASSY,RR W/PANEL

€ 331.00

13

671B2560
ref: 13

O RING,60MM

€ 1.50

14

42014008
ref: 14

DAMPER,RR HUB SHOCK

€ 24.50

15

601B6303
ref: 15

BEARING-BALL,#6303C3

€ 24.00

16

42010027
ref: 16

SPACER,RR HUB BEARNG

€ 14.50

16

42010008
ref: 16

SPACER-RR HUB BEARING

€ 4.50

17

601B6303Z
ref: 17

BEARING-BALL,#6303ZC3

€ 17.50

18

4200606080
ref: 18

PANEL ASSY,REAR BRAKE

€ 163.50

19

550D2025
ref: 19

PIN-COTTER,2.0X25

€ 2.00

20

41045007
ref: 20

WASHER,BRAKE SHOE

€ 4.00

21

42019003
ref: 21

SHOE-REAR BRAKE (MCA)

€ 24.50

22

41049003
ref: 22

SPRING-BRAKE SHOE

€ 2.50

23

42026015
ref: 23

CAM SHAFT,REAR BRAKE

€ 30.00

24

41051001
ref: 24

DUST SHIELD-BRAKE CAM

€ 2.50

25

41085009
ref: 25

INDICATOR,FRONT BRAKE

€ 7.50

26

42029037
ref: 26

LEVER,REAR BRAKE CAM

€ 27.50

27

410B0600
ref: 27

WASHER-PLAIN-SMALL,6M

€ 0.50

28

112G0625
ref: 28

BOLT-UPSET,6X25

€ 4.00

29

41084001
ref: 29

LABEL,BRAKE SHOE

€ 1.00

30

42032049
ref: 30

COLLAR,REAR AXLE

€ 6.50

31

42031047
ref: 31

AXLE,REAR

€ 39.00

32

92057085
ref: 32
#530 X 104L

CHAIN ASSY,DRIVE,104L

€ 61.50

33

92058008
ref: 33
#530

JOINT-CHAIN

€ 4.00
