METERS/IGNITION SWITCH
S3A MACH II 1975 USA CANADA

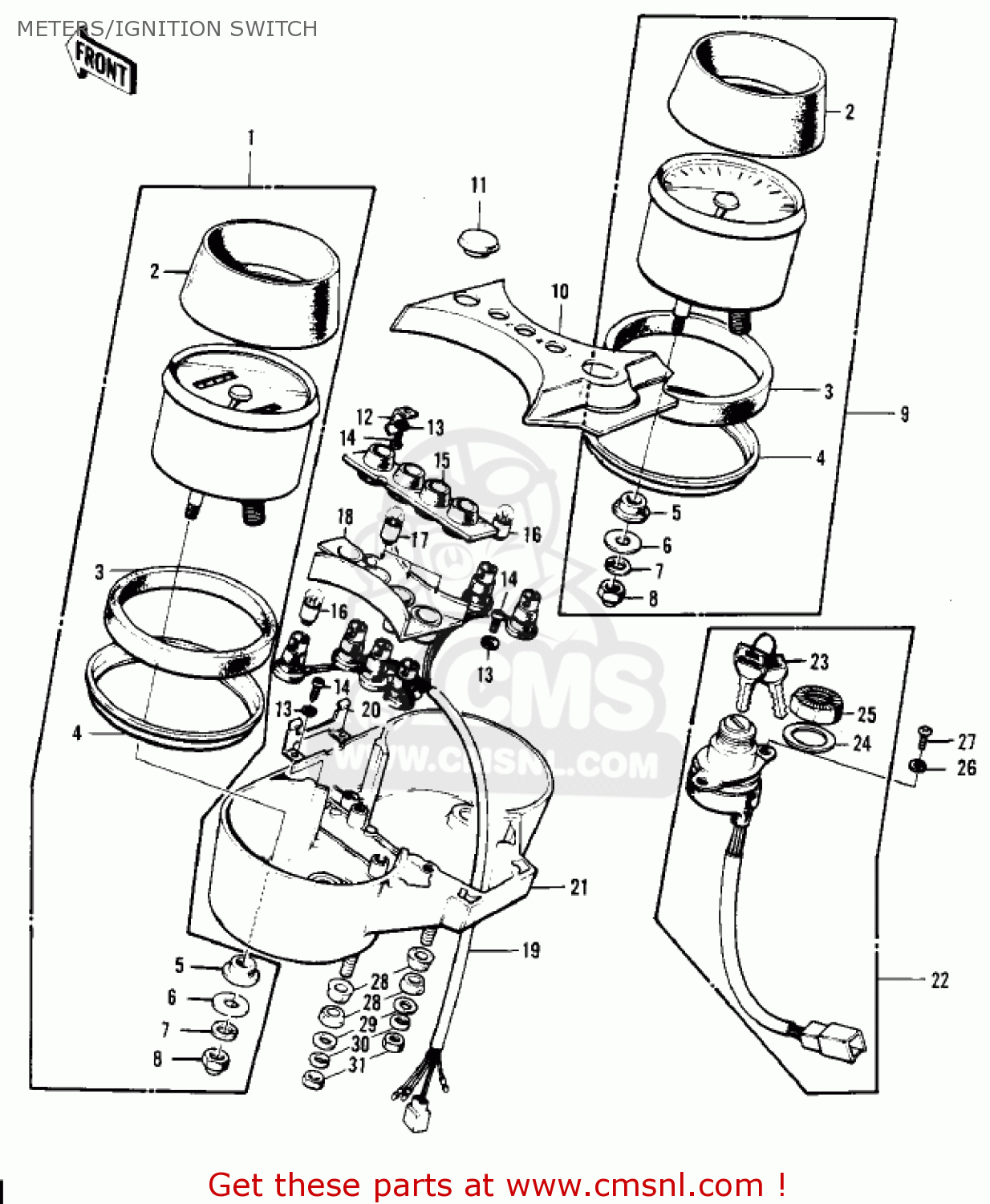

Meters/ignition switch diagram S3A MACH II 1975 USA CANADA
METERS/IGNITION SWITCH S3A MACH II 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
25005124
ref: 1
SPEADOMETER ASSY,MPH
€ 329.50
1
25005076
ref: 1
SPEEDOMETER ASSY,KPH
€ 172.50
2
25012012
ref: 2
COVER-METER
€ 12.00
3
25019015
ref: 3
DAMPER RUBBER-METER
€ 3.50
4
25026001
ref: 4
RING-METER
€ 10.50
5
25019013
ref: 5
DAMPER,METER
€ 3.50
6
411B0500
ref: 6
WASHER-PLAIN,5MM
€ 0.50
7
461F0500
ref: 7
WASHER-SPRING,5MM
€ 0.50
8
92015059
ref: 8
NUT-CAP,5MM
€ 3.50
9
25016020
ref: 9
TACHOMETER ASSY
€ 213.50
10
25023009
ref: 10
COVER,METER CASE
€ 47.50
11
92074032
ref: 11
PLUG,RUBBER
€ 2.50
12
25014004
ref: 12
HOLDER B-METR CSE COV
€ 1.50
13
461F0400
ref: 13
WASHER-SPRING,4MM
€ 0.50
14
220B0408
ref: 14
SCREW-PAN-CROS
€ 0.50
15
25019014
ref: 15
DAMPER-METER BKT SHCK
€ 3.50
16
92069018
ref: 16
BULB 12V 3W
€ 4.00
17
92069017
ref: 17
BULB 12V 1.5W
€ 4.00
18
25023003
ref: 18
COVER,METER SOCKET
€ 4.50
19
25011030
ref: 19
SOCKET,SPEEDOMETER
€ 27.50
20
25014003
ref: 20
HOLDER A-METER CASE
€ 4.50
21
25008026
ref: 21
CASE-METER
€ 118.50
22
270051021
ref: 22
SWITCH ASSY,IGNITION
€ 136.50
23
2700805501
ref: 23
KEY SET, #901
€ 17.00
23
2700805502
ref: 23
KEY SET,#902
€ 17.00
23
2700805503
ref: 23
KEY SET,#903
€ 18.50
23
2700805504
ref: 23
KEY SET,#904
€ 9.00
23
2700805505
ref: 23
KEY SET,#905
€ 18.50
23
2700805506
ref: 23
KEY SET,#906
€ 17.00
23
2700805507
ref: 23
KEY SET,#907
€ 18.50
23
2700805508
ref: 23
KEY SET,#908
€ 17.00
23
2700805509
ref: 23
KEY SET,#909
€ 17.00
23
2700805510
ref: 23
KEY SET,#910
€ 18.50
23
270081024
ref: 23
KEY-LOCK,BLANK
€ 14.00
23
270081025
ref: 23
KEY-LOCK,BLANK
€ 14.00
24
27019002
ref: 24
WASHER-IGNITION SW
€ 3.00
25
27007003
ref: 25
NUT-IGNITION SWITCH
€ 4.00
26
461F0500
ref: 26
WASHER-SPRING,5MM
€ 0.50
27
220B0508
ref: 27
SCREW-PAN-CROS,5X8
€ 0.50
28
92075080
ref: 28
DAMPER
€ 5.50
29
411B0800
ref: 29
WASHER-PLAIN,8MM
€ 0.50
30
461F0800
ref: 30
WASHER-SPRING,8MM
€ 0.50
31
311B0800
ref: 31
NUT,8MM
€ 0.50
