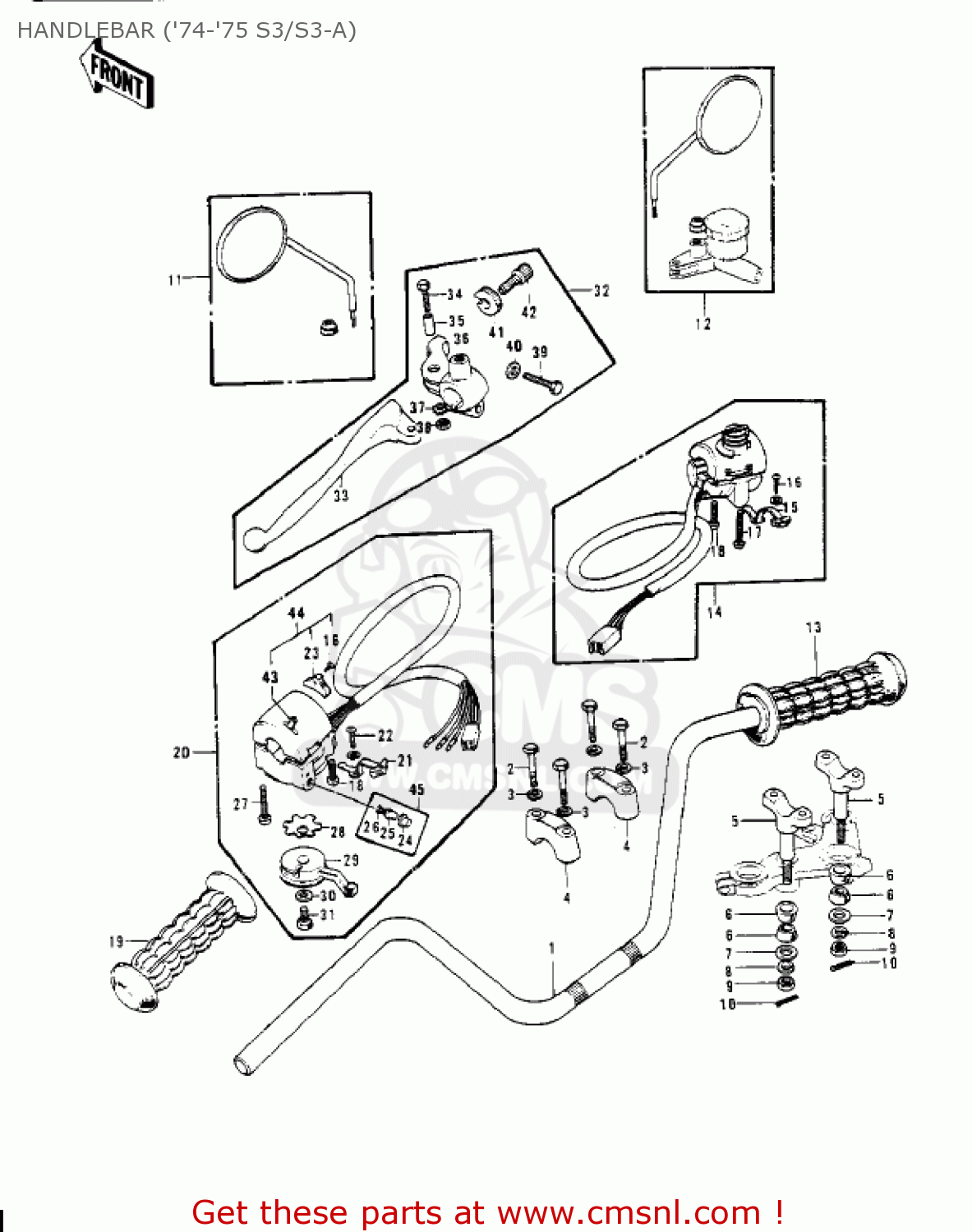

HANDLEBAR ('74-'75 S3/S3-A)

ref

part #

description

quantity

1

46003030
ref: 1

HANDLE

€ 136.00

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46012010
ref: 5

HOLDER-HANDLE,LWR

€ 20.00

6

92075039
ref: 6

DAMPER RUBBER-HANDLE

€ 3.00

7

46016003
ref: 7

PLATE,HANDLE HOLDER

€ 3.50

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

554A0800
ref: 10

PIN-SNAP,8MM

€ 1.00

11

56003009
ref: 11

MIRROR-ASSY,LH

€ 50.00

12

56002020
ref: 12
OPTION

MIRROR-ASSY,RH

€ 47.50

13

46019023
ref: 13

GRIP ASSY-THROTTLE

€ 13.50

14

46132007
ref: 14
S3

CASE ASSEMBLY,RH

€ 140.00

14

46132017
ref: 14
S3-A

CASE ASSEMBLY,RH

€ 308.50

15

46043006
ref: 15

KNOB-ASSY,LIGHTING SW

€ 8.00

16

220B0305A
ref: 16

SCREW-PAN HEAD,3X5

€ 1.00

17

220B0535
ref: 17

SCREW-PAN-CROS

€ 2.00

18

220B0522
ref: 18

SCREW-PAN-CROS

€ 0.50

19

46075017
ref: 19

GRIP,LH

€ 15.50

20

46091014
ref: 20
S3

CASE ASSEMBLY,LH

€ 308.50

20

46091047
ref: 20
S3-A

CASE ASSEMBLY,LH

€ 280.50

21

46043005
ref: 21

KNOB-LIGHTING SW L.H

€ 6.50

22

221B0308A
ref: 22

SCREW-CNTSNK HD,3X8

€ 2.50

23

46044013
ref: 23

KNOB,LIGHTING SWITCH,

€ 8.00

24

270101009
ref: 24
NO LONGER AVAILABLE

SWITCH ASSY,HORN BUTN

€ 5.50

25

270101009
ref: 25
NO LONGER AVAILABLE

SWITCH ASSY,HORN BUTN

€ 5.50

26

270101009
ref: 26
NO LONGER AVAILABLE

SWITCH ASSY,HORN BUTN

€ 5.50

27

220B0530
ref: 27

SCREW-PAN-CROS

€ 2.00

28

92095012
ref: 28

WASHER-LOCK

€ 3.50

29

46096009
ref: 29

LEVER,STARTER

€ 15.50

30

410B0600
ref: 30

WASHER-PLAIN-SMALL,6M

€ 0.50

31

112B0608
ref: 31

BOLT-HEX,HEAD,6X8

€ 0.50

32

46076044
ref: 32
S3

LEVER-ASSY-GRIP,CLUTC

€ 48.00

32

46076025
ref: 32
S3-A

LEVER ASSY-CLUTCH

€ 29.00

33

46092015
ref: 33
S3

LEVER-GRIP,CLUTCH

€ 11.50

33

46092015
ref: 33
S3-A

LEVER-GRIP,CLUTCH

€ 11.50

34

92007020
ref: 34

BOLT-HEX HEAD,5X20

€ 2.50

35

46059011
ref: 35

COLLAR,LEVER

€ 3.50

36

4609401121
ref: 36

HOLDER-CLUTCH LEV,BLK

€ 23.00

37

464H0500
ref: 37

WASHER-LOCK,5MM

€ 0.50

38

312B0500
ref: 38

NUT-HEX,5MM

€ 0.50

39

110N0625
ref: 39

BOLT-HEX HEAD,6X25

€ 3.50

40

410B0600
ref: 40

WASHER-PLAIN-SMALL,6M

€ 0.50

41

46056005
ref: 41

NUT-LOCK

€ 6.00

42

46055003
ref: 42
S3

SCREW-CABLE ADJUST

€ 11.50

42

46055006
ref: 42
S3-A

SCREW-CABLE ADJUST

€ 15.50

43

46089016
ref: 43
S3

SWITCH ASSEMBLY,LH

€ 22.00

43

46089014
ref: 43
S3-A

SWITCH, L.H

€ 15.00

44

99990530
ref: 44
INCLUDES REF. #'S 16

DIMMER SWITCH KIT A

€ 1.00

45

270101009
ref: 45
INCLUDES REF. #'S 24

SWITCH ASSY,HORN BUTN

€ 5.50

all assemblies
