CRANKCASE ('74-'75 S3/S3-A)
S3A MACH II 1975 USA CANADA

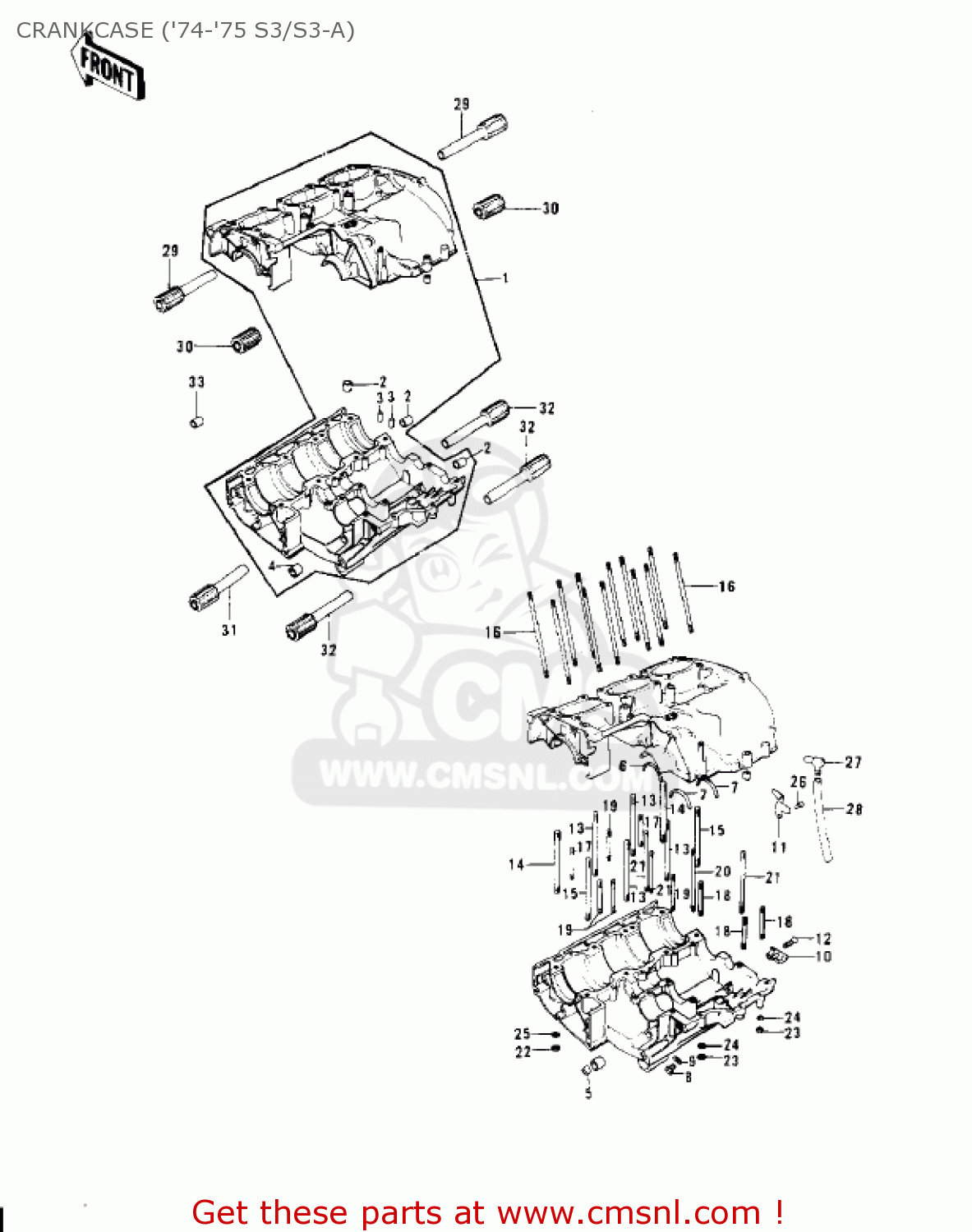

Crankcase ('74-'75 s3/s3-a) diagram S3A MACH II 1975 USA CANADA
CRANKCASE ('74-'75 S3/S3-A) S3A MACH II 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14001059
ref: 1
CRANKCASE SET
€ 1,037.00
2
920431037
ref: 2
PIN,DOWEL,10X8.2X14
€ 0.50
3
92042016
ref: 3
PIN,DOWEL,6X16
€ 3.50
4
92028071
ref: 4
BUSHING,12X20X20
€ 54.00
5
92049004
ref: 5
OIL SEAL SB12205
€ 6.00
6
14013013
ref: 6
RING-POSITION,T=1.90
€ 7.50
7
14013004
ref: 7
RING-BEARING SETTING
€ 7.00
8
92067001
ref: 8
PLUG-OIL DRAIN
€ 3.00
9
92065058
ref: 9
GASKET, 10,5X16X1 (NAS)
€ 2.50
10
14015001
ref: 10
RECEIVER-OIL
€ 3.50
11
14015003
ref: 11
RECEIVER-OIL
€ 2.00
12
221B0616
ref: 12
SCREW-CNTSNK HD,6X16
€ 0.50
13
172G1055
ref: 13
STUD,10X55
€ 4.00
14
172G1070
ref: 14
STUD,10X70
€ 6.00
15
172G1080
ref: 15
STUD,10X80
€ 6.00
16
172G0865
ref: 16
STUD,8X65
€ 4.50
17
172G0622
ref: 17
STUD,6X22
€ 1.00
18
172G0635
ref: 18
STUD,6X35
€ 3.00
19
172G0645
ref: 19
STUD,6X45
€ 1.00
20
172G0650
ref: 20
STUD,6X50
€ 5.50
21
172G0665
ref: 21
STUD,6X65
€ 1.00
22
317B1000
ref: 22
NUT,10MM
€ 0.50
23
311B0600
ref: 23
NUT,6MM
€ 0.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
461F1000
ref: 25
WASHER-SPRING,10MM
€ 0.50
26
220B0610
ref: 26
SCREW-PAN HEAD,6X10
€ 2.00
27
14069003
ref: 27
BREATHER
€ 7.00
28
92059061
ref: 28
PIPE-BREATHER
€ 3.00
29
14017002
ref: 29
DAMPER RUBBER
€ 6.50
30
14017004
ref: 30
DAMPER RUBBER
€ 6.50
31
14017009
ref: 31
DAMPER RUBBER
€ 10.00
32
14017003
ref: 32
DAMPER RUBBER
€ 10.50
33
92042007
ref: 33
PIN-DOWEL
€ 4.00
