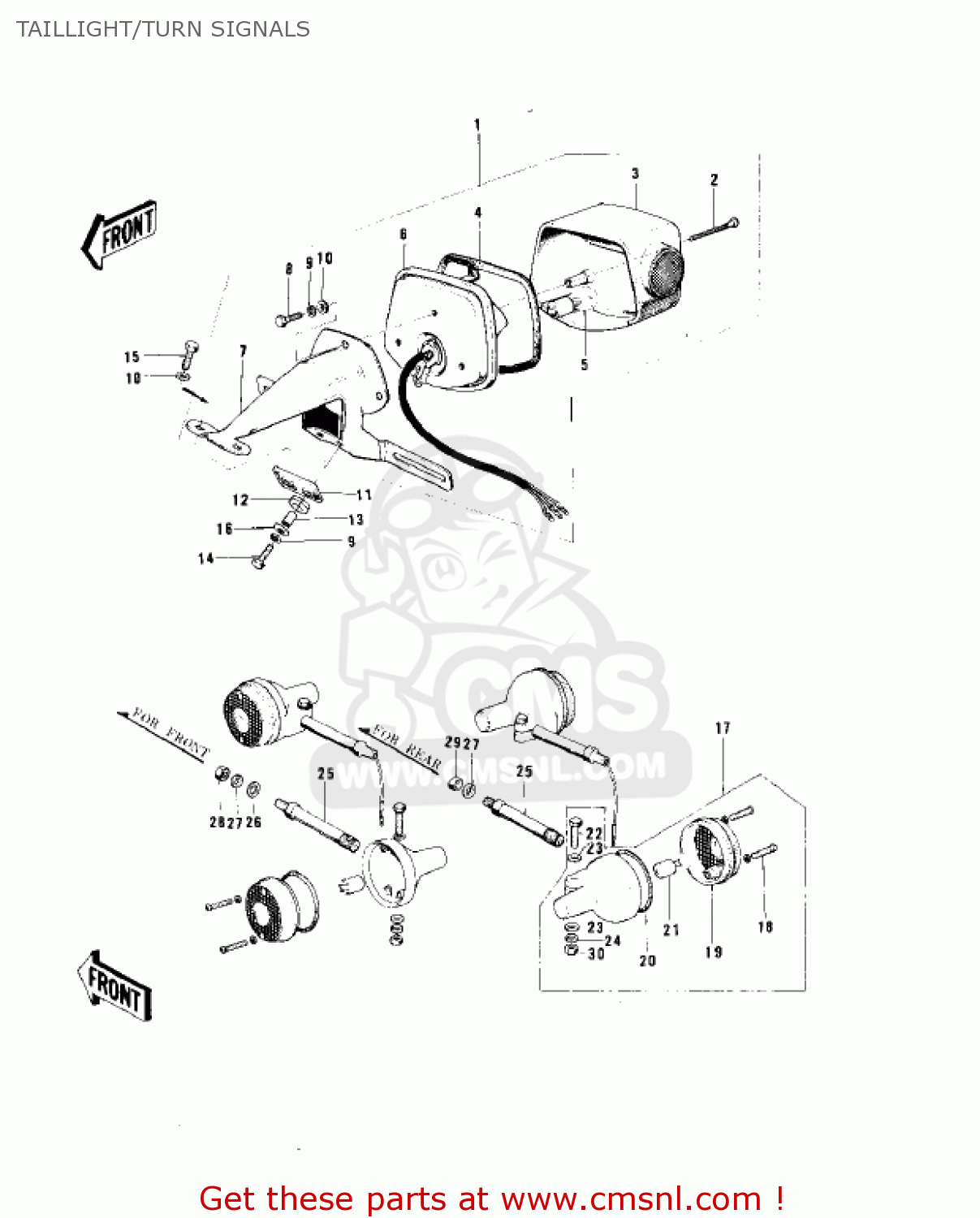

TAILLIGHT/TURN SIGNALS

ref

part #

description

quantity

1

2302406010
ref: 1

TAIL LAMP ASSEMBLY,BLACK

€ 287.00

1

2302406010
ref: 1
MC1B

TAIL LAMP ASSEMBLY,BLACK

€ 287.00

2

220R0455
ref: 2

SCREW-PAN-CROS

€ 3.50

3

23026028
ref: 3

LENS,TAIL LAMP,W/REFL

€ 48.50

4

23028019
ref: 4

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

5

92069074
ref: 5

BULB,6V-32X3CP

€ 4.50

6

230271018
ref: 6

TAIL LAMP BODY,COMPLETE

€ 55.00

6

23027037
ref: 6
MC1B

TAIL LAMP CASE

€ 166.00

7

2303603410
ref: 7

LICENSE PLATE BRACKET,BLACK

€ 195.50

8

112B0614
ref: 8

BOLT-UPSET 6X14

€ 2.50

8

116B0614
ref: 8

BOLT-HEX HEAD,6X14

€ 2.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

35039008
ref: 11

DAMPER RUBBER,TL LAMP

€ 4.00

12

92075121
ref: 12

DAMPER,FENDER

€ 2.50

13

92027162
ref: 13

COLLAR-REAR FENDER

€ 4.50

14

110B0625
ref: 14

BOLT-HEX HEAD,6X25

€ 4.00

14

112G0625
ref: 14

BOLT-UPSET,6X25

€ 4.00

15

112G0630
ref: 15

BOLT-UPSET

€ 1.00

15

112G0630
ref: 15

BOLT-UPSET

€ 1.00

16

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

17

23040038
ref: 17

TURN SIGNAL LAMP ASSEMBLY

€ 202.00

18

220E0420A
ref: 18

SCREW-PAN HEAD,4X20

€ 2.50

19

230481001
ref: 19

LENS-SIGNAL LAMP,045-

€ 10.50

20

23050003
ref: 20

GASKET,SIGNAL LAMP (NAS)

€ 3.50

21

92069056
ref: 21

BULB,6V 21CP

€ 4.50

22

112G0630
ref: 22

BOLT-UPSET

€ 1.00

23

411B0600
ref: 23

WASHER-PLAIN,6MM

€ 0.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

23051047
ref: 25

BRACKET-SIGNAL LAMP

€ 53.50

26

411B1200
ref: 26

WASHER-PLAIN,12MM

€ 0.50

27

461F1200
ref: 27

WASHER-SPRING,12MM

€ 0.50

28

314N1200A
ref: 28

NUT,12MM

€ 2.00

29

315B1200
ref: 29

NUT,12MM

€ 0.50

30

311B0600
ref: 30

NUT,6MM

€ 0.50

all assemblies
