FRONT FORK ('73-'75 MC1/MC1-A/MC
MC1MA 1975 USA CANADA

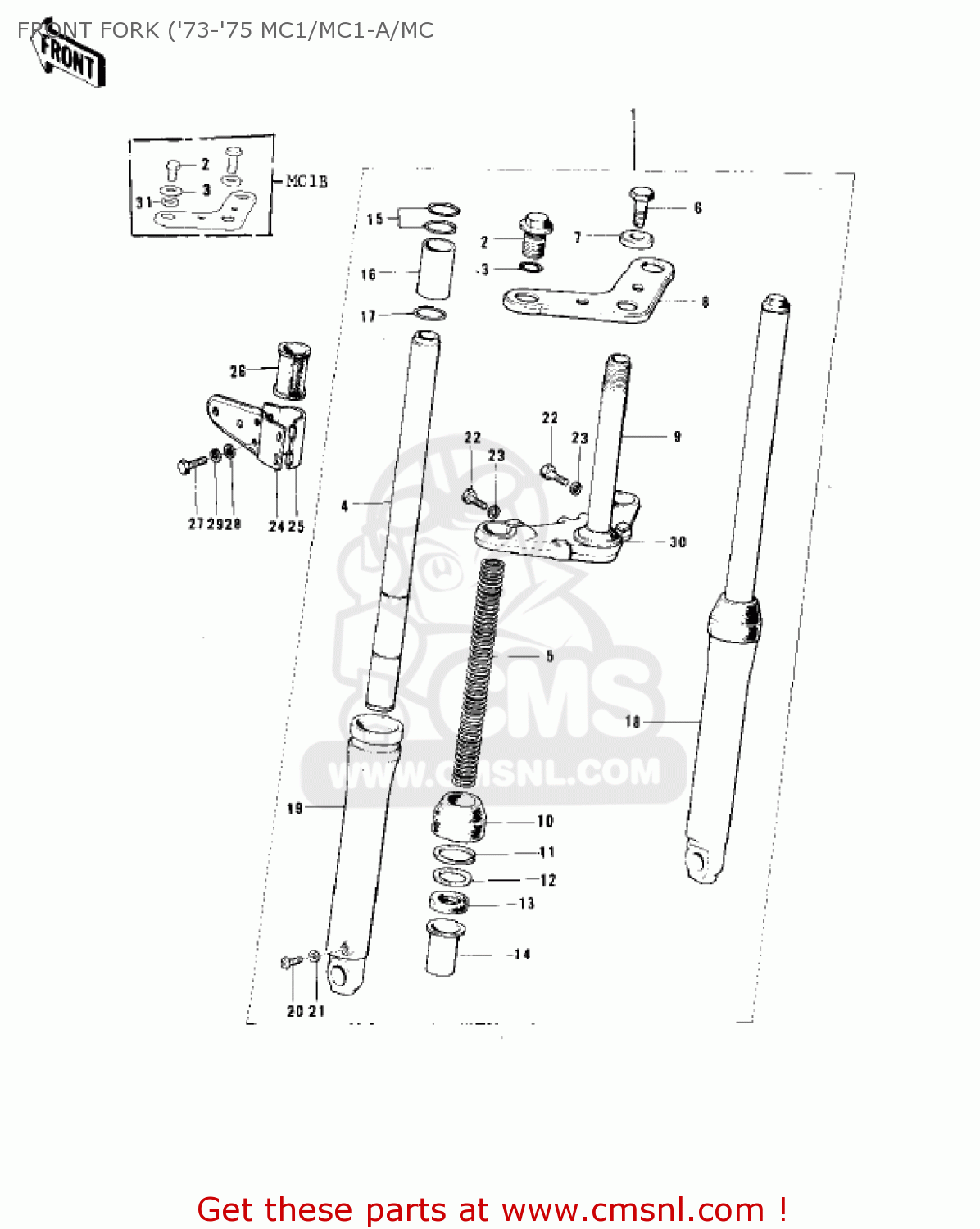

Front fork ('73-'75 mc1/mc1-a/mc diagram MC1MA 1975 USA CANADA
FRONT FORK ('73-'75 MC1/MC1-A/MC MC1MA 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
44001143
ref: 1
FRONT FORK
€ 1,006.00
1
44001143
ref: 1
MC1A
FRONT FORK
€ 1,006.00
1
44001161
ref: 1
MC1B
FRONT FORK ASSY
€ 488.00
2
44032010
ref: 2
BOLT,FORK TOP
€ 48.50
2
920011742
ref: 2
MC1B
BOLT
€ 10.50
3
44046020
ref: 3
FORK TOP BOLT O-RING
€ 3.00
3-1
920221381
ref: 3-1
MC1B
WASHER
€ 6.00
4
44013045
ref: 4
FORK INNER TUBE
€ 197.00
4
44013051
ref: 4
MC1B
TUBE,FORK INNER
€ 45.50
5
44026051
ref: 5
FORK SPRING,INNER
€ 20.00
5
44026055
ref: 5
MC1A/B
SPRING,FORK
€ 6.00
6
112G1030
ref: 6
BOLT UPSET
€ 4.50
7
920221381
ref: 7
WASHER
€ 6.00
8
44039056
ref: 8
HEAD,STEERING
€ 27.50
9
44037069
ref: 9
STEM,STEERING
€ 138.50
10
44010024
ref: 10
DUST SHIELD,FORK
€ 9.00
11
44044016
ref: 11
RING-SNAP,40MM
€ 4.50
12
44043054
ref: 12
WASHER,FORK OUTER PIP
€ 2.50
13
920491075
ref: 13
SEAL OIL, OUTER TUBE
€ 10.00
14
44015016
ref: 14
GUIDE,FORK INNER PIPE
€ 10.50
15
44020003
ref: 15
RING,INNER TUBE GUIDE
€ 2.00
16
44018007
ref: 16
PISTON-FORK
€ 9.50
17
44044017
ref: 17
CIRCLIP,OUTER TUBE
€ 2.00
18
44006050
ref: 18
TUBE,R.H OUTER
€ 93.50
19
44005052
ref: 19
TUBE,L.H FORK OUTER
€ 65.50
20
220B0406
ref: 20
SCREW-PAN-CROS,4X6
€ 2.50
21
44045046
ref: 21
GASKET,FORK DRAIN PLU (NAS)
€ 4.50
22
920011252
ref: 22
BOLT,HEX HEAD,10X35
€ 3.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
23064016
ref: 24
BRACKET,TURN SIGNAL
€ 8.50
25
23064017
ref: 25
BRACKET,TURN SIGNAL
€ 8.00
26
92075210
ref: 26
DAMPER RUBBER,HD LAMP
€ 3.50
27
92007027
ref: 27
BOLT-HEX HEAD,6X18
€ 4.00
28
411B0600
ref: 28
WASHER-PLAIN,6MM
€ 0.50
29
461F0600
ref: 29
WASHER-SPRING,6MM
€ 0.50
30
92047004
ref: 30
CONE-LOWER BEARING
€ 13.00
31
44045053
ref: 31
MC1B
GASKET,FORK TOP BOLT (NAS)
€ 3.00
