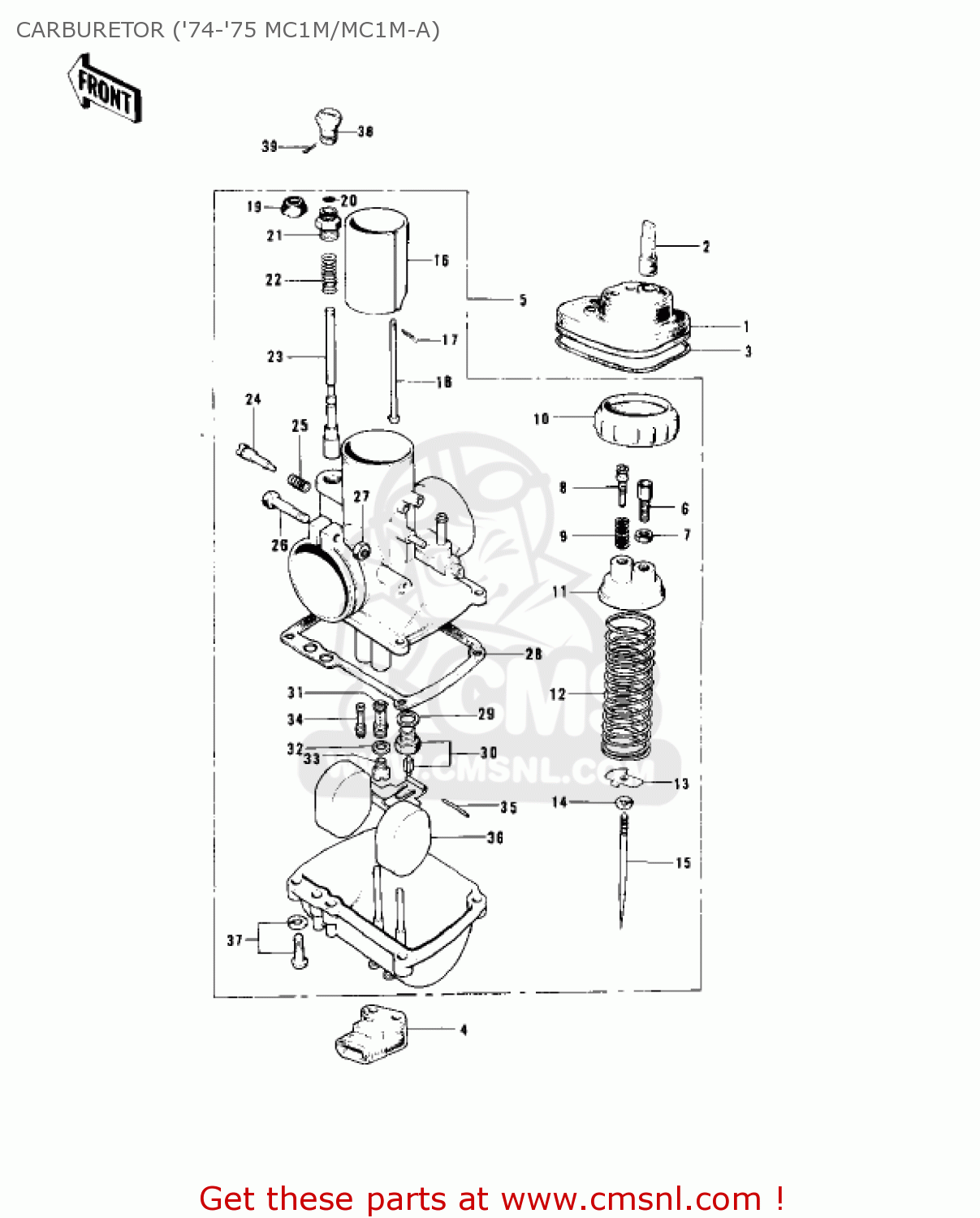

CARBURETOR ('74-'75 MC1M/MC1M-A)

ref

part #

description

quantity

1

14038035
ref: 1

BOOT,CARBURETOR

€ 9.50

2

16147001
ref: 2

PLUG,12X40

€ 3.00

3

92081047
ref: 3

SPRING,COIL

€ 7.50

4

16136007
ref: 4

GROMMET,OVERFLOW PIPE

€ 5.50

5

16001251
ref: 5

CARBURETOR

€ 230.00

6

16002002
ref: 6

ADJUSTER-CABLE,STARTE

€ 8.00

7

16003004
ref: 7

NUT-CABLE ADJUST LOCK

€ 4.50

8

16021002
ref: 8

SCREW-THROTTLE STOP

€ 12.00

9

16022005
ref: 9

SPRING-THR STOP SCREW

€ 5.50

10

16004010
ref: 10

CAP-CHAMBER,MIXING

€ 13.50

11

16005005
ref: 11

TOP-CHAMBER,MIXING

€ 12.50

12

16006013
ref: 12

SPRING-THROTTLE VALVE

€ 10.00

13

16007020
ref: 13

SEAT-SPRING,THROTTLE

€ 7.00

14

16008010
ref: 14

CLAMP,E-TYPE

€ 5.00

15

16009059
ref: 15

NEEDLE-JET,4EJ7

€ 26.50

16

16025057
ref: 16

VALVE-THROTTLE,CA2.0

€ 80.50

17

550D1210
ref: 17

PIN-COTTER,1.2X10

€ 1.50

18

16024012
ref: 18

ROD,THROTTLE VALVE ST

€ 5.50

19

16036012
ref: 19

BOOT,STARTER PLUNGER

€ 4.50

20

920371077
ref: 20

CLAMP

€ 3.00

21

16012021
ref: 21

CAP-STARTER PLUNGER

€ 11.50

22

16013010
ref: 22

SPRING,STARTER PLUNGR

€ 3.50

23

16016012
ref: 23

PLUNGER,STARTER

€ 28.00

24

16014002
ref: 24

SCREW-PILOT AIR

€ 11.00

25

16022007
ref: 25

SPRING-THR STOP SCREW

€ 5.50

26

16010004
ref: 26

SCREW-CLAMP

€ 3.50

27

311B0600
ref: 27

NUT,6MM

€ 0.50

28

16019021
ref: 28

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

29

16029002
ref: 29

WASHER-VALVE SEAT

€ 2.50

30

16030001
ref: 30

VALVE-FLOAT,#2.0

€ 40.50

31

16017068
ref: 31

JET-NEEDLE,O-2

€ 37.50

32

16034001
ref: 32

WASHER-MAIN JET

€ 2.50

33

92063109
ref: 33
S I D

JET-MAIN,#75R

€ 10.50

33

92063108
ref: 33
OPTION

JET-MAIN,#72.5R

€ 9.00

34

92064020
ref: 34

JET-PILOT,#17.5

€ 13.50

35

16032003
ref: 35

FLOAT PIN

€ 4.00

36

16031015
ref: 36

FLOAT

€ 40.50

37

16033012
ref: 37

SCREW-FLOAT CHAMBER

€ 1.00

38

92077022
ref: 38

KNOB,CARBURETOR

€ 7.00

39

550D1615
ref: 39

PIN-COTTER,1.6X15

€ 1.50
