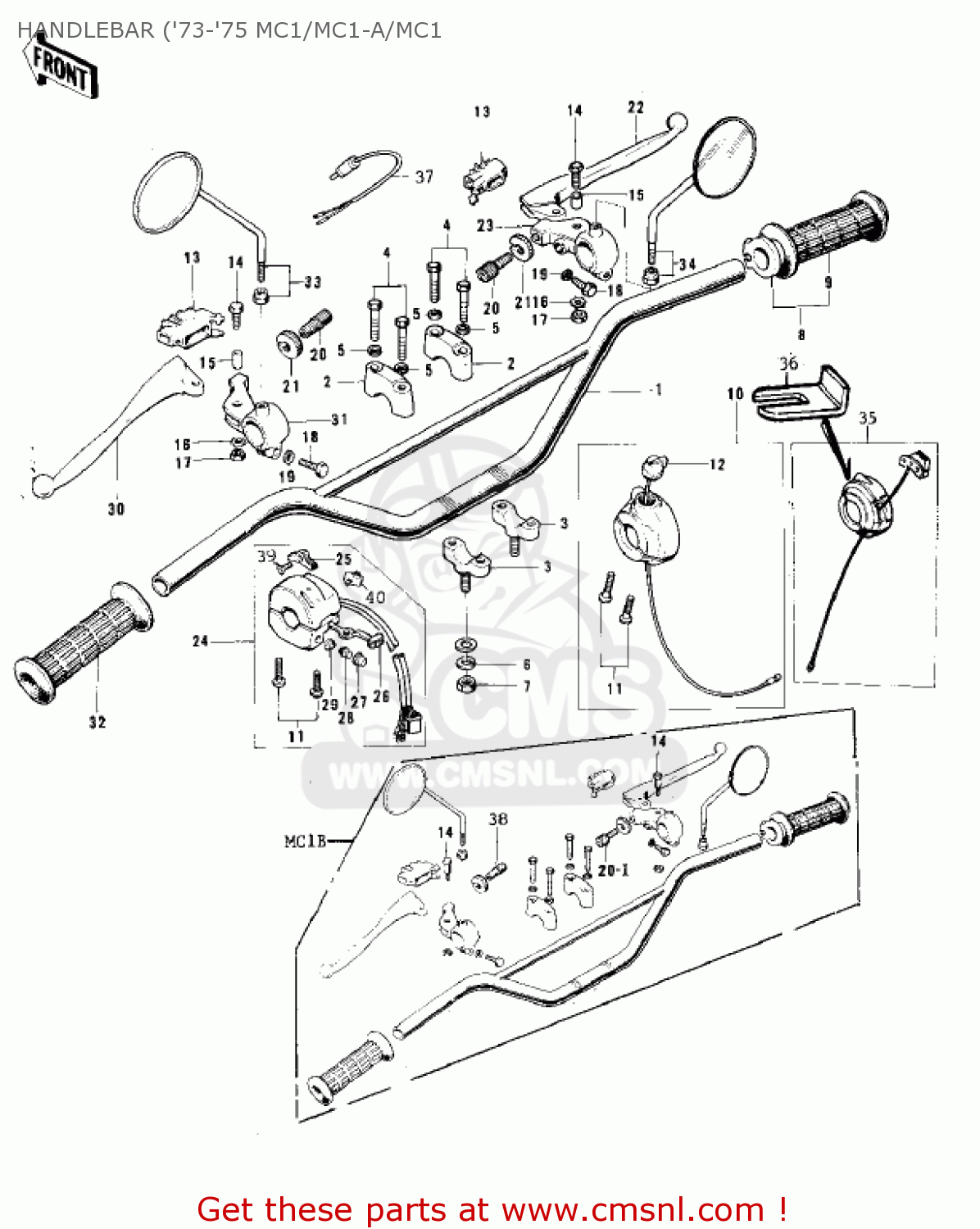

HANDLEBAR ('73-'75 MC1/MC1-A/MC1

ref

part #

description

quantity

1

46004024
ref: 1

HANDLEBAR

€ 43.50

2

46012004
ref: 2

HOLDER-UPPER HANDLBAR

€ 14.00

3

4601200280
ref: 3

HOLDER-HANDLE

€ 15.50

4

920011405
ref: 4

BOLT,8X38

€ 10.00

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

7

314B1000
ref: 7

NUT,10MM

€ 0.50

8

46019020
ref: 8

GRIP ASSY-THROTTLE

€ 14.00

8

46019034
ref: 8
MC1B

GRIP ASSY,THROTTLE

€ 29.00

9

46061013
ref: 9

RUBBER-R.H GRIP

€ 9.50

10

4601802010
ref: 10

CASE ASSY,R.H.

€ 59.50

10

4601802010
ref: 10
BLACK MC1A

CASE ASSY,R.H.

€ 59.50

11

220B0525
ref: 11

SCREW-PAN-CROS,5X25

€ 2.50

12

46027008
ref: 12

SWITCH-ENGINE STOP

€ 15.50

13

46071002
ref: 13

DUST COVER

€ 12.50

13

490061017
ref: 13
MC1B

BOOTS,LEVER HOLDER

€ 13.00

14

92007020
ref: 14

BOLT-HEX HEAD,5X20

€ 2.50

14

92007039
ref: 14
MC1B

BOLT,HEX HEAD,5MM

€ 3.00

15

46059011
ref: 15

COLLAR,LEVER

€ 3.50

16

464H0500
ref: 16

WASHER-LOCK,5MM

€ 0.50

17

312B0500
ref: 17

NUT-HEX,5MM

€ 0.50

17

92019014
ref: 17
MC1B

NUT-LOCK,5M/M

€ 2.50

18

110N0625
ref: 18

BOLT-HEX HEAD,6X25

€ 3.50

19

410B0600
ref: 19

WASHER-PLAIN-SMALL,6M

€ 0.50

20

46055010
ref: 20

SCREW,CABLE ADJUST

€ 21.00

20-1

46055010
ref: 20-1
MC1B

SCREW,CABLE ADJUST

€ 21.00

21

46056001
ref: 21

NUT-ADJUST SCREW LOCK

€ 2.50

22

46058004
ref: 22

LEVER-GRIP,FRONT BRAK

€ 24.00

23

4606000921
ref: 23

HOLDER,BRAKE LEVER,FR

€ 27.00

23

4606000921
ref: 23
BLACK MC1A/B

HOLDER,BRAKE LEVER,FR

€ 27.00

24

46091016
ref: 24

CASE ASSEMBLY,LH

€ 113.50

24

4609101610
ref: 24
BLACK MC1A

CASE ASSEMBLY,LH,BLACK

€ 113.50

24

46091040
ref: 24
MC1B

HOUSING-ASSY-CONTROL,

€ 93.50

?

99990531
ref: ?
Includes items 25 an

DIMMER SWITCH KIT B

€ 1.00

25

46044011
ref: 25

KNOB-L.H SWITCH

€ 6.00

25

46044011
ref: 25
FOR 99990-531

KNOB-L.H SWITCH

€ 6.00

26

46044006
ref: 26

KNOB-SWITCH

€ 2.50

27

270101009
ref: 27

SWITCH ASSY,HORN BUTN

€ 5.50

28

270101009
ref: 28

SWITCH ASSY,HORN BUTN

€ 5.50

29

270101009
ref: 29

SWITCH ASSY,HORN BUTN

€ 5.50

30

46092015
ref: 30

LEVER-GRIP,CLUTCH

€ 11.50

31

4609401121
ref: 31

HOLDER-CLUTCH LEV,BLK

€ 23.00

31

4609401121
ref: 31
BLACK MC1A/B

HOLDER-CLUTCH LEV,BLK

€ 23.00

32

46075018
ref: 32

RUBBER-L.H GRIP

€ 10.00

32

46075019
ref: 32
MC1B

RUBBER-L.H GRIP

€ 6.00

33

56002020
ref: 33

MIRROR-ASSY,RH

€ 47.50

34

56003009
ref: 34

MIRROR-ASSY,LH

€ 50.00

35

46018036
ref: 35

CASE ASSY,R.H

€ 128.50

36

46037023
ref: 36
FOR 46018-036

HOLDER,CONTROL CABLE

€ 4.50

37

27021004
ref: 37
MC1A

SWITCH,FR BRAKE LAMP

€ 23.00

38

46055009
ref: 38
MC1B

SCREW,CABLE ASJUST

€ 13.00

39

221B0308A
ref: 39

SCREW-CNTSNK HD,3X8

€ 2.50

40

46089003
ref: 40
MC1/A

SWITCH-L.H

€ 2.50

40

46089015
ref: 40
MC1B

SWITCH ASSEMBLY,LH

€ 33.50

all assemblies
