IGNITION/GENERATOR/REGULATOR
H2B MACH IV 1974 CANADA

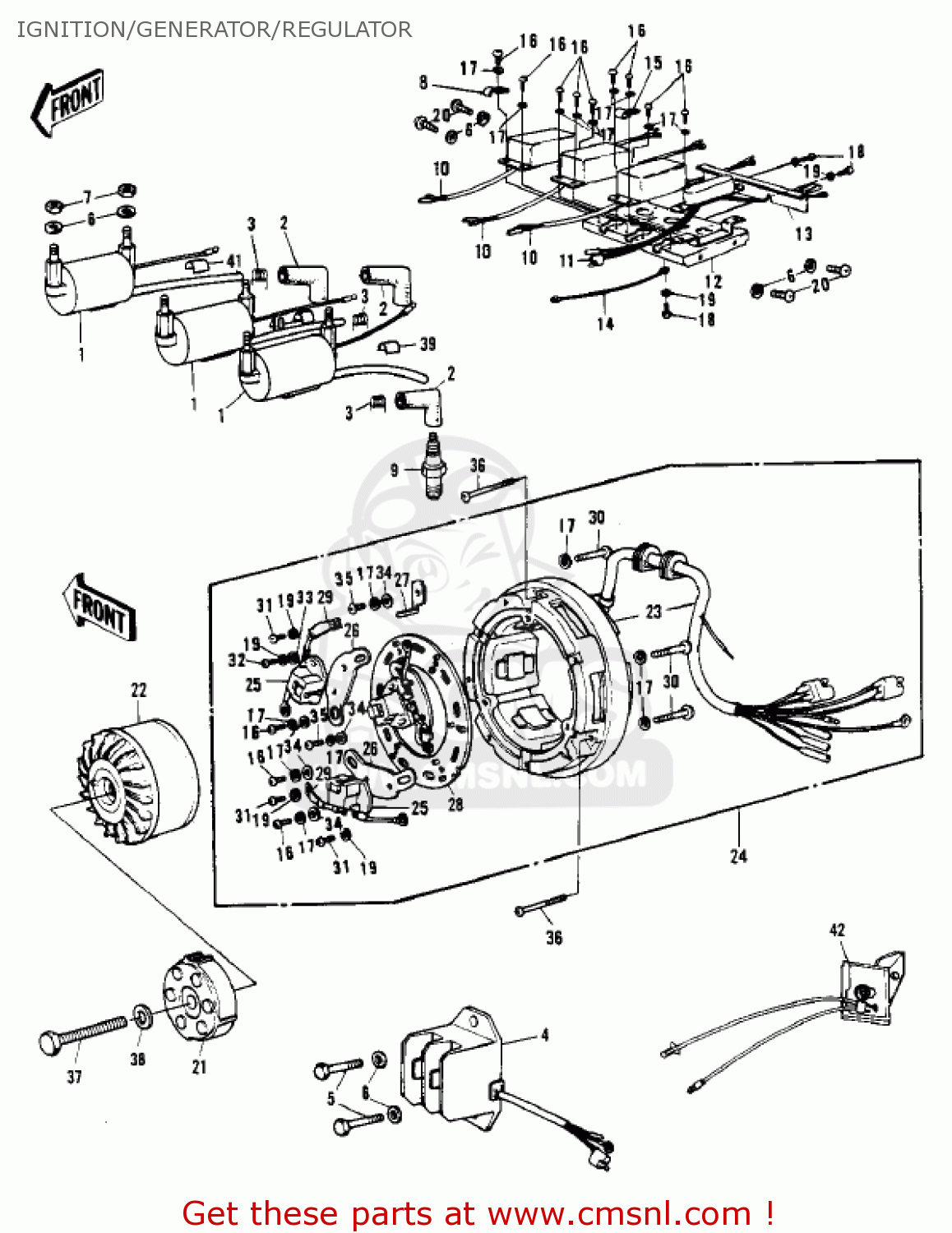

Ignition/generator/regulator diagram H2B MACH IV 1974 CANADA
IGNITION/GENERATOR/REGULATOR H2B MACH IV 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
21121064
ref: 1
COIL-IGNITION
€ 101.50
2
21130009
ref: 2
CAP-SPARK PLUG
€ 15.00
3
92101001
ref: 3
SPRING-SPARK PLUG CAP
€ 1.50
4
210661036
ref: 4
H2
REGULATOR
€ 208.50
4
210661036
ref: 4
H2-A
REGULATOR
€ 208.50
4
210661036
ref: 4
H2-B/C
REGULATOR
€ 208.50
4
210661030
ref: 4
REGULATOR-VOLTAGE
€ 176.00
5
112G0620
ref: 5
BOLT 6X20
€ 1.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
311B0600
ref: 7
NUT,6MM
€ 0.50
8
92037070
ref: 8
CLAMP-BREATHER PIPE
€ 1.50
9
B9HS1
ref: 9
SPARK PLUG,B9HS1.0,B9HS1
€ 2.50
10
21119012
ref: 10
IGNITION UNIT A
€ 357.00
11
21120005
ref: 11
IGNITION UNIT B
€ 204.00
12
21155003
ref: 12
PLATE-IGNITION UNIT
€ 49.50
13
21155004
ref: 13
PLATE
€ 3.50
14
21045009
ref: 14
WIRE-LEAD
€ 1.50
15
21098009
ref: 15
CLAMP-WIRE
€ 1.00
16
220B0510
ref: 16
SCREW-PAN-CROS,5X10
€ 0.50
17
461F0500
ref: 17
WASHER-SPRING,5MM
€ 0.50
18
220B0406
ref: 18
SCREW-PAN-CROS,4X6
€ 2.50
19
461F0400
ref: 19
WASHER-SPRING,4MM
€ 0.50
20
92001121
ref: 20
BOLT,HEX HEAD,6X14
€ 2.50
21
21007021
ref: 21
ROTOR-S.G
€ 256.50
22
21007022
ref: 22
ROTOR
€ 291.00
23
21076011
ref: 23
YOKE ASSY
€ 847.50
24
21076011
ref: 24
YOKE ASSY
€ 847.50
25
21152003
ref: 25
PICK UP
€ 134.50
26
21156002
ref: 26
PLATE-PICK UP
€ 8.50
27
21020002
ref: 27
POINTER-IGN TIMING
€ 1.00
28
21155002
ref: 28
PLATE-YOKE
€ 14.00
29
21098008
ref: 29
CLAMP-LEAD WIRE
€ 1.50
30
220B0535
ref: 30
SCREW-PAN-CROS
€ 2.00
31
220B0408
ref: 31
SCREW-PAN-CROS
€ 0.50
32
220B0410
ref: 32
SCREW-PAN-CROS
€ 2.00
33
410B0400
ref: 33
WASHER-PLAIN-SMALL,4M
€ 0.50
34
411B0500
ref: 34
WASHER-PLAIN,5MM
€ 0.50
35
220B0512
ref: 35
SCREW-PAN-CROS
€ 0.50
36
220B0540
ref: 36
SCREW-PAN-CROS
€ 2.00
37
920011583
ref: 37
BOLT,FLANGED,8X70
€ 6.00
37
920011583
ref: 37
BOLT,FLANGED,8X70
€ 6.00
38
461F0800
ref: 38
WASHER-SPRING,8MM
€ 0.50
39
21168001
ref: 39
LABEL,LEFT
€ 4.50
40
21168002
ref: 40
LABEL,CENTER
€ 4.00
41
21168003
ref: 41
LABEL,RIGHT
€ 5.50
42
21061014
ref: 42
USE ONLY WITH 21072-
RECTIFIER
€ 59.50
