FRAME/FRAME FITTINGS (H2-B/C)
H2B MACH IV 1974 CANADA

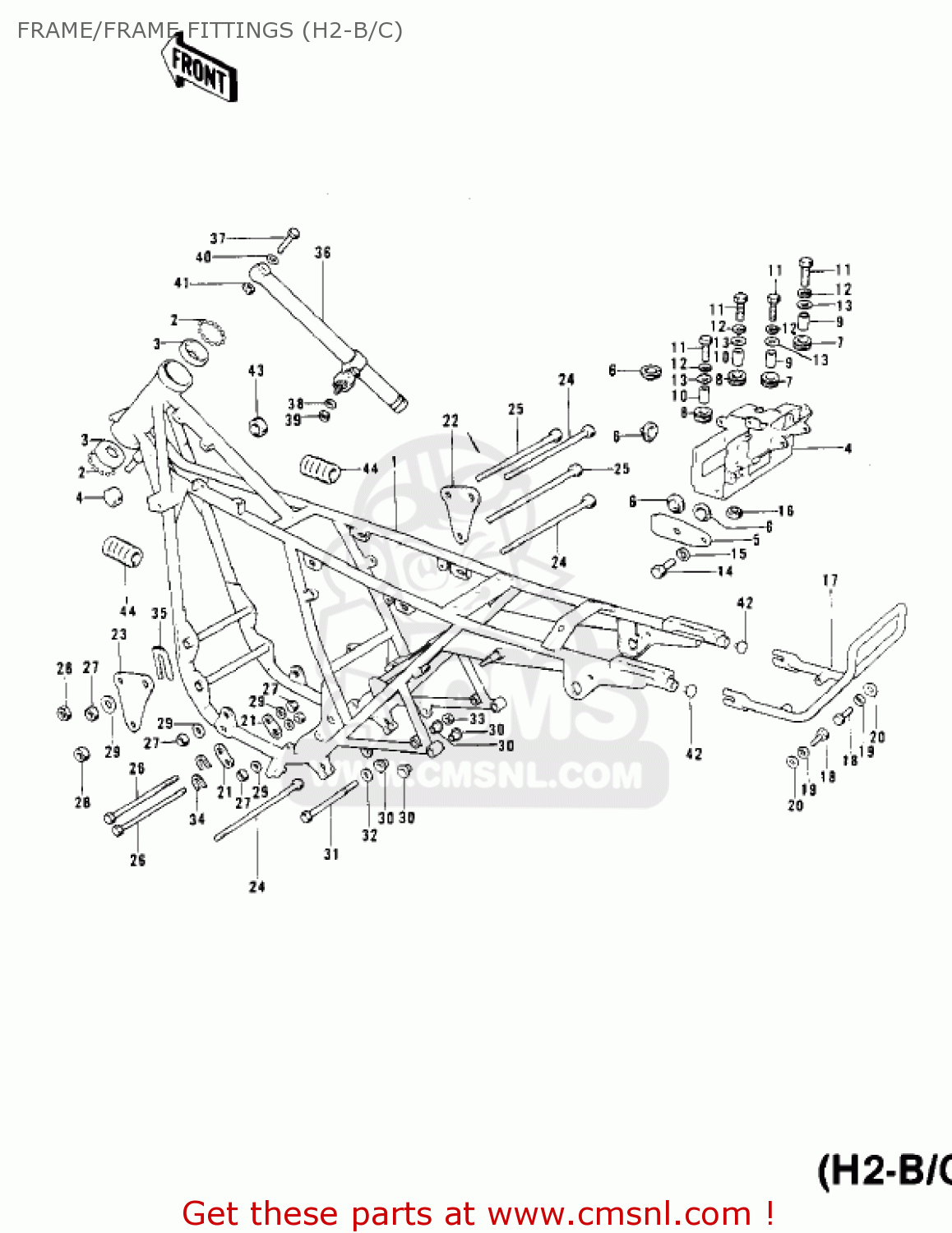

Frame/frame fittings (h2-b/c) diagram H2B MACH IV 1974 CANADA
FRAME/FRAME FITTINGS (H2-B/C) H2B MACH IV 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
32002080
ref: 1
H2-B
FRAME
€ 564.50
1
32002107
ref: 1
H2-C
FRAME
€ 1,128.00
2
600A0800
ref: 2
BALL-STEEL,1/4
€ 0.50
3
92048006
ref: 3
RACE-STRNG BEARIN-STE
€ 11.50
4
32099014
ref: 4
CASE,TOOL
€ 72.50
5
32100014
ref: 5
BAND-BATTERY
€ 3.50
6
92075078
ref: 6
DAMPER,RUBBER
€ 2.50
7
92075222
ref: 7
DAMPER RUBBER,CASE
€ 4.50
8
92075076
ref: 8
DAMPER
€ 3.00
9
92027120
ref: 9
COLLAR
€ 3.00
10
92027129
ref: 10
COLLAR,6.8X10X8.5
€ 3.00
11
112B0622
ref: 11
BOLT, 6X22
€ 2.50
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
92022125
ref: 13
WASHER,6.5X20X1.6
€ 1.00
14
112B0614
ref: 14
BOLT-UPSET 6X14
€ 2.50
15
410B0600
ref: 15
WASHER-PLAIN-SMALL,6M
€ 0.50
16
311B0600
ref: 16
NUT,6MM
€ 0.50
17
35032025
ref: 17
STAY,REAR FENDER
€ 72.00
18
115G0820
ref: 18
BOLT,8X20
€ 2.00
19
461F0800
ref: 19
WASHER-SPRING,8MM
€ 0.50
20
411B0800
ref: 20
WASHER-PLAIN,8MM
€ 0.50
21
32030016
ref: 21
PLATE-REAR ENG HOLDER
€ 4.00
22
32030042
ref: 22
PLATE,R.H ENGINE
€ 9.00
23
32030043
ref: 23
PLATE,L.H ENGINE
€ 9.00
24
92091024
ref: 24
BOLT-ENG MOUNT,10X274
€ 19.50
25
92091021
ref: 25
BOLT-ENG MOUNT,8X270
€ 4.00
26
920011248
ref: 26
BOLT,HEX HEAD,10X125
€ 8.00
27
920151429
ref: 27
NUT,10MM
€ 4.50
28
920151124
ref: 28
NUT,LOCK,8MM
€ 3.50
29
410B1000
ref: 29
WASHER-PLAIN-SMALL,10
€ 0.50
30
92092010
ref: 30
BUSHING-MUFFLER FITT
€ 11.00
31
113N1056
ref: 31
BOLT-HEX HEAD,10X56
€ 7.00
32
92022196
ref: 32
WASHER,10.5X30X2
€ 2.00
33
92019021
ref: 33
NUT,LOCK,10M/M
€ 2.00
34
92025048
ref: 34
SHIM-ENG FIT RR,0.5MM
€ 0.50
34
92025049
ref: 34
SHIM-ENG FIT RR,0.8MM
€ 0.50
34
92025050
ref: 34
SHIM-ENG FIT RR,1.0MM
€ 0.50
34
92025051
ref: 34
SHIM-ENG FIT RR,1.6MM
€ 0.50
34
92025052
ref: 34
SHIM-ENG FIT RR,2.0MM
€ 0.50
35
92025053
ref: 35
SHIM,T=0.5
€ 3.00
35
92025054
ref: 35
SHIM-ENG FIT FR,0.8MM
€ 2.50
35
92025055
ref: 35
SHIM-ENG FIT FR,1.0MM
€ 1.50
35
92025056
ref: 35
SHIM-ENG FIT FR,1.6MM
€ 1.00
35
92025057
ref: 35
SHIM,T=2.0
€ 2.50
35
92025058
ref: 35
SHIM,T=2.3
€ 2.50
36
46117006
ref: 36
SHOCKABSORBER
€ 335.00
37
115G0830
ref: 37
BOLT-SMALL-UPSET,8X30
€ 3.00
38
461F0800
ref: 38
WASHER-SPRING,8MM
€ 0.50
39
920151124
ref: 39
NUT,LOCK,8MM
€ 3.50
40
411B0800
ref: 40
WASHER-PLAIN,8MM
€ 0.50
41
311B0800
ref: 41
NUT,8MM
€ 0.50
42
32112006
ref: 42
PLUG
€ 1.00
43
92075044
ref: 43
DAMPER,FUEL TANK
€ 3.00
44
92075084
ref: 44
DAMPER,FUEL TANK
€ 6.50
