FOOTRESTS/STANDS/BRAKE PEDAL
H2B MACH IV 1974 CANADA

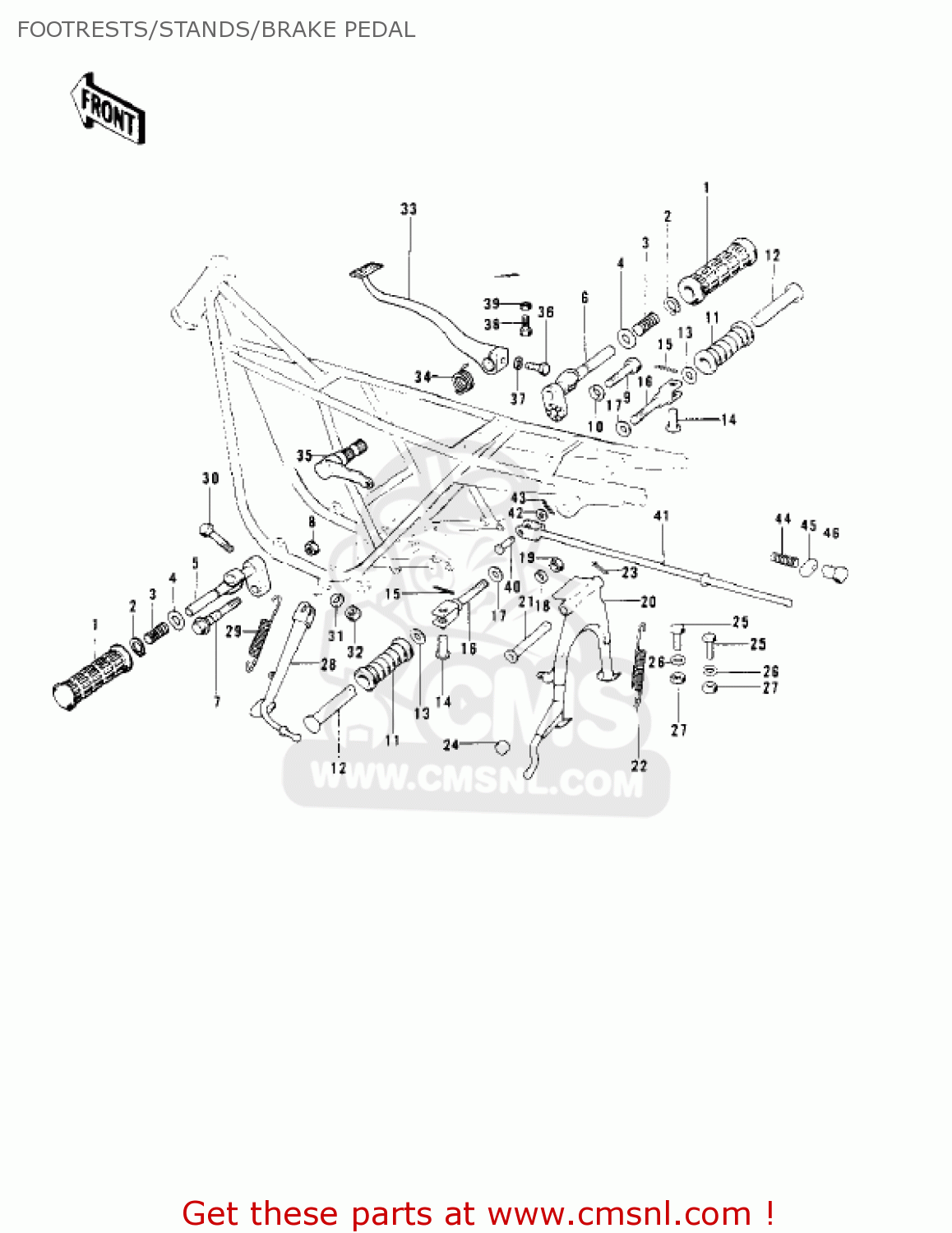

Footrests/stands/brake pedal diagram H2B MACH IV 1974 CANADA
FOOTRESTS/STANDS/BRAKE PEDAL H2B MACH IV 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92076019
ref: 1
H2/A
RUBBER-FOOTREST
€ 7.50
1
92076026
ref: 1
H2-B/C
RUBBER,FOOTRESTBAR
€ 5.50
2
480J1600
ref: 2
CIRCLIP-TYPE-C,16MM
€ 2.50
3
34006003
ref: 3
SPRING-FOOTREST PEG
€ 3.50
4
92022221
ref: 4
WASHER-PLAIN
€ 1.00
5
34003026
ref: 5
BAR-FOOTREST,L.H
€ 34.00
6
34003025
ref: 6
BAR-FOOTREST,R.H
€ 77.00
7
92003071
ref: 7
H2/A
BOLT-L.H FOOT BAR FIT
€ 22.50
7
92003117
ref: 7
H2-B/C
BOLT,CHANGE PEDAL
€ 17.00
8
315B1200
ref: 8
NUT,12MM
€ 0.50
9
113N1240A
ref: 9
BOLT-HEX HEAD,12X40
€ 7.00
10
461F1200
ref: 10
WASHER-SPRING,12MM
€ 0.50
11
92076024
ref: 11
H2/A
DAMPER,STEP
€ 14.50
11
92076024
ref: 11
H2-B/C
DAMPER,STEP
€ 14.50
12
34028009
ref: 12
BAR-REAR FOOTREST
€ 24.00
13
92022199
ref: 13
WASHER,20X30X2.3
€ 5.00
14
920431464
ref: 14
PIN
€ 5.50
15
550D2015
ref: 15
PIN-COTTER,2.0X15
€ 1.00
16
34029008
ref: 16
HOLDER-STEP,RR
€ 20.00
17
411B1000
ref: 17
WASHER-PLAIN,10MM
€ 0.50
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
314B1000
ref: 19
H2/A
NUT,10MM
€ 0.50
19
92019021
ref: 19
H2-B/C
NUT,LOCK,10M/M
€ 2.00
20
34011027
ref: 20
H2/A
STAND-MAIN
€ 51.00
20
34011033
ref: 20
H2-B/C
STAND,MAIN
€ 82.00
21
34019011
ref: 21
SHAFT-STAND,CNT
€ 9.00
22
34023010
ref: 22
H2/A
SPRING-MAIN STAND
€ 8.50
22
920811585
ref: 22
H2-B/C
SPRING,CENTER STAND
€ 9.50
23
550D3025
ref: 23
PIN-COTTER,3.0X25
€ 0.50
24
92075115
ref: 24
DAMPER,STAND,CNT
€ 4.00
25
112G0640
ref: 25
BOLT-UPSET,6X40
€ 2.50
26
410B0600
ref: 26
H2-B/C
WASHER-PLAIN-SMALL,6M
€ 0.50
27
311B0600
ref: 27
NUT,6MM
€ 0.50
28
34024030
ref: 28
STAND-SIDE
€ 42.00
28
34024049
ref: 28
H2-B/C
STAND,SIDE
€ 43.00
29
34023005
ref: 29
SPRING-MAIN STAND
€ 6.50
30
92003079
ref: 30
BOLT-SIDE STAND
€ 7.50
31
461F1000
ref: 31
WASHER-SPRING,10MM
€ 0.50
32
314B1000
ref: 32
NUT,10MM
€ 0.50
33
43001037
ref: 33
PEDAL-REAR BRAKE
€ 45.00
34
43005016
ref: 34
SPRING-BRAKE PEDAL
€ 2.00
35
43004010
ref: 35
SHAFT,BRAKE PEDAL
€ 37.50
36
114N0825
ref: 36
BOLT-SMALL,8X25
€ 2.50
37
461F0800
ref: 37
WASHER-SPRING,8MM
€ 0.50
38
112G0625
ref: 38
H2/A
BOLT-UPSET,6X25
€ 4.00
38
112B0614
ref: 38
H2-B/C
BOLT-UPSET 6X14
€ 2.50
39
311B0600
ref: 39
NUT,6MM
€ 0.50
40
92043064
ref: 40
PIN-BRAKE ROD FITTING
€ 4.50
41
430114005
ref: 41
H2/A
ROD-BRAKE
€ 10.00
41
43011023
ref: 41
H2-B/C
ROD,REAR BRAKE
€ 15.00
42
410B0600
ref: 42
WASHER-PLAIN-SMALL,6M
€ 0.50
43
550D2015
ref: 43
PIN-COTTER,2.0X15
€ 1.00
44
43012001
ref: 44
SPRING,BRAKE ROD
€ 3.00
45
92043065
ref: 45
PIN-BRAKE ROD
€ 3.50
46
92015042
ref: 46
NUT-BRAKE ROD ADJUST
€ 4.00
