CRANKCASE
H2B MACH IV 1974 CANADA

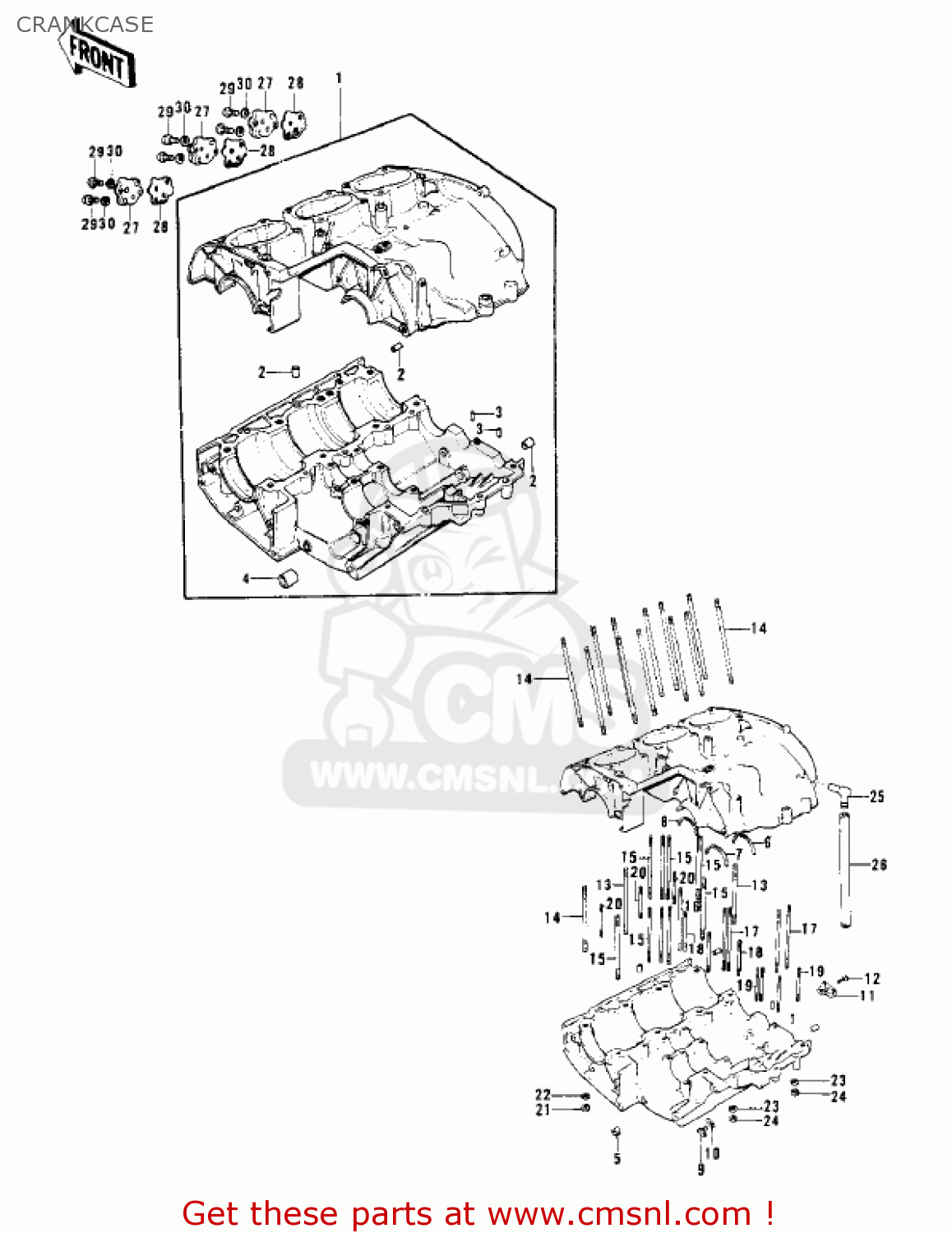

Crankcase diagram H2B MACH IV 1974 CANADA
CRANKCASE H2B MACH IV 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14001050
ref: 1
H2/A
CRANKCASE SET
€ 414.50
1
14001063
ref: 1
H2-B/C
CRANKCASE SET H2B
€ 1,101.50
2
920431037
ref: 2
PIN,DOWEL,10X8.2X14
€ 0.50
3
92042016
ref: 3
PIN,DOWEL,6X16
€ 3.50
4
92028071
ref: 4
BUSHING,12X20X20
€ 54.00
5
92049004
ref: 5
OIL SEAL SB12205
€ 6.00
6
14013012
ref: 6
RING-POSITIONING
€ 10.00
7
14013004
ref: 7
RING-BEARING SETTING
€ 7.00
8
14013013
ref: 8
RING-POSITION,T=1.90
€ 7.50
9
92067001
ref: 9
PLUG-OIL DRAIN
€ 3.00
10
92065058
ref: 10
GASKET, 10,5X16X1 (NAS)
€ 2.50
11
14015001
ref: 11
RECEIVER-OIL
€ 3.50
12
221B0616
ref: 12
SCREW-CNTSNK HD,6X16
€ 0.50
13
172G1090
ref: 13
STUD,10X90
€ 7.50
14
172G1075
ref: 14
STUD,10X75
€ 8.00
15
172G1060
ref: 15
STUD,10X60
€ 3.50
16
172G0680
ref: 16
STUD,6X80
€ 1.50
17
172G0675
ref: 17
STUD,6X75
€ 1.50
18
172G0650
ref: 18
STUD,6X50
€ 5.50
19
172G0635
ref: 19
STUD,6X35
€ 3.00
20
172G0630
ref: 20
STUD,6X30
€ 2.50
21
317B1000
ref: 21
NUT,10MM
€ 0.50
22
461F1000
ref: 22
WASHER-SPRING,10MM
€ 0.50
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
311B0600
ref: 24
NUT,6MM
€ 0.50
25
14069003
ref: 25
BREATHER
€ 7.00
26
92059061
ref: 26
PIPE-BREATHER
€ 3.00
27
16128008
ref: 27
H2-B/C
VALVE,CHECK
€ 9.50
28
14051003
ref: 28
H2-B/C
GASKET,CHECK TALVE (MCA)
€ 2.00
29
220B0620
ref: 29
H2-B/C
SCREW-PAN HEAD,6X20
€ 2.50
30
461F0600
ref: 30
H2-B/C
WASHER-SPRING,6MM
€ 0.50
