REAR HUB/BRAKE/CHAIN ('69-'72 H1
H1 1970 CANADA

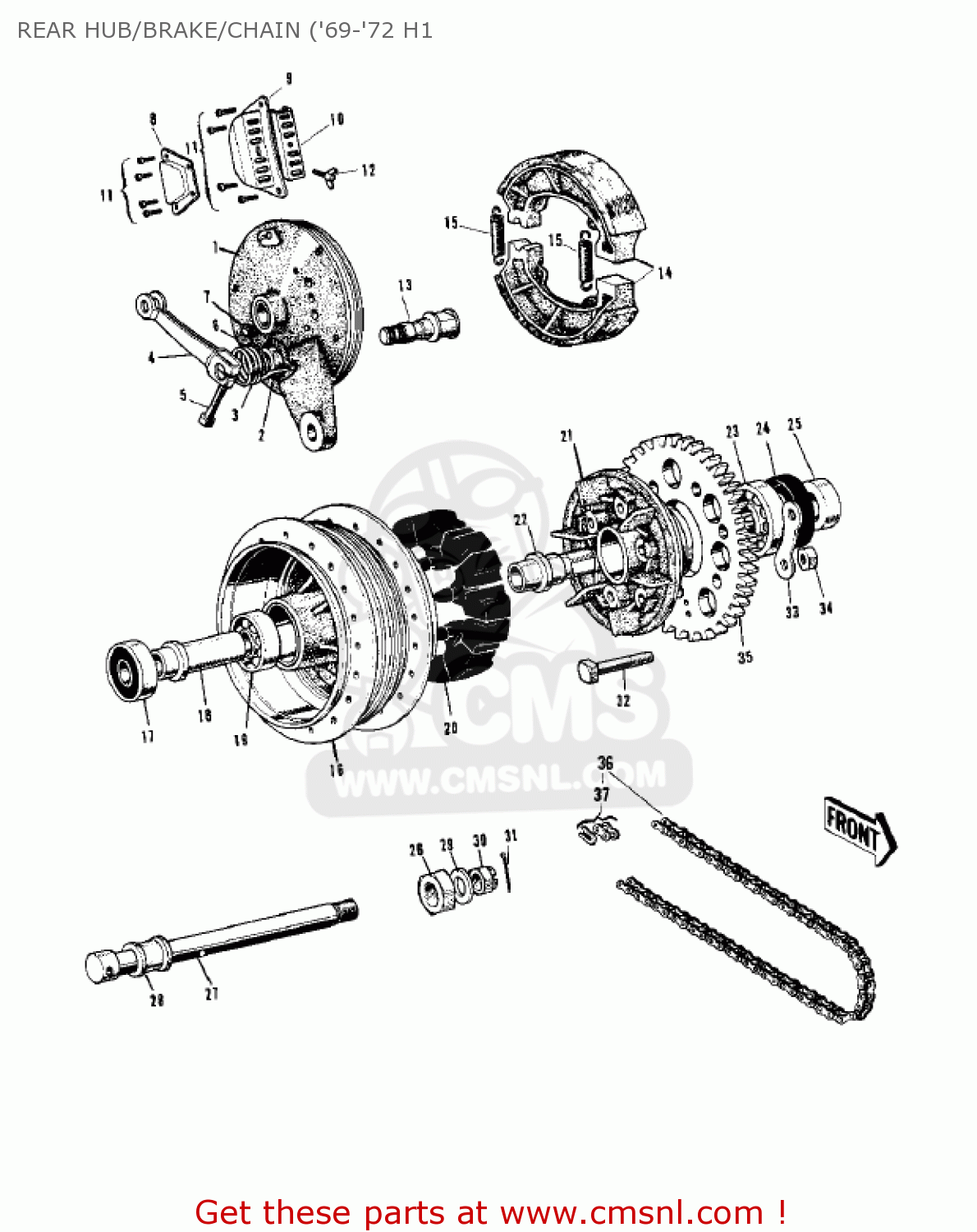

Rear hub/brake/chain ('69-'72 h1 diagram H1 1970 CANADA
REAR HUB/BRAKE/CHAIN ('69-'72 H1 H1 1970 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
4200601321
ref: 1
H1/A/C
PANEL ASSY-RR BRK,F.B
€ 240.00
1
4200601321
ref: 1
H1-B
PANEL ASSY-RR BRK,F.B
€ 240.00
2
41051001
ref: 2
DUST SHIELD-BRAKE CAM
€ 2.50
3
41056003
ref: 3
SPRING-BRAKE CAM LEV
€ 6.00
4
42029037
ref: 4
LEVER,REAR BRAKE CAM
€ 27.50
5
112G0640
ref: 5
BOLT-UPSET,6X40
€ 2.50
6
411B0600
ref: 6
WASHER-PLAIN,6MM
€ 0.50
7
311B0600
ref: 7
NUT,6MM
€ 0.50
8
42023002
ref: 8
OUTLET-VENTILATOR
€ 23.00
9
42022002
ref: 9
INLET-VENTILATOR
€ 27.50
10
42024001
ref: 10
SHUTTER-AIR
€ 7.00
11
220E0406A
ref: 11
SCREW,PAN HED,4X6
€ 1.50
12
92001062
ref: 12
BOLT-WING,3X10
€ 5.50
13
42026009
ref: 13
CAM SHAFT-REAR BRAKE
€ 9.00
14
42019007
ref: 14
SHOE-BRAKE (MCA)
€ 70.50
15
42020003
ref: 15
SPRING-BRAKE SHOE
€ 6.50
16
4200501580
ref: 16
INCLUDES REF. #'S 17
DRUM ASSY,RR BK,BUFF
€ 209.50
17
601B6205Z
ref: 17
BALL BEARING,#6205ZC3
€ 24.00
18
42010014
ref: 18
SPACER-RR HUB BEARING
€ 10.00
19
601B6303Z
ref: 19
BEARING-BALL,#6303ZC3
€ 17.50
20
42014014
ref: 20
DAMPER-REAR HUB SHOCK
€ 8.00
21
42008005
ref: 21
INCLUDES REF. #'S 22
COUPLING ASSY-RR HUB
€ 62.00
22
42036011
ref: 22
SLEEVE-RR HUB COUPLNG
€ 20.50
23
601B6305
ref: 23
BEARING-BALL,#6305C3
€ 30.00
24
92050027
ref: 24
OIL SEAL
€ 13.50
25
42037017
ref: 25
COLLAR-SLEEVE
€ 6.50
26
42045006
ref: 26
NUT-SLEEVE
€ 7.50
27
42031038
ref: 27
H1/A/C
AXLE-REAR
€ 23.50
27
42031038
ref: 27
H1-B
AXLE-REAR
€ 23.50
28
42032017
ref: 28
COLLAR-REAR AXLE
€ 10.50
29
42046010
ref: 29
WASHER-L.H SLEEVE
€ 5.50
30
42045014
ref: 30
NUT CASTLE, 16M/M
€ 6.50
30
42045014
ref: 30
NUT CASTLE, 16M/M
€ 6.50
31
550D4030
ref: 31
PIN-COTTER,4.0X30
€ 1.50
32
92003087
ref: 32
BOLT-RR SPRCKT 10X49
€ 4.00
33
92088007
ref: 33
WASHER,LOCK
€ 8.00
34
42045005
ref: 34
NUT,10MM
€ 5.00
35
42041046
ref: 35
STD
REAR SPROCKET 45T
€ 56.00
35
42041047
ref: 35
REAR SPROCKET 43T
€ 52.50
35
42041077
ref: 35
REAR SPROCKET 47T
€ 45.50
36
92057010
ref: 36
530 X 102L
CHAIN ASSY-DRIVE
€ 58.00
37
92058015
ref: 37
JOINT-DRIVE CHAIN
€ 8.00
